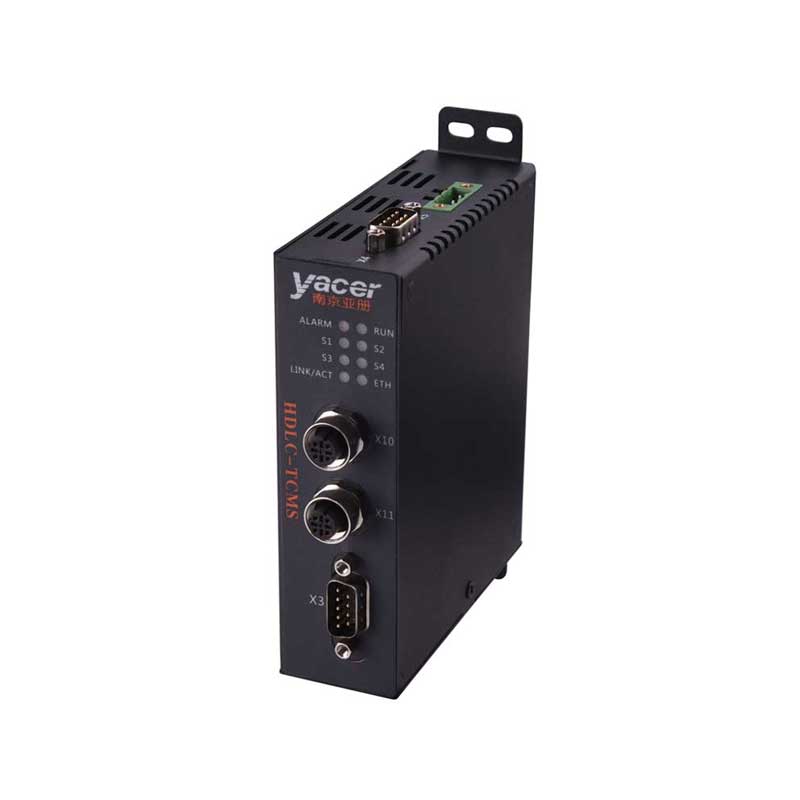

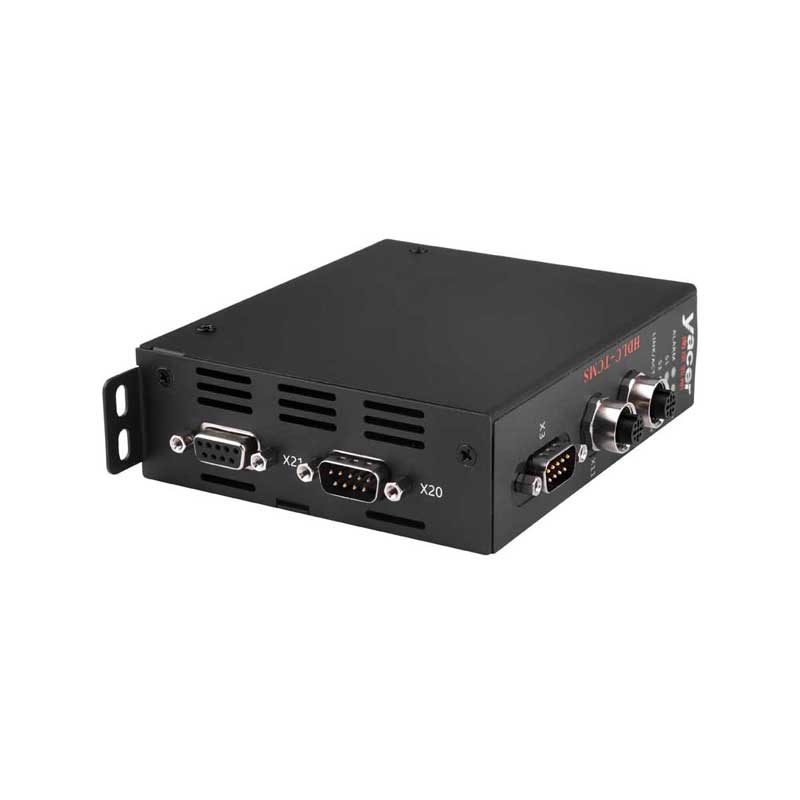

HDLC-TCMS TCN Protocol Converter
  • Two 10/100M Ethernet interfaces, supporting Ethernet switching and dual-IP
  • S1, S2: Two RS-485 synchronous and asynchronous serial ports with isolation
  • S3 expansion interface: Optional RS-232, RS-422 or RS-485 serial port
  • S4 expansion interface: Optional RS-422, RS-485 serial port or CAN bus
  • All serial ports support synchronous HDLC and asynchronous UART
  • Support NRZ, NRZI, DBPL, Manchester and differential Manchester coding formats
  • On-board application CPU for secondary programming
  • Perfect isolation protection
  • Industrial wide temperature
Overview

Introduction

The Yacer HDLC-TCMS protocol converter provides two 100M Ethernet interfaces, two RS-485 synchronous & asynchronous serial ports and two expansion interfaces to implement conversion between synchronous HDLC, asynchronous UART, CAN bus and Ethernet.

Industrial wide temperature, complete isolation and protection, compact size, suitable for train communication network.

On-board application CPU is used for secondary development of on-board programming by user, and seamlessly integrates data processing a communication.



Applications

  • Protocol conversion between Synchronous and Asynchronous Serial interface

  • Protocol conversion between Serial and Ethernet interface

  • Protocol conversion between CAN and Serial interface

  • Protocol conversion between CAN and Ethernet interface

  • Train Communication Network (TCN)

  • Train Control and Management System (TCMS)

  • Embedded development and application



Features

  • Two 10/100M Ethernet interfaces, supporting Ethernet switching and dual-IP

  • S1, S2: Two RS-485 synchronous and asynchronous serial ports with isolation

  • S3 expansion interface: Optional RS-232, RS-422 or RS-485 serial port

  • S4 expansion interface: Optional RS-422, RS-485 serial port or CAN bus

  • All serial ports support synchronous HDLC and asynchronous UART

  • Support NRZ, NRZI, DBPL, Manchester and differential Manchester coding formats

  • On-board application CPU for secondary programming

  • Perfect isolation protection

  • Industrial wide temperature



Specifications

Item

Parameters

Details

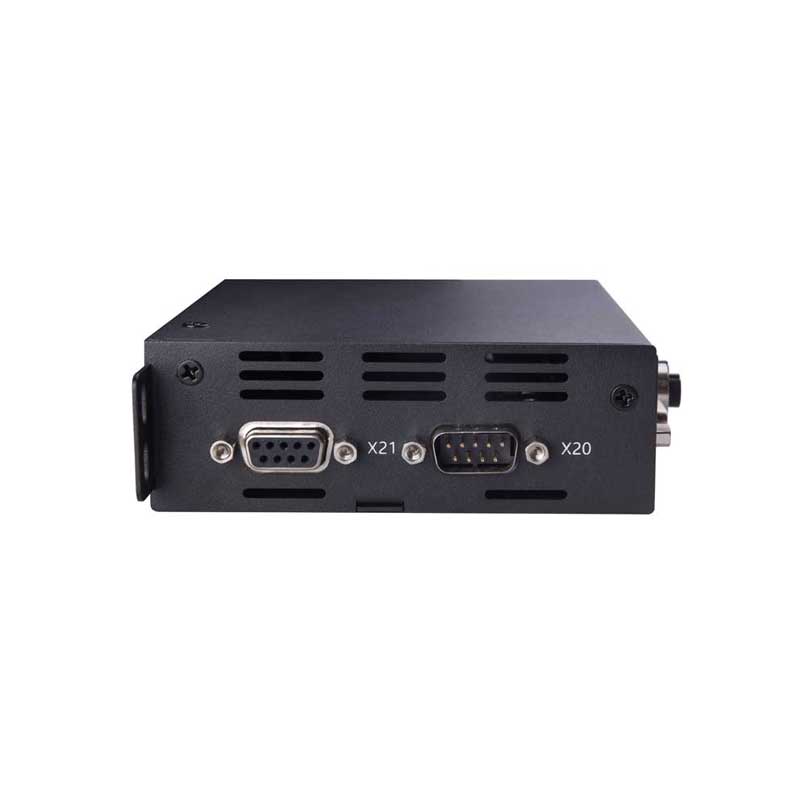

S1,S2 RS-485 Interface

Connector

1 x male D-Sub 9 (X20) + 1 x female D-Sub 9 (X21)

Interface type

RS-485 half-duplex isolated serial

Working mode

Synchronous HDLC, Asynchronous UART

Coding formats

NRZ, NRZI, DBPL (Differential Bi-Phase Level), Manchester, Differential Manchester

Baud rate

Synchronous: ≤ 6 Mbps

Asynchronous: ≤ 3 Mbps

Isolation

2.5 kVrms

S3 Expansion Interface

Connector

1 x male D-Sub 9 (X3)

Optional type

RS-232 full-duplex serial

RS-422 full-duplex isolated serial

RS-485 half-duplex isolated serial

Working mode

Synchronous HDLC, Asynchronous UART

Coding formats

NRZ, NRZI, DBPL (Differential Bi-Phase Level), Manchester, Differential Manchester

Baud rate

Synchronous ≤ 6 Mbps

Asynchronous ≤ 3 Mbps

Isolation

2.5 kVrms

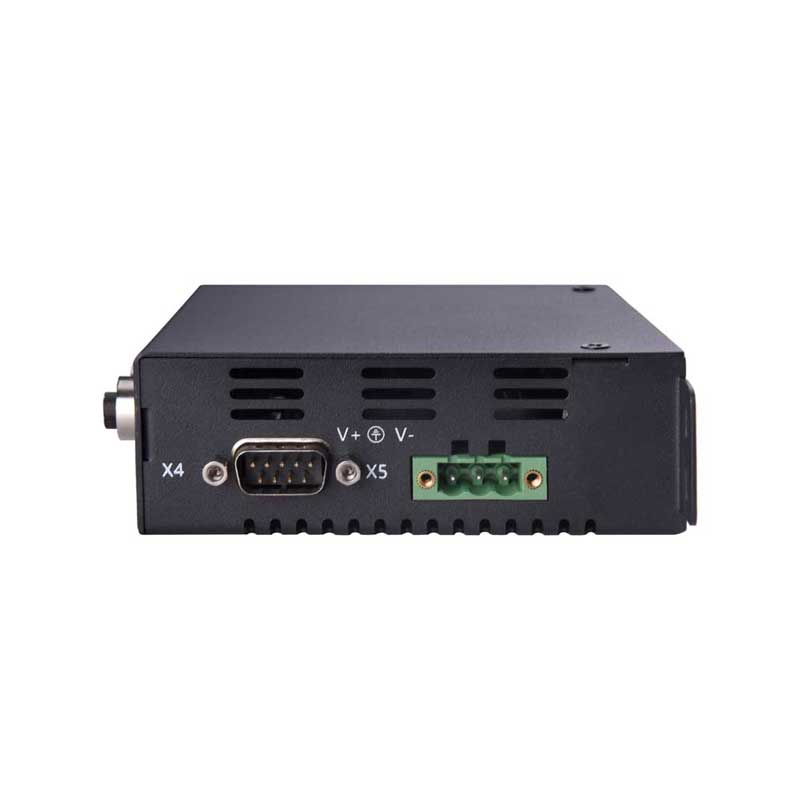

S4 Expansion Interface

Connector

1 x male D-Sub 9 (X4)

Optional type

CAN bus isolation interface (CAN2.0A, CAN2.0B, ISO 11898)

RS-422 full-duplex isolated serial

RS-485 half-duplex isolated serial

Working mode

Synchronous HDLC, Asynchronous UART

Coding formats

NRZI, DBPL (Differential Bi-Phase Level), Manchester, Differential Manchester

Baud rate

Synchronous ≤ 6 Mbps

Asynchronous ≤ 3 Mbps

CAN: 50 Kbps ~ 1 Mbps

Isolation

2.5 kVrms

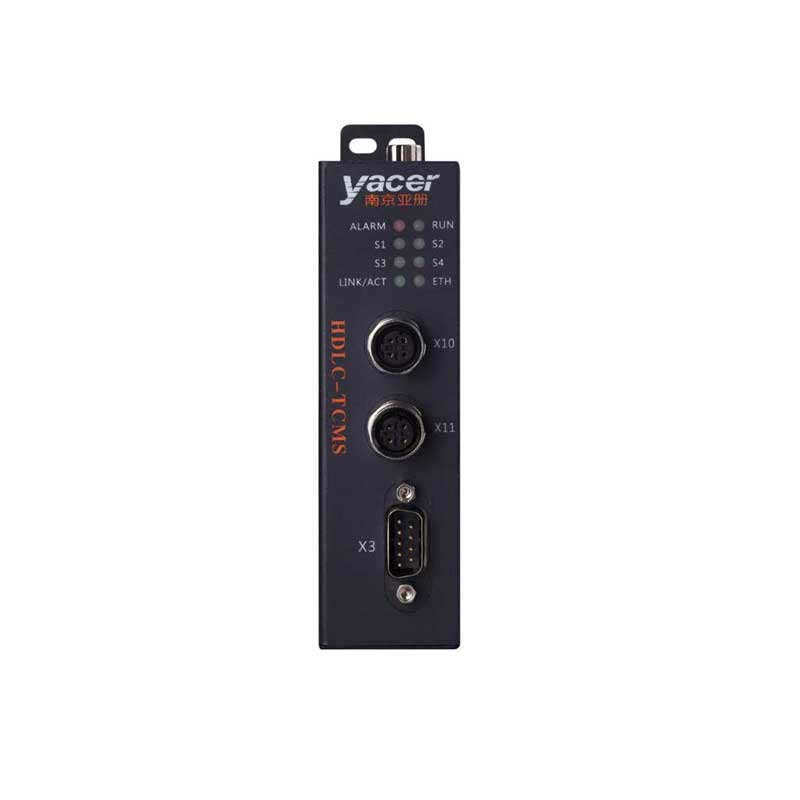

ETH1, ETH2 Ethernet Interface

Connector

2 x M12 with D-coding

Function

Ethernet switching, dual-IP function

Rate

10/100 Mbps, supporting MDI / MDIX adaptation

Protocol

TCP/IP

Programming interface

UDP Server, UDP Client

Unicast/Multicast/Broadcast

Isolation

1.5 kVrms

Secondary development On-board programming

Application CPU

ARM Cortex-A9, main frequency 250 MHz

Memory

DDR3, 128MB

Flash

6 MB version space, 1 MB configuration space

Data interface

Interacting with communication CPU based on shared memory

Configuration Management

Configuration tool

yacer-DMS configuration management software

Console interface

Ethernet Interface or Serial

Power Requirements

Power Supply

LV: Nominal 24V, tolerance 9 ~ 36VDC

MV: Nominal 36V, 48V, tolerance 18 ~ 75VDC

HV: Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC

Isolation

1.5 kVrms

Protection

Anti-reverse protection

Power consumption

< 3 W

Connector

3 pin connector with 5mm pitch

(Phoenix Contact MSTB 2,5 / 3-GF or equivalent)

Mechanical Characteristics

Dimensions

H x W x D: 124 mm x 36 mm x 104 mm

Weight

500g

Operating Environment

Operating temperature

-40 ~ +70℃

Storage temperature

-40 ~ +85℃

Operating humidity

5 ~ 95% RH (no condensation)

Order Information

HDLC-TCMS

-

4

3

5

-

LV

400 series products:

  Two 100M Ethernet interfaces

  Two RS-485 serial ports









S3 expansion interface:







  • None

0







  • Full-duplex RS-232

3







  • Full-duplex RS-422

4







  • Half-duplex RS-485

5







S4 expansion interface:





  • None

0





  • Full-duplex RS-422

4





  • Half-duplex RS-485

5





  • CAN bus interface

6





Supply voltage range:

  • Nominal 24V, tolerance 9 ~ 36VDC

LV

  • Nominal 36V, 48V, tolerance 18 ~ 75VDC

MV

  • Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC

HV



  • Product model configured through serial port, add serial port number to suffix, such as HDLC-TCMS-435-LV1 indicates configuration management through serial port S1.

  • Model requiring password protection for configuration management, suffix addition P, such as HDLC-TCMS-435-LVP.
