HDLC-ETH Serial Ethernet Converter

Air Traffic Control (ATC) Communication Measurement and Control Communication
  • 1, 2x Ethernet 100M interface
  • 4x synchronous/ asynchronous serial port, optional RS232 or RS-422
  • Full duplex, half duplex support
  • Support synchronous HDLC protocol, asynchronous UART working mode
  • Coding format support NRZ, NRZI, DBPL, Manchester, differential Manchester
  • 15KV ESD protection
  • Industrial grade wide temperature
Overview

Introduction

The Yacer HDLC-ETH protocol converter provides 4 synchronous / asynchronous serial port and 1 or 2 10/100M adaptive Ethernet port to realize the protocol conversion between serial and Ethernet.

Compact size, industrial grade wide temperature.



Applications

  • Serial to Ethernet, Ethernet to serial

  • Synchronous serial port, asynchronous serial port to convert each other

  • Serial port one way into multiple ways

  • High-speed synchronous serial data transmission and conversion

  • Satellite, radio, aerospace measurement and control data acquisition and transmission

  • ATC Surveillance System, ADS-B, Secondary radar (SSR) signal connection and output

  • Air Traffic Control Automation System (ATC), Air Traffic Management (ATM)

  • ATC radar data recording and playback



Specifications

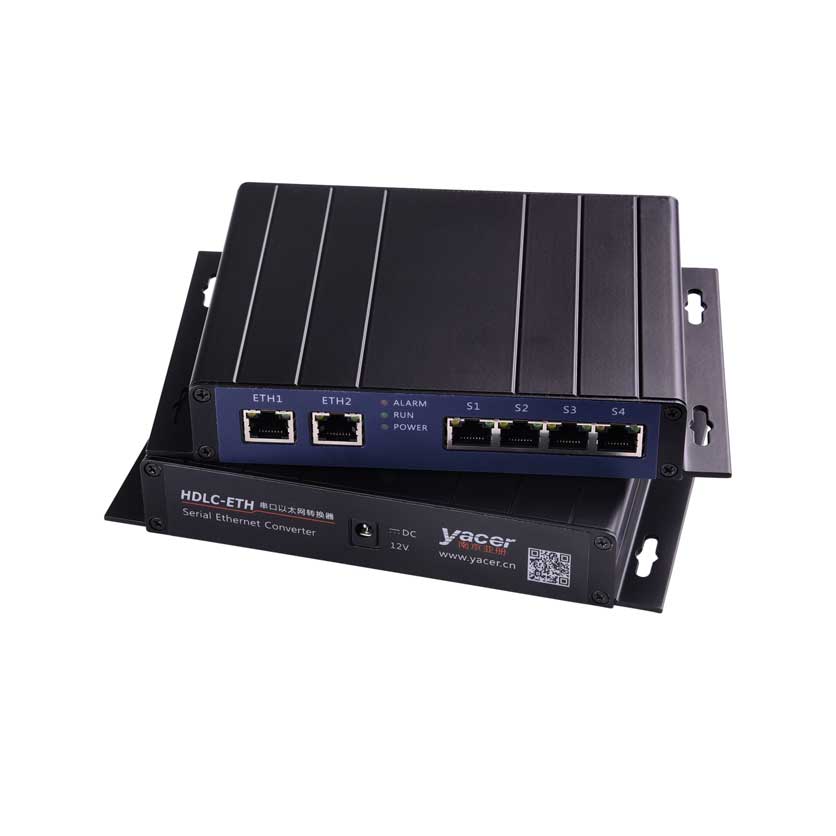

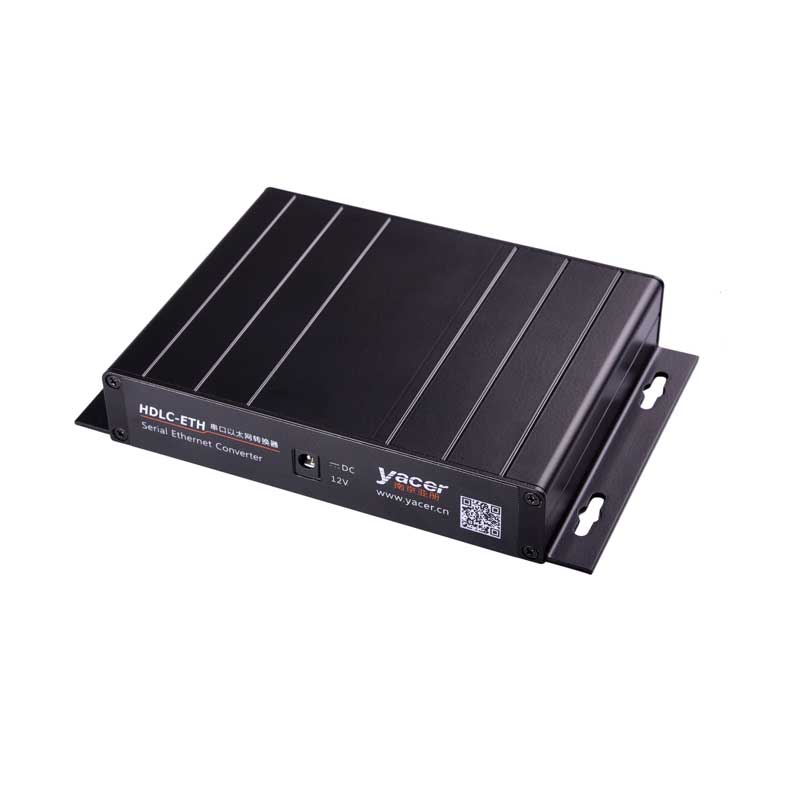

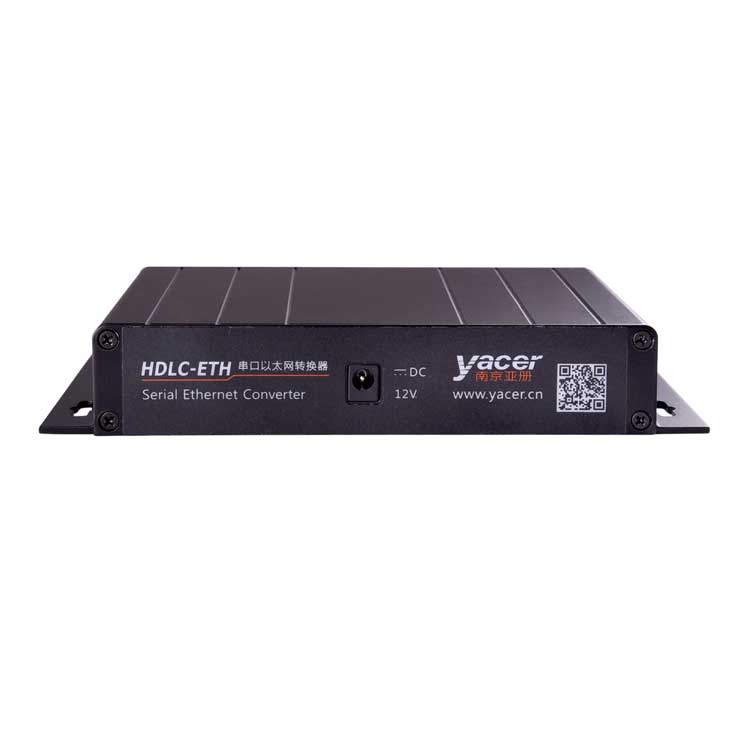

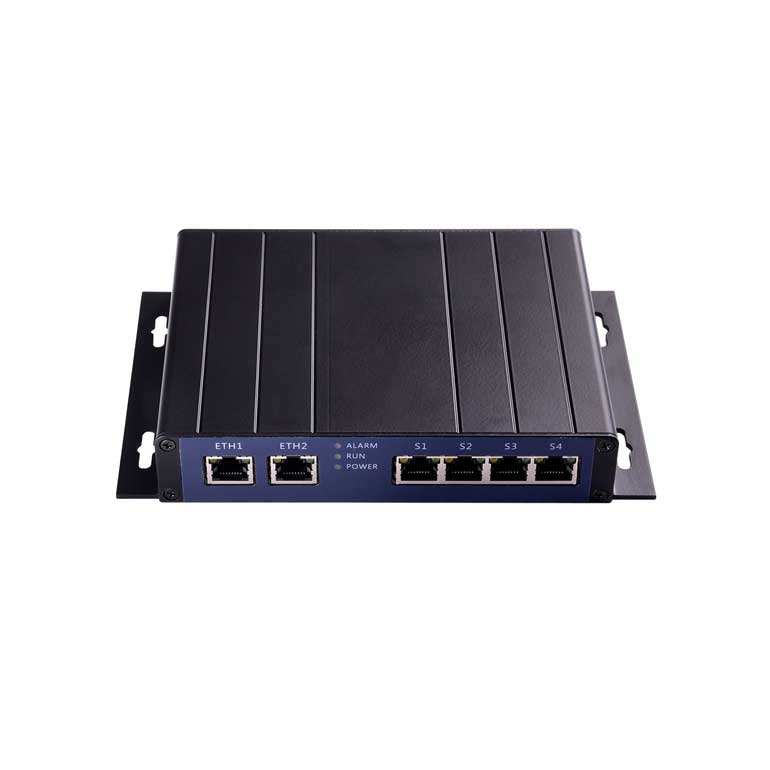

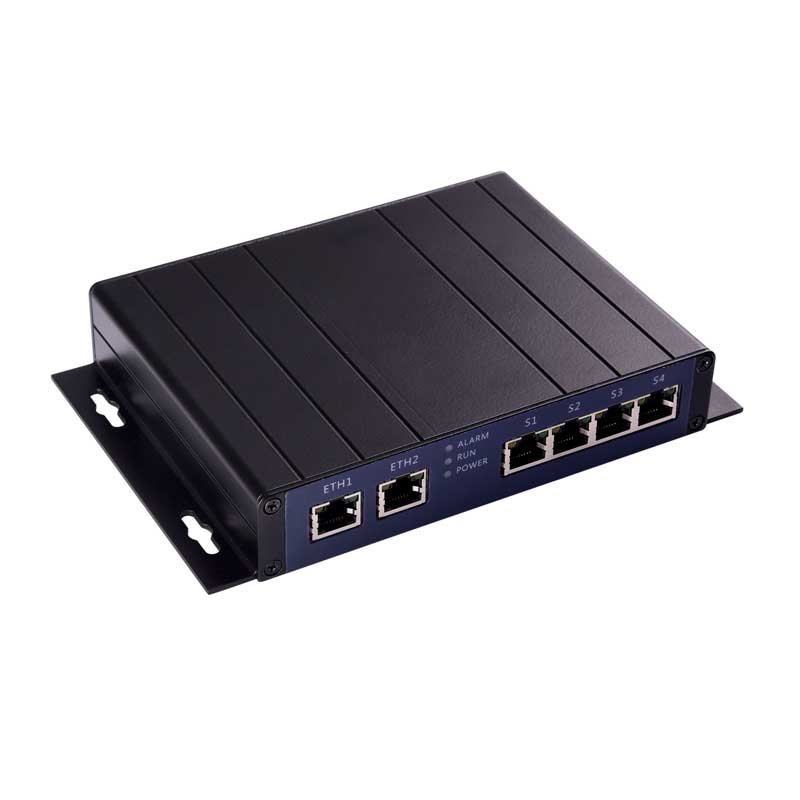

HDLC-ETH-200/400: RS-232 Serial Port

Item

Parameters

Details

Serial Port

Quantity

4 x RJ-45

Working mode

Synchronous HDLC, Asynchronous UART

Encoding format

NRZ, NRZI, DBPL (Differential Bi-Phase Level), Manchester, Differential Manchester

Interface type

RS-232

Duplex mode

Full duplex

Baud rate

≤ 250 Kbps

HDLC frame length

≤ 1470 bytes

Synchronous clock

General, Master, Slave( external clock )

ESD protection

± 15 KV

Ethernet Interface

Quantity

2 x RJ-45

Rate

10/100 Mbps, supporting MDI / MDIX adaptation

Protocol

TCP/IP

Programming interface

UDP Server, UDP Client

Support unicast/multicast/broadcast

Configuration Management

Configuration interface

Ethernet interface

Configuration tool

yacer-DMS configuration management software

Power Requirements

Input voltage

+12 VDC

Power consumption

< 3 W

Power connector

DC 5.5 x 2.1 mm connector

Mechanical Characteristics

Dimensions

H x W x D: 32 mm x 193.55 mm x 124 mm

Weight

450 g

Operating Environment

Operating temperature

-40 ~ +75℃

Storage temperature

-40 ~ +85℃

Operating humidity

5 ~ 95% RH (no condensation)

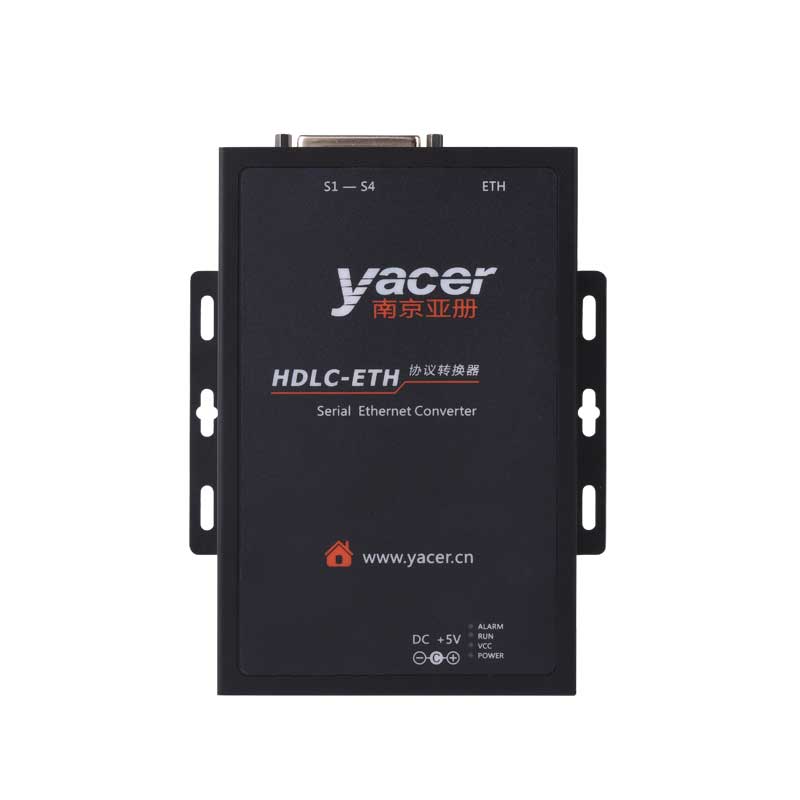

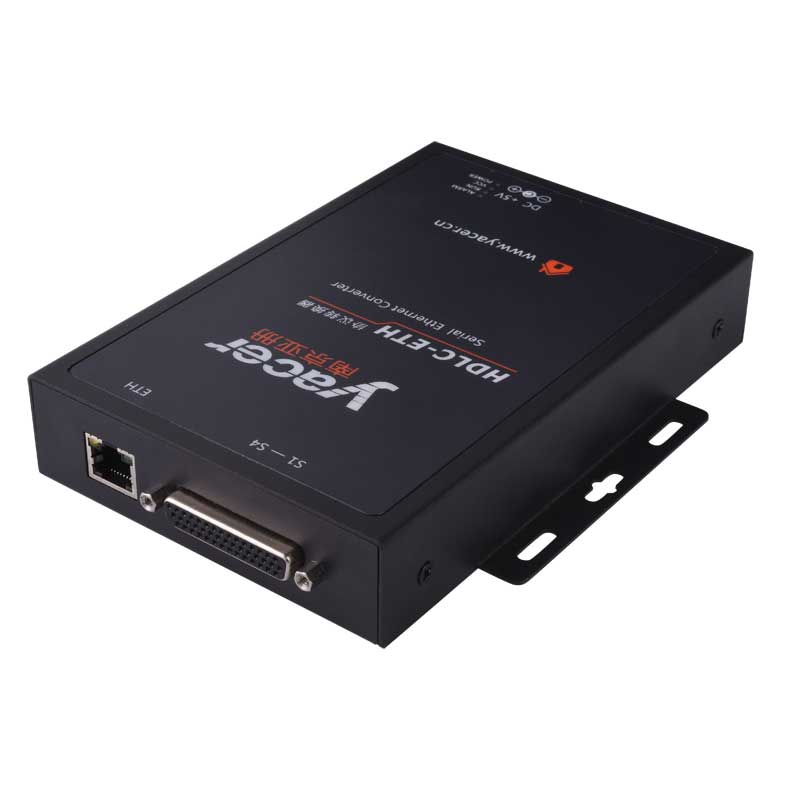

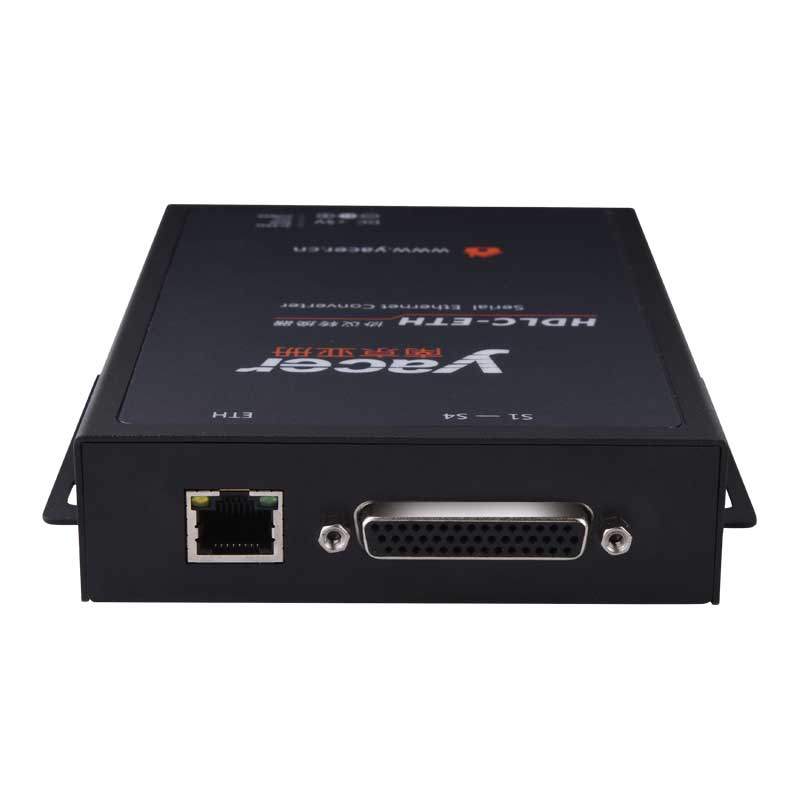

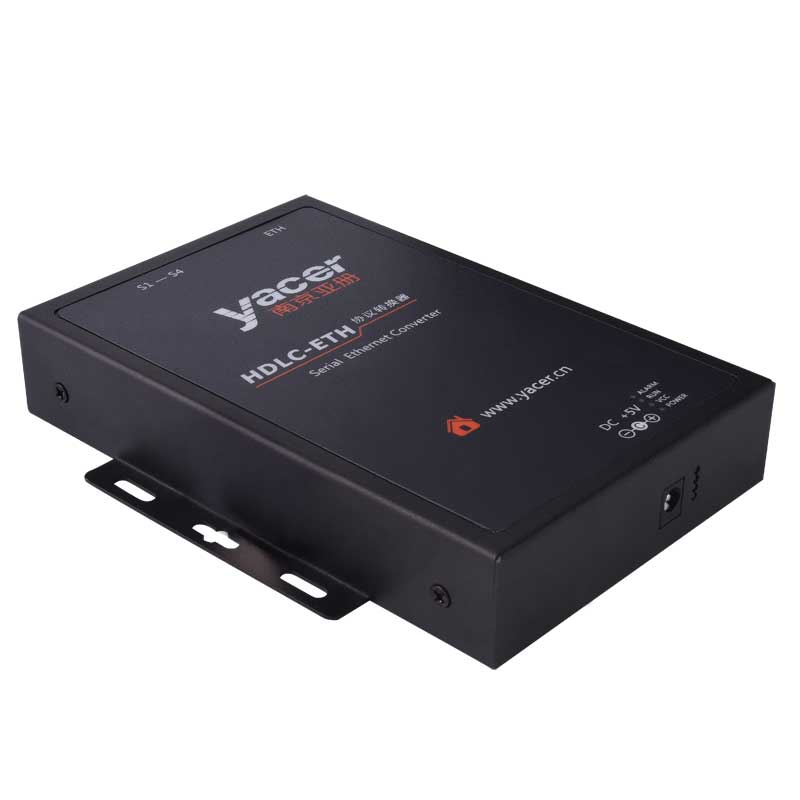

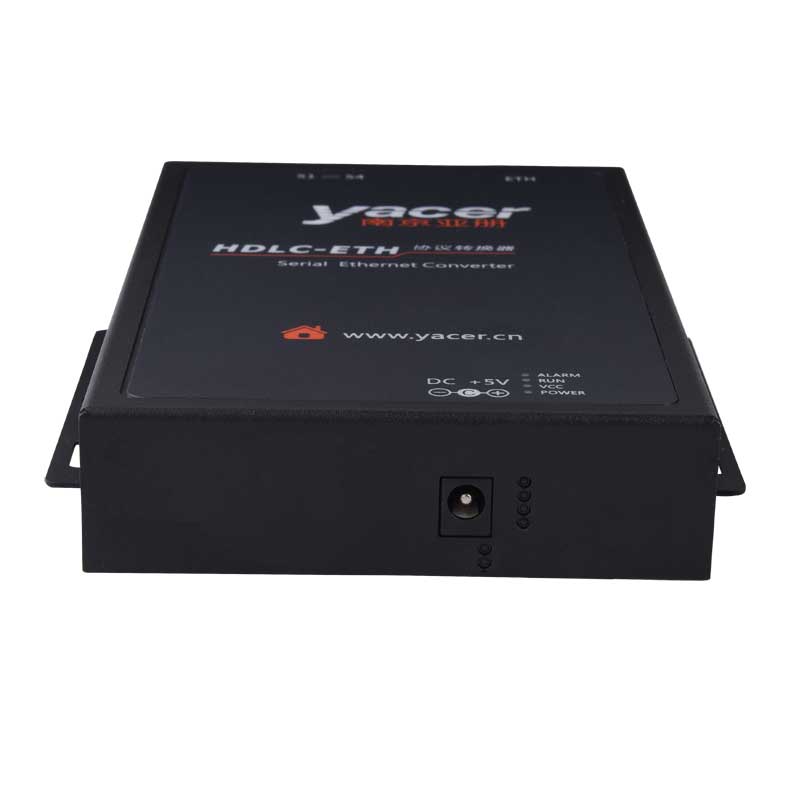

HDLC-ETH-204/404: RS-422/485 Serial Port

Item

Parameters

Details

Serial Port

Quantity

4

Interface

1 x female D-Sub 44

Working mode

Synchronous HDLC, Asynchronous UART, Synchronous Bitstream

Encoding format

NRZ, NRZI, DBPL (Differential Bi-Phase Level), Manchester, Differential Manchester

Interface type

RS-422 full duplex, RS-485 half duplex

Duplex mode

Full duplex, Half duplex

Baud rate

Synchronous NRZ: ≤ 12 Mbps, Synchronous Other: ≤ 6 Mbps, Asynchronous: ≤ 1 Mbps

HDLC frame length

≤ 1470 bytes

Synchronous clock

General, Master, Slave( external clock )

ESD protection

± 15 KV

Ethernet Interface

Quantity

1 x RJ-45

Rate

10/100 Mbps, supporting MDI / MDIX adaptation

Protocol

TCP/IP

Programming interface

UDP Server, UDP Client

Support unicast/multicast/broadcast

Configuration Management

Configuration interface

Ethernet interface

Configuration tool

yacer-DMS configuration management software

Power Requirements

Input voltage

+5 VDC

Power consumption

< 3 W

Power connector

DC 5.5 x 2.1 mm connector

Mechanical Characteristics

Dimensions

H x W x D: 30 mm x 132 mm x 165 mm (including lugs)

Weight

600 g

Operating Environment

Operating temperature

-40 ~ +75℃

Storage temperature

-40 ~ +85℃

Operating humidity

5 ~ 95% RH (no condensation)

Order Information

Product Model

Serial Port

Ethernet Interface

Power Supply

HDLC-ETH-200

2 x RS-232 synchronous serial ports + RS-232 asynchronous serial port

2 x 10/100M

+12 VDC

HDLC-ETH-400

4 x RS-232 synchronous serial ports, 2 of which support asynchronous

2 x 10/100M

+12 VDC

HDLC-ETH-204

2 x RS-422 synchronous serial ports + RS-422 asynchronous serial port

1 x 10/100M

+5 VDC

HDLC-ETH-404

4 x RS-422 synchronous serial ports, 2 of which support asynchronous

1 x 10/100M

+5 VDC
