Overview

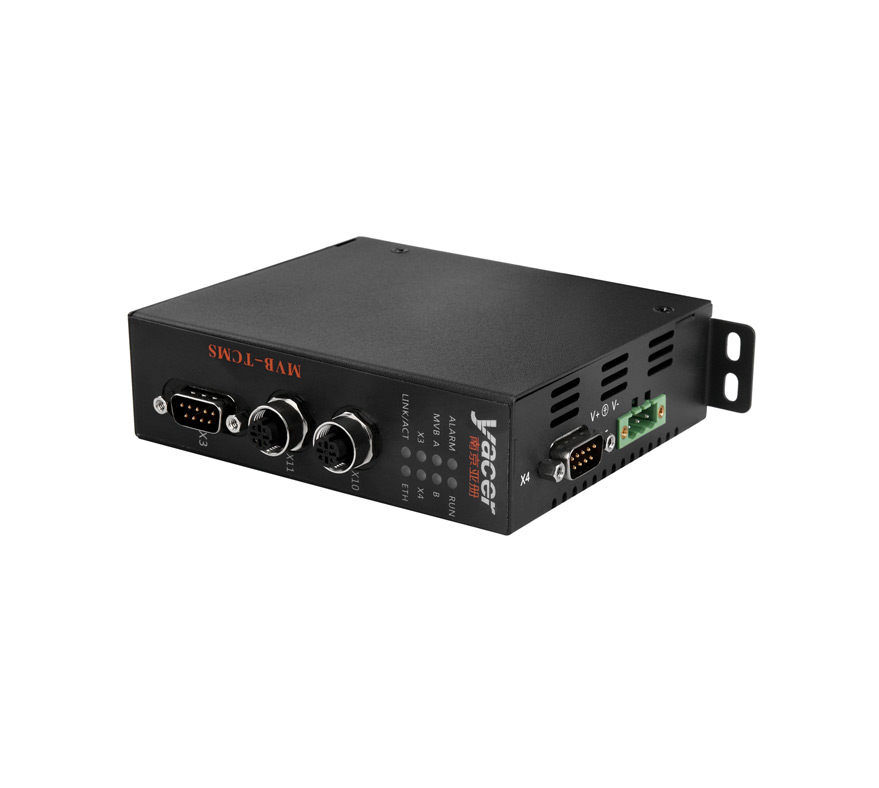

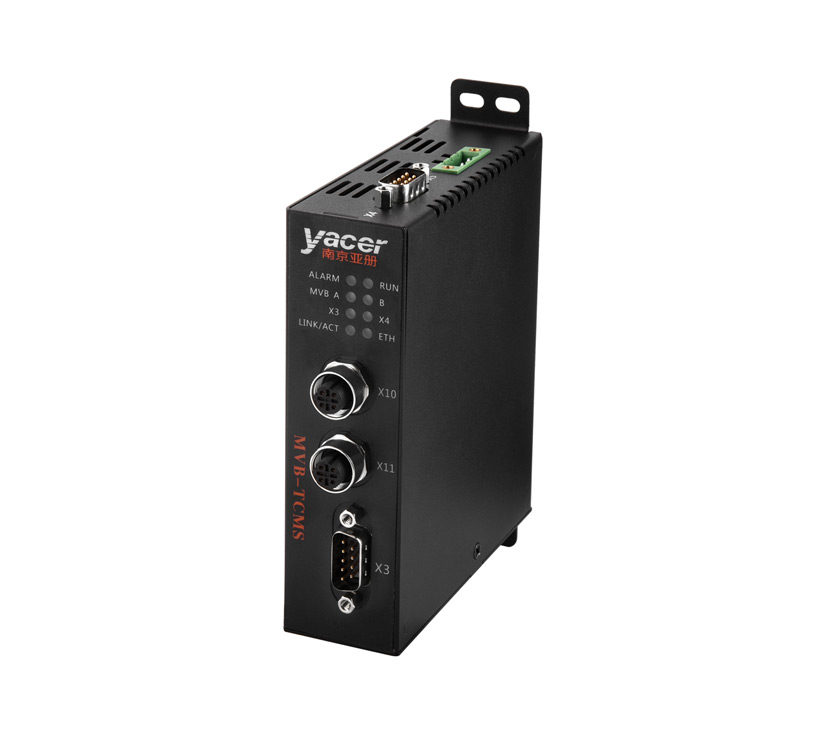

Introduction

The Yacer MVB-TCMS TCN protocol converter provides MVB interface, two 100M Ethernet interfaces and two extended interfaces to implement protocol conversion between MVB, serial port, CAN bus and Ethernet, and optionally supports TRDP protocol.

Industrial wide temperature, complete isolation and protection, compact size, suitable for train communication network.

Applications

• Protocol conversion between MVB and Ethernet interface;

• Protocol conversion between MVB and serial port;

• Protocol conversion between serial port and Ethernet interface;

• Protocol conversion between CAN and Ethernet interface;

• Protocol conversion between TRDP and UDP;

• Protocol conversion between TRDP and serial port;

• Train Control and Management System (TCMS);

• Train Communication Network (TCN);

• Embedded application and development

Features

• MVB redundant interface with optional ESD +, EMD media interface;

• Compliance with IEC61375 standard;

• Two 10/100M Ethernet interfaces, optional supporting TRDP protocol;

• X3 extended interface: Optional RS-232, RS-422 or RS-485 serial port;

• X4 extended interface: Optional RS-422, RS-485 serial port or CAN bus interface;

• Perfect isolation protection, industrial wide temperature.

Specifications

Item	Parameters	Details

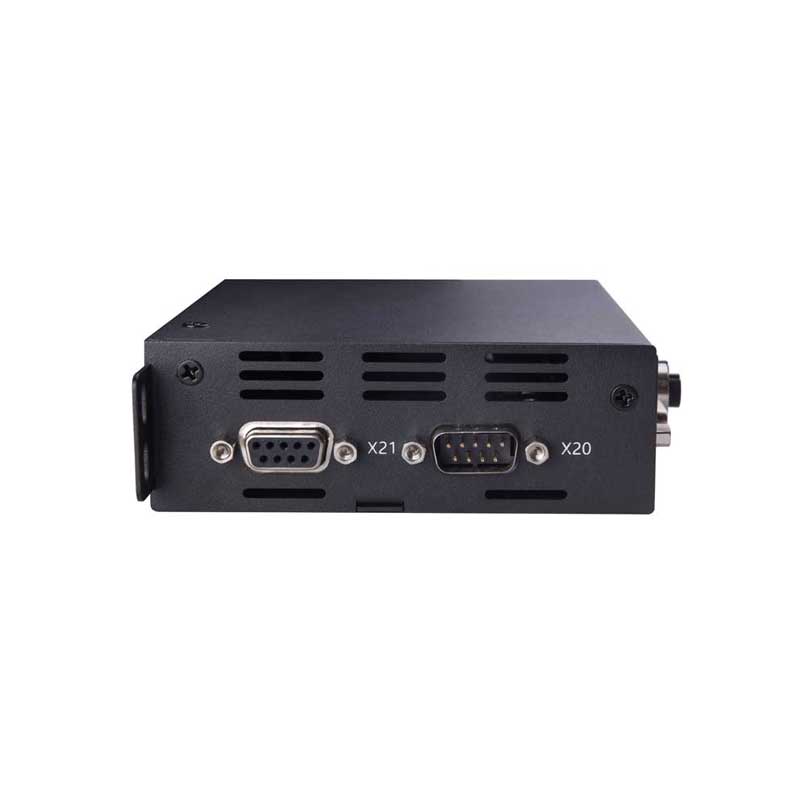

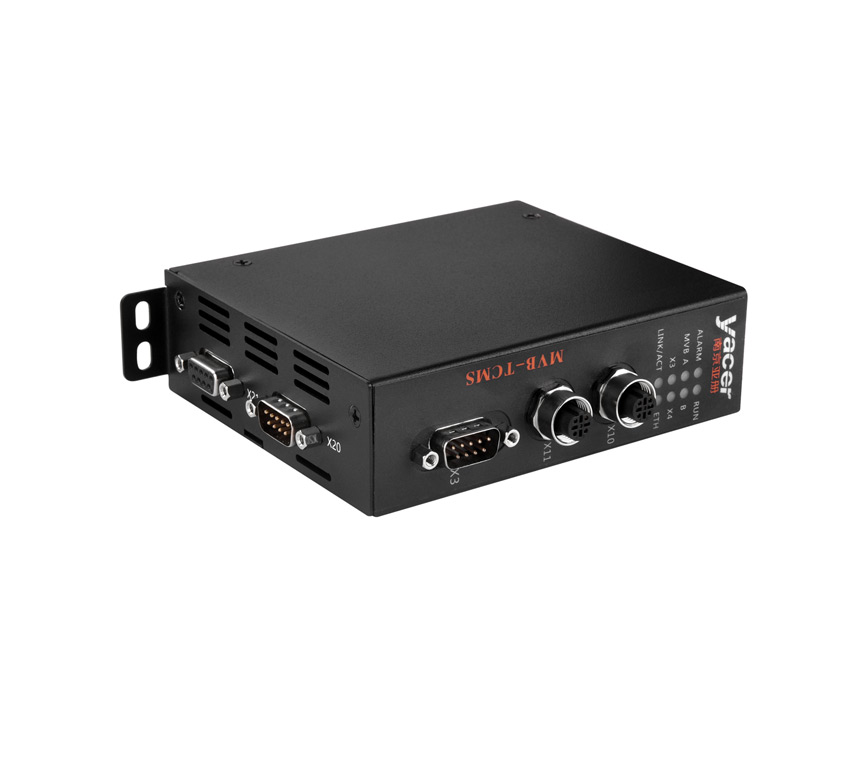

MVB Interface S1	Connector	1 x male D-Sub 9 (X20) + 1 x female D-Sub 9 (X21)
	Media type	Optional EMD, ESD+
	Device class	Class 1
	Device capabilities	Device_Status, Process_Data(PD)
	Number of PD ports	1024
	Isolation	2.5 kVrms
Extended Interface S3	Connector	1 x male D-Sub 9 (X3)
	Interface type (choose one of three)	• RS-232 full-duplex serial port • RS-422 full-duplex isolated serial port • RS-485 half-duplex isolated serial port
	Baud rate	Asynchronous ≤ 1 Mbps
	Isolation	2.5 kVrms
Extended Interface S4	Connector	1 x male D-Sub 9 (X4)
	Interface type (choose one of three)	• CAN bus isolation interface (CAN2.0A, CAN2.0B, ISO 11898) • RS-422 full-duplex isolated serial port • RS-485 half-duplex isolated serial port
	Baud rate	UART ≤ 1 Mbps CAN: 50 Kbps ~ 1 Mbps
	Isolation	2.5 kVrms
Ethernet Interface	Connector	2 x M12 with D-coding
	Function	Supporting Ethernet switching, dual-IP function
	Rate	10/100 Mbps adaptive, 100 Mbps full-duplex
	Protocol	TCP/IP, optional supporting TRDP
	Programming interface	UDP Server, UDP Client Supporting Unicast/Multicast/Broadcast
	Isolation	1.5 kVrms
Configuration Management	Configuration tool	yacer-DMS configuration management software
Configuration Management	Configuration interface	Ethernet Interface, optional serial port
Power Requirements	Power supply	LV: Nominal 24V, tolerance 9 ~ 36VDC MV: Nominal 36V, 48V, tolerance 18 ~ 75VDC HV: Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC
	Isolation protection	>1.5 kV, Anti-reverse protection
	Power consumption	< 3 W

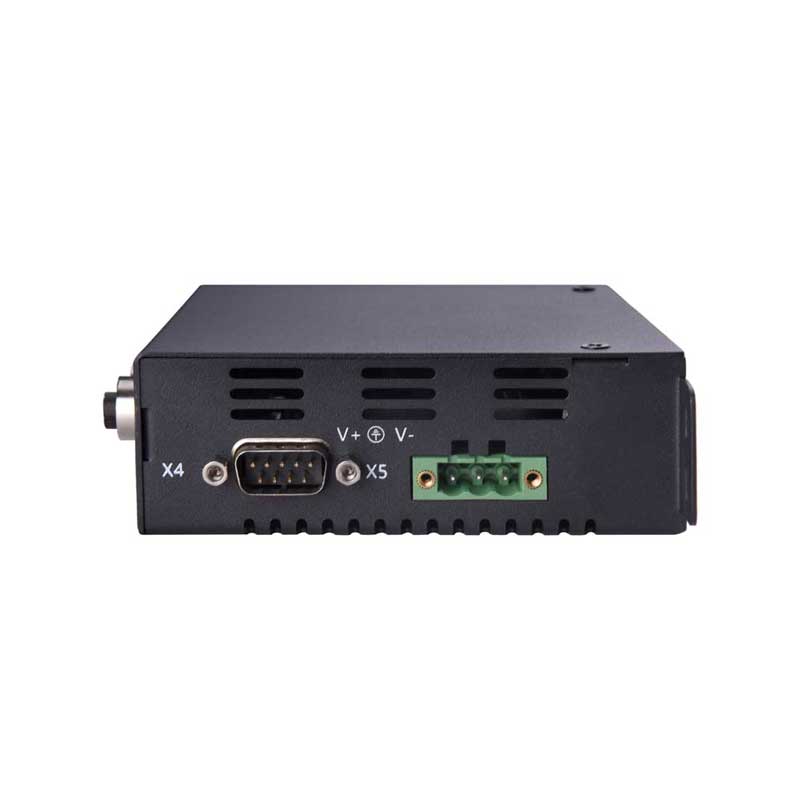

	Power connector	3 pin connector with 5mm pitch (Phoenix Contact MSTB 2,5 / 3-GF or equivalent)
Mechanical Characteristics	Dimensions	H x W x D: 124 mm x 36 mm x 104 mm
Mechanical Characteristics	Weight	500g
Operating Environment	Operating temperature	-40 ~ +70℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)

Order Information

MVB-TCMS	-	M	3	5	U	-LV
MVB Type:
• EMD		M
• ESD+		S
X3 extended interface:
• None			0
• Full-duplex RS-232			3
• Full-duplex RS-422			4
• Half-duplex RS-485			5
X4 extended interface:
• None				0
• Full-duplex RS-422				4
• Half-duplex RS-485				5
• CAN bus interface				6
UDP/TRDP support:
• Ethernet supports UDP protocol					U
• Ethernet supports UDP, TRDP protocol					T
Supply voltage range:
• Nominal 24V, tolerance 9 ~ 36VDC						-LV
• Nominal 36V, 48V, tolerance 18 ~ 75VDC						-MV
• Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC						-HV
MVB D-Sub Bolts:
• M3 Bolts							<empty>
• UNC4-40 Bolts							-UNC

Documentation

MVB-TCMS Datasheet

MVB-TCMS TCN Protocol Converter Datasheet

Tools and software

yacer-DMS Configuration Management Software

Carry out operation monitoring, configuration management, diagnosis test and version update for devices.

MVB-Serial Debugger

Debugging and testing MVB protocol conversion board or device based on computer serial port.

MVB-UDP Debugger

Debugging and testing MVB communication equipment.

MVB-Acquisition Software

MVB data acquisition and display software
