Overview

Introduction

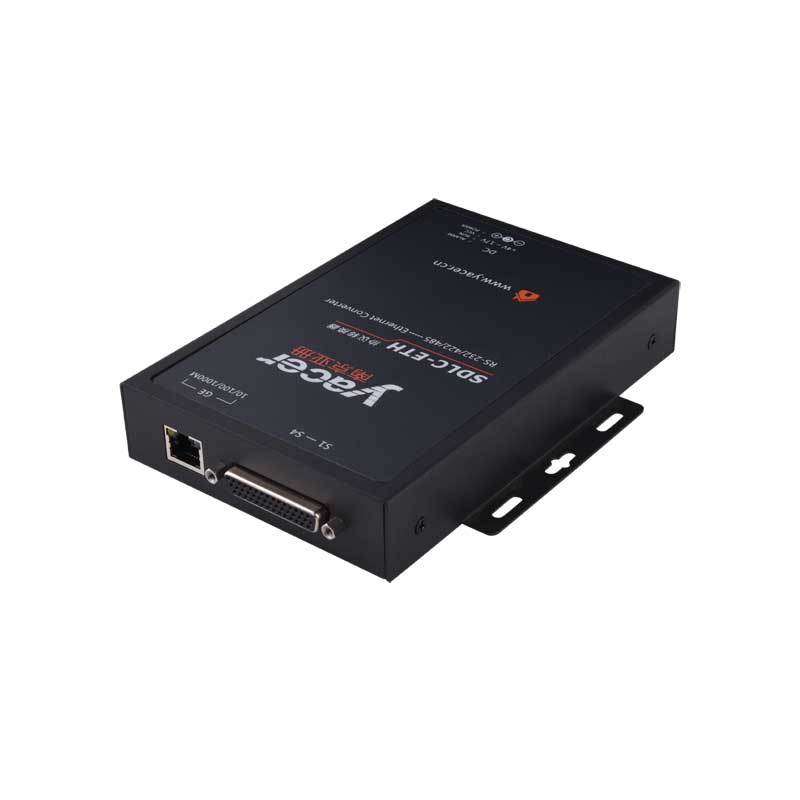

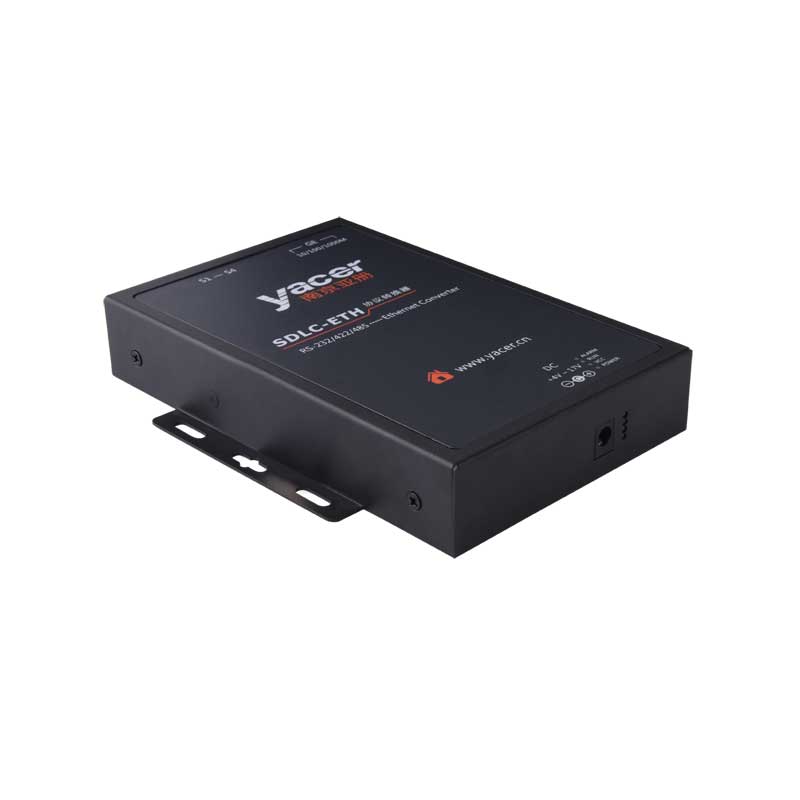

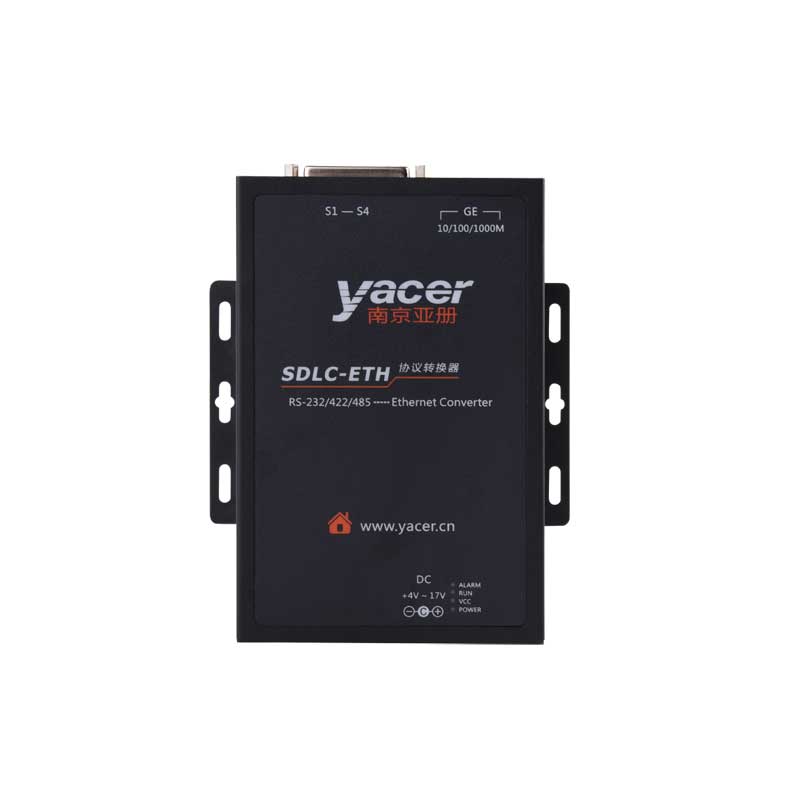

The Yacer SDLC-ETH protocol converter, provides four high-speed RS-232/422/485 multi-protocol serial ports, supports synchronous HDLC/SDLC protocol and asynchronous UART mode. One Gigabit Ethernet port, realizes protocol conversion between serial and ethernet, supports serial Ethernet bridge function.

4~17 VDC wide voltage power supply, industrial wide temperature.

Features

• One 10/100/1000M Ethernet interface

• Four RS-232/422/485 synchronous/asynchronous serial ports, Baud rate up to 20 Mbps

• Synchronous HDLC/SDLC, Asynchronous UART, Bit stream

• NRZ, NRZI, DBPL, Manchester and Differential Manchester encoding formats

• 15 KV ESD protection

• 4 ~17 VDC wide voltage power supply

• Industrial wide temperature

Applications

• Protocol conversion between the serial port and Ethernet

• Ethernet Bridging function between Ethernet interface and serial port

• Conversion between synchronous and asynchronous serial ports

• Multiplexer of serial ports

• High-speed synchronous/asynchronous serial data communication and conversion

• Telemetry, measurement and control data acquisition and transmission

• Satellite, radio data transmission

• Air Traffic Control (ATC), Air Traffic Management (ATM)

Specifications

Serial Ports
Quantity	4

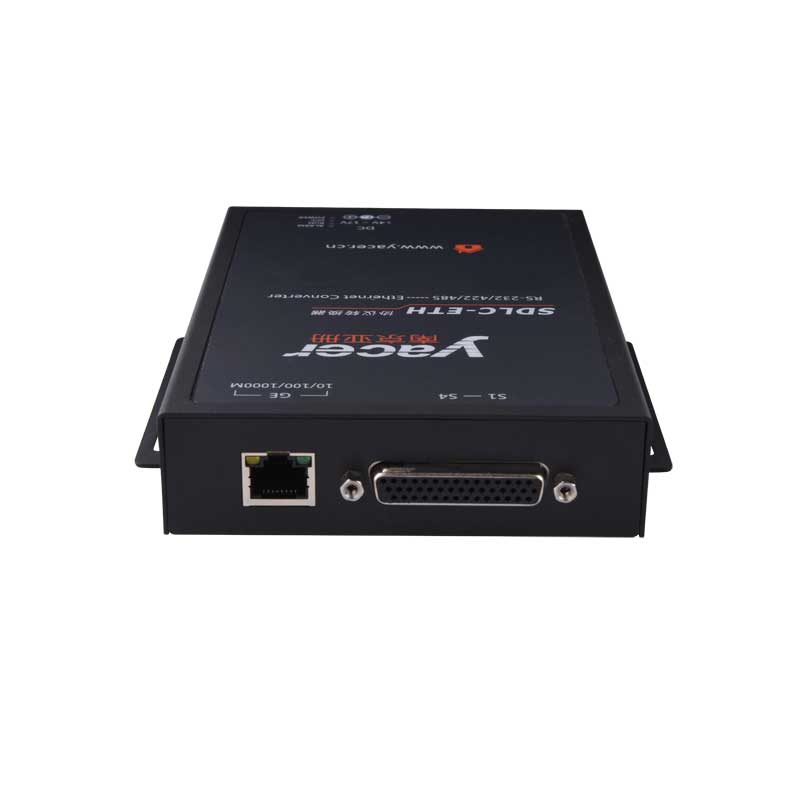

Connector	1 x D-Sub 44 (Female)
Working mode	Synchronous HDLC/SDLC, Asynchronous UART Synchronous Bit stream
Interface type	RS-232, RS-422, RS-485 (Configurable by software)
Duplex mode	Full-duplex, Half-duplex (Configurable by software)
Encoding format	NRZ, NRZI, Manchester, Differential Manchester, DBPL(Differential Bi-Phase Level)
Baud rate	Synchronous: ≤ 20 Mbps Asynchronous: ≤ 3.5 Mbps
Synchronous clock	Normal, slave and master clock mode
ESD protection	± 15 KV
Ethernet Interface
Connector	1 x RJ-45
Speed	10/100/1000 Mbps, Auto MDI/MDI-X
Network protocol	TCP/IP
Programming interface	UDP Server, UDP Client Unicast/Multicast/Broadcast
Ethernet bridge	Serial Ethernet bridge
Configuration Management
Configuration tool	yacer-DMS configuration management software
Configuration interface	Ethernet Interface
Power Requirements
Power Supply	4 ~ 17 VDC
Power consumption	< 3 W

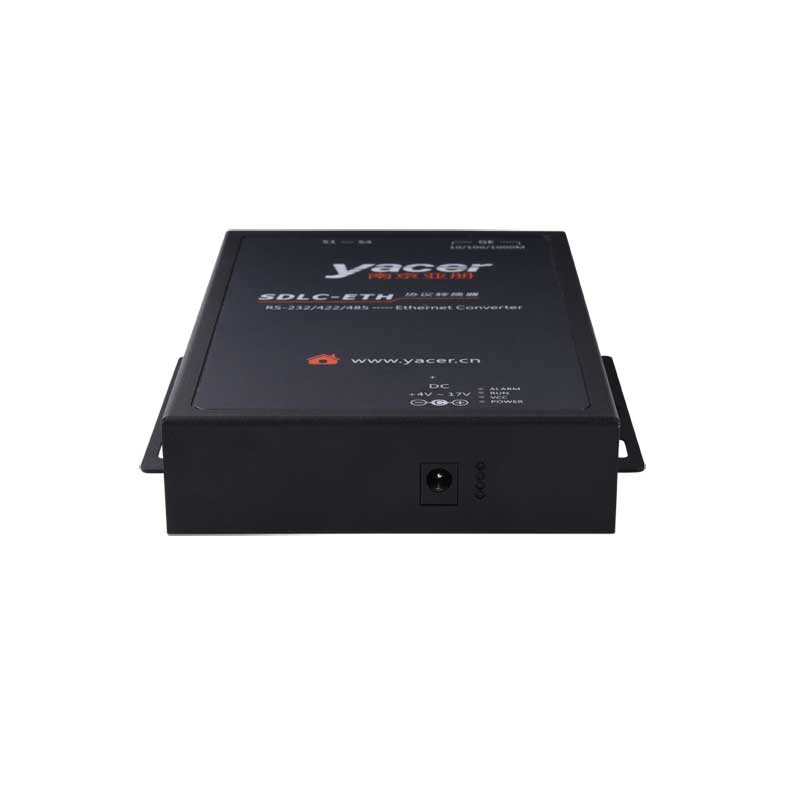

Power interface	DC Power Jack 5.5 x 2.1 mm (Male) Terminal 5.0 mm
Mechanical Characteristics
Dimensions	H x W x D: 30 mm x 132 mm x 165 mm
Weight	600g
Operating Environment
Operating temperature	-40 ~ +70℃
Storage temperature	-40 ~ +85℃
Operating humidity	5 ~ 95% RH (no condensation)
