Overview

Introduction

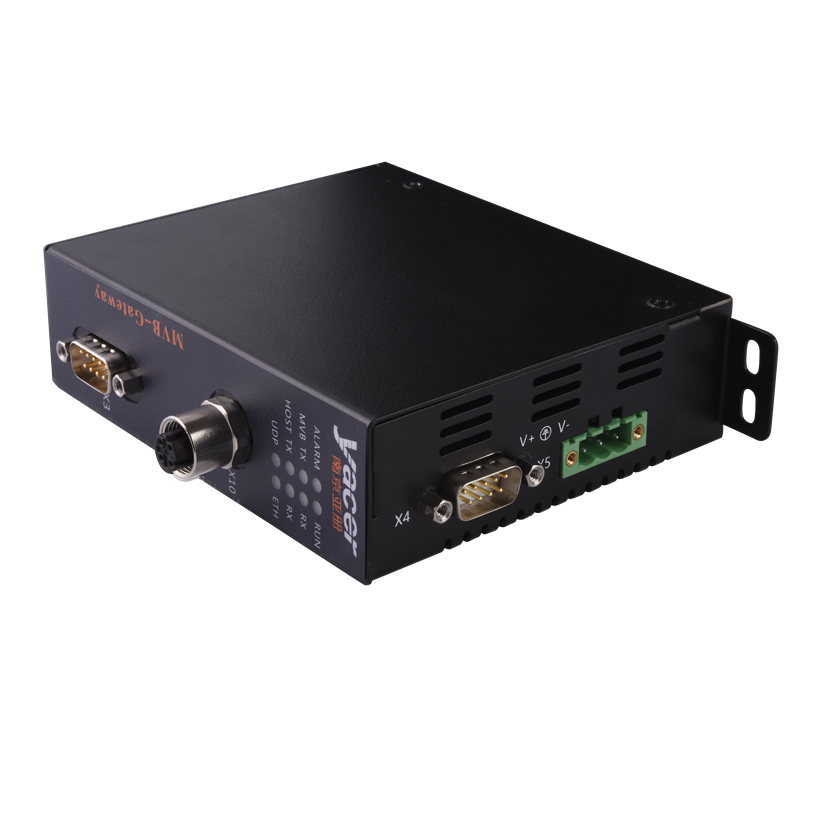

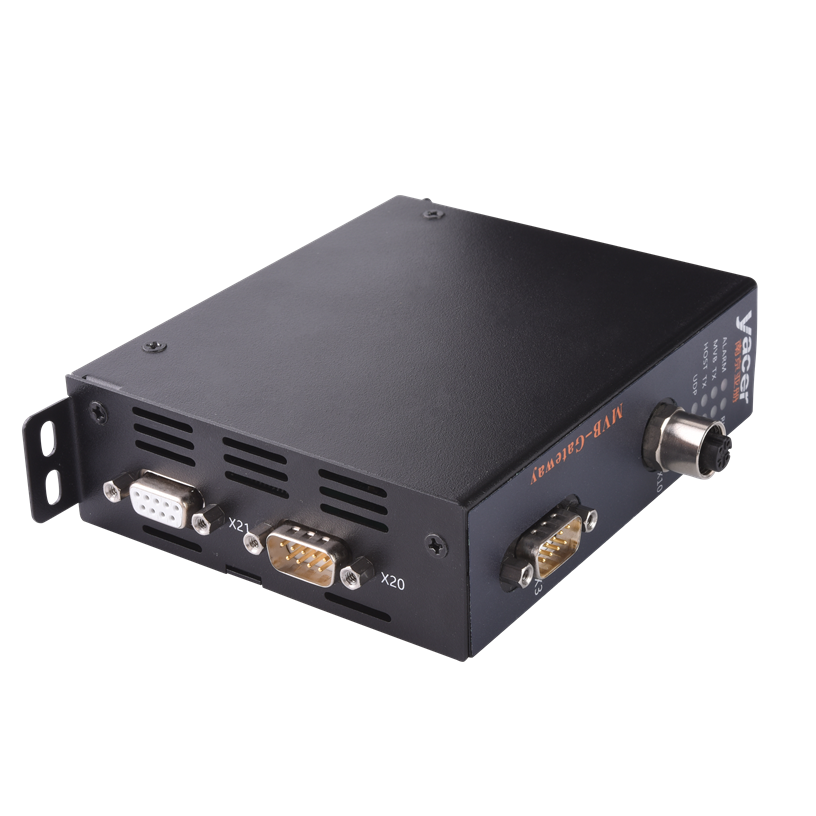

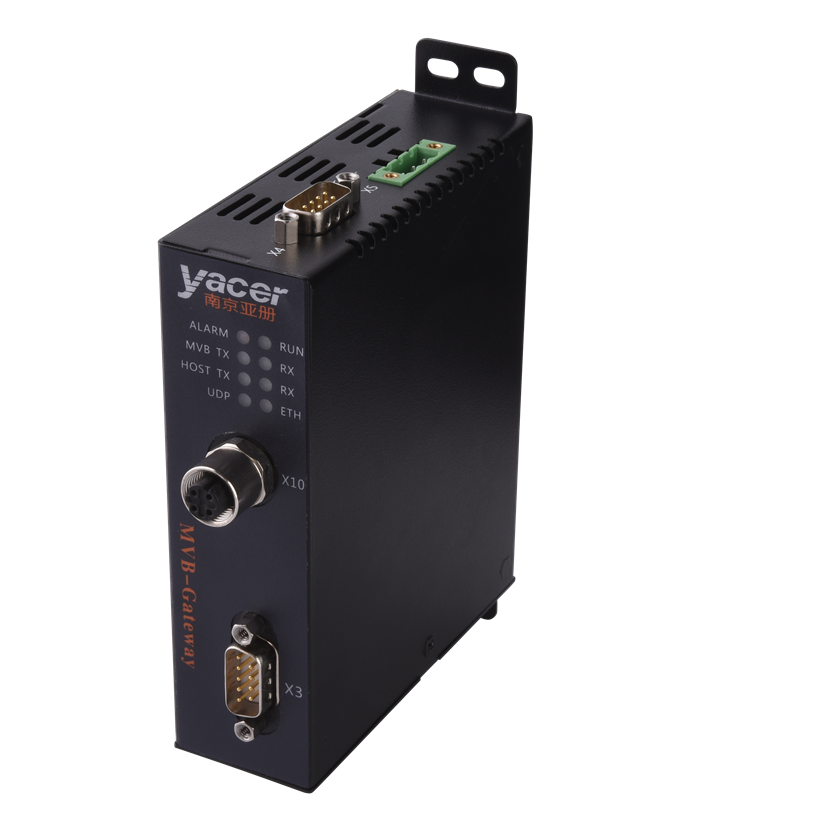

Yacer MVB-Gateway Train Protocol Conversion Gateway provides MVB interface, one 100M Ethernet interface, one serial port, one CAN bus interface, which realizes protocol conversion between MVB, serial port, CAN bus interface, and Ethernet interface.

Industrial wide temperature, complete isolation and protection, compact size, suitable for train communication network.

Applications

• Protocol conversion between MVB and Ethernet interface;

• Protocol conversion between MVB and serial port;

• Protocol conversion between MVB and CAN bus;

• Train Control and Management System (TCMS);

• Train Communication Network (TCN);

• Embedded application and development.

Features

• MVB redundant interface, supports EMD media interface standard;

• Conform to IEC61375 standard;

• One 10/100M Ethernet interface;

• X3 extended interface: optional RS-232, RS-422 or RS-485 serial port;

• X4 extended interface: CAN bus interface;

• Perfect isolation and protection, industrial wide temperature.

Specifications

Item	Parameters	Details
MVB Interface	Connector	1 x male D-Sub 9 (X20) + 1 x female D-Sub 9 (X21)
	Media type	EMD
	Device class	Class 1
	Device capabilities	Device_Status, Process_Data(PD)
	Number of PD ports	32
	Isolation	2.5 kVrms
Serial Port	Connector	1 x male D-Sub 9 (X3)
	Interface type (Three-in-one)	l RS-232 full-duplex serial port l RS-422 full-duplex isolated serial port l RS-485 half-duplex isolated serial port
	Baud rate	≤ 921.6 kbps
	Isolation	2.5 kVrms
CAN Interface	Connector	1 x male D-Sub 9 (X4)
	Interface type	CAN bus isolation interface (CAN 2.0A, CAN 2.0B, ISO 11898)
	Baud rate	50 Kbps ~ 1 Mbps
	Isolation	2.5 kVrms
Ethernet Interface	Connector	1 x M12 with D-coding
	Rate	10/100 Mbps adaptive
	Network protocol	TCP/IP
	Programming interface	UDP Server, UDP Client Support Unicast/Multicast/Broadcast
	Isolation	1.5 kVrms
Configuration Software	Configuration tool	yacer-DMS configuration management software
Configuration Software	Configuration interface	Ethernet interface
Power	Power supply	LV: Nominal 24V, tolerance 9 ~ 36VDC MV: Nominal 36V, 48V, tolerance 18 ~ 75VDC HV: Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC
	Isolation protection	>1.5 kVrms, supporting Anti-reverse protection
	Power consumption	< 3W
	Power connector	3 pin connector with 5mm pitch (Phoenix Contact MSTB 2,5 / 3-GF or equivalent)
Mechanical Characteristics	Dimensions	H x W x D: 124 x 36 x 104 mm
Mechanical Characteristics	Weight	500g
Operating Environment	Operating temperature	-40 ~ +70℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)

Order Information

MVB-Gateway	-	M	3	6	U	-LV
MVB Type:
• EMD		M
Extended Interface X3 Definition:
• None			0
• Full-duplex RS-232 serial port			3
• Full-duplex RS-422 serial port			4
• Half-duplex RS-485 serial port			5
Extended Interface X4 Definition:
• CAN Bus interface				6
Ethernet Protocol:
• Ethernet support for UDP protocol					U
Supply voltage range:
• Nominal 24V, tolerance 9 ~ 36VDC						-LV
• Nominal 36V, 48V, tolerance 18 ~ 75VDC						-MV
• Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC						-HV
MVB Connector Bolt Specifications:
• Metric M3							<empty>
• Imperial UNC4-40							-UNC

Documentation

MVB-Gateway Datasheet

MVB-Gateway Protocol Conversion Gateway Datasheet

Tools and software

yacer-DMS Configuration Management Software

Carry out operation monitoring, configuration management, diagnosis test and version update for devices.

MVB-Serial Debugger

Debugging and testing MVB protocol conversion board or device based on computer serial port.

MVB-UDP Debugger

Debugging and testing MVB communication equipment.

MVB-Acquisition Software

MVB data acquisition and display software
