TRDP Train Ethernet Communication

TRDP-Gateway Protocol Conversion Gateway
  • 2x 100M full-duplex Ethernet interfaces, supporting redundant TRDP protocol
  • 1x 100M auto-negotiation Ethernet interface for TRDP-to-TCP/IP conversion
  • 1x serial port for TRDP to RS-232, RS-422 or RS-485 conversion
  • 1x CAN bus interface for TRDP-to-CAN conversion
  • 24V, 36V, 48V, 72V, 96V, 110V DC power supply can be selected
  • Provides comprehensive configuration and debugging tools for quick start-up
DETAILS
TRDP-UDP Dual Redundant TRDP Embedded Module
  • 2x Ethernet 100M full-duplex interfaces, support TRDP protocol
  • 1x Ethernet 100M adaptive interface, support TCP/IP protocol
  • 1x UART serial port
  • 1x CAN bus interface
  • Support TRDP PD acquisition function
  • +3.3V power supply, low power consumption
  • Small size, industrial wide temperature
DETAILS

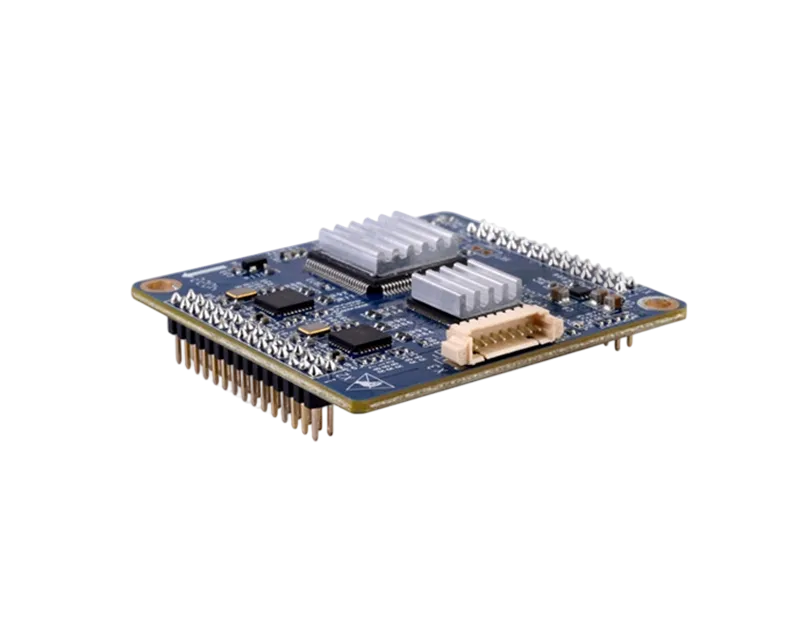

TRDP-MVB Dual Bus Communication Module
  • 2x Ethernet 100M full-duplex interfaces, support TRDP protocol
  • 1x MVB redundant interface, support MVB slave protocol
  • 1x serial port
  • 1x CAN bus interface
  • Open and flexible configuration management
  • +3.3V power supply, low power consumption
  • Small size, Industrial wide temperature
DETAILS

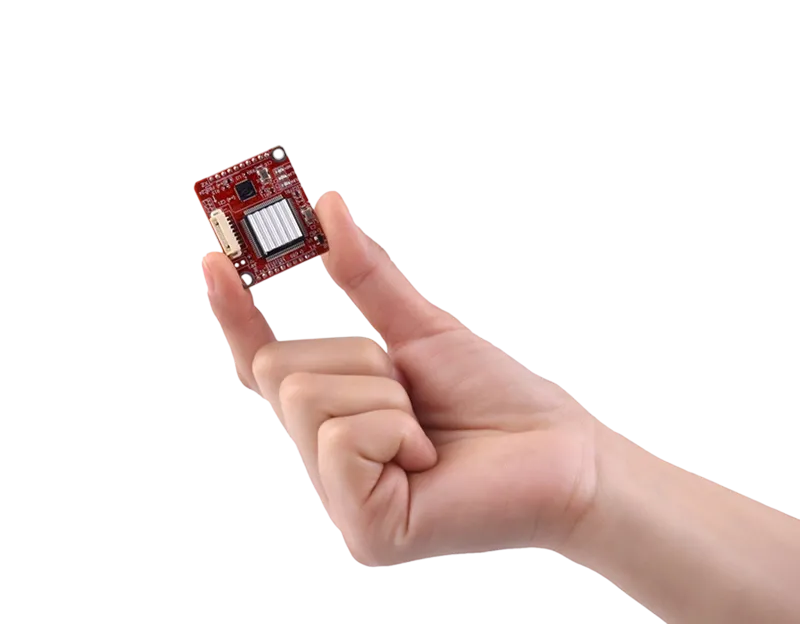

TRDP-CAN-UART Micro TRDP Embedded Module
  • 1x 100M full-duplex Ethernet PHY interface, support TRDP protocol
  • 1x UART serial interface, support serial to TRDP
  • 1x CAN bus interface, support CAN to TRDP
  • Compliant with IEC61375 protocol
  • 30 x 35 mm micro size, 2.0mm pin interface
  • +3.3V power supply, low power consumption
DETAILS
TRDP-ETH Dual Redundant TRDP Ethernet Card
  • 2 Ethernet 100M full-duplex interfaces, support TRDP protocol
  • 1 Ethernet 100M adaptive interface, support TCP/IP protocol
  • X6 extended interface: optional RS-232, RS-422 or RS-485 serial port
  • X4 extended interface: CAN bus interface
  • Supporting TRDP PD acquisition function
  • Perfect isolation protection
  • Industrial wide temperature
DETAILS

TECHNICAL DOCUMENTS

Train Ethernet Connector M12 Interface Definition
Train Ethernet Connector M12 Interface Definition
Safety Design Standards for European Rail Transit Systems
Safety Design Standards for European Rail Transit Systems
Train ECN network multicast address
Train ECN network multicast address
Train Ethernet TRDP Process Data Acquisition Scheme
Train Ethernet TRDP Process Data Acquisition Scheme
