Definition of MVB-EMD Interface and Terminal Matching

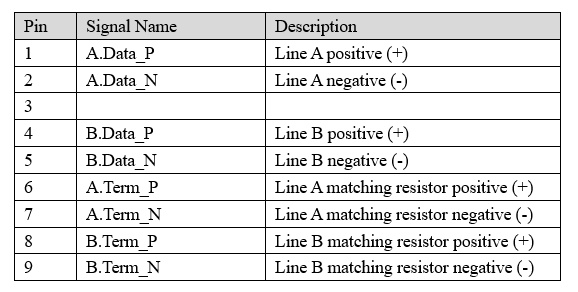

   Pin definition of DB9 connector for MVB Electrical Medium-Distance (EMD) medium:



    When the end device of the MVB bus is connected to the terminator, the following pins of the connector should be short-circuited to achieve terminal matching:

  • 1、6

  • 2、7

  • 4、8

  • 5、9
