MVB Train Communication Network

The leading train MVB protocol (Multifunction Vehicle Bus) network card, mature and stable stereotypes, one piece order, long-term supply guarantee. Free of charge to provide perfect configuration, tuning and testing software tools, the use of flexible, simple operation, to help users quickly realize MVB bus communication.

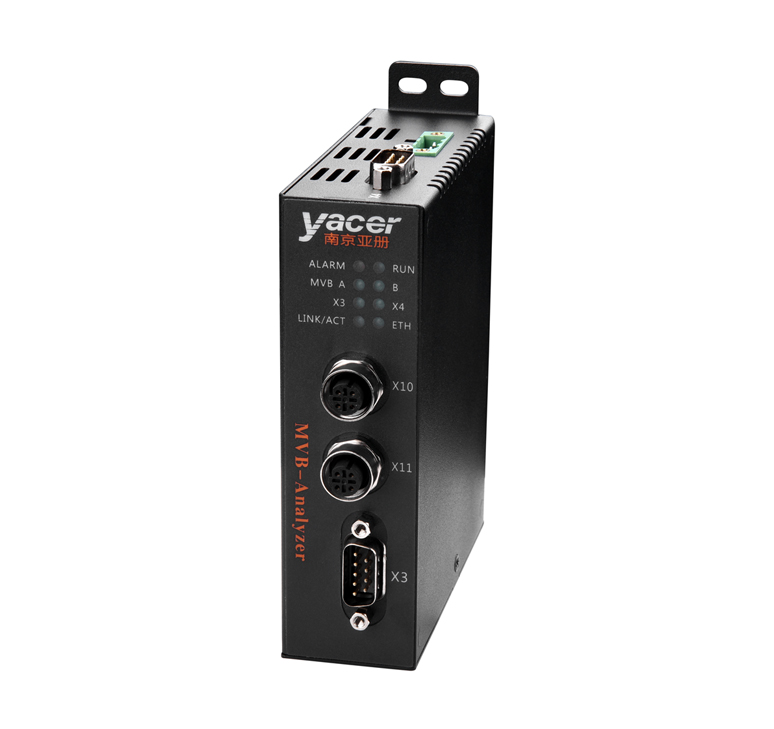

MVB-Analyzer Protocol Analyzer
  • 1x MVB interface, optional EMD, ESD media
  • 2x Ethernet ports, and multiple isolated serial or CAN bus interfaces
  • Monitor and analyze MVB bus, and acquire MVB frames
  • Support MVB master emulation to assist MVB diagnostic testing
  • Provide free MVB monitoring and analyzing software
  • Easy to use, open programming interface
DETAILS

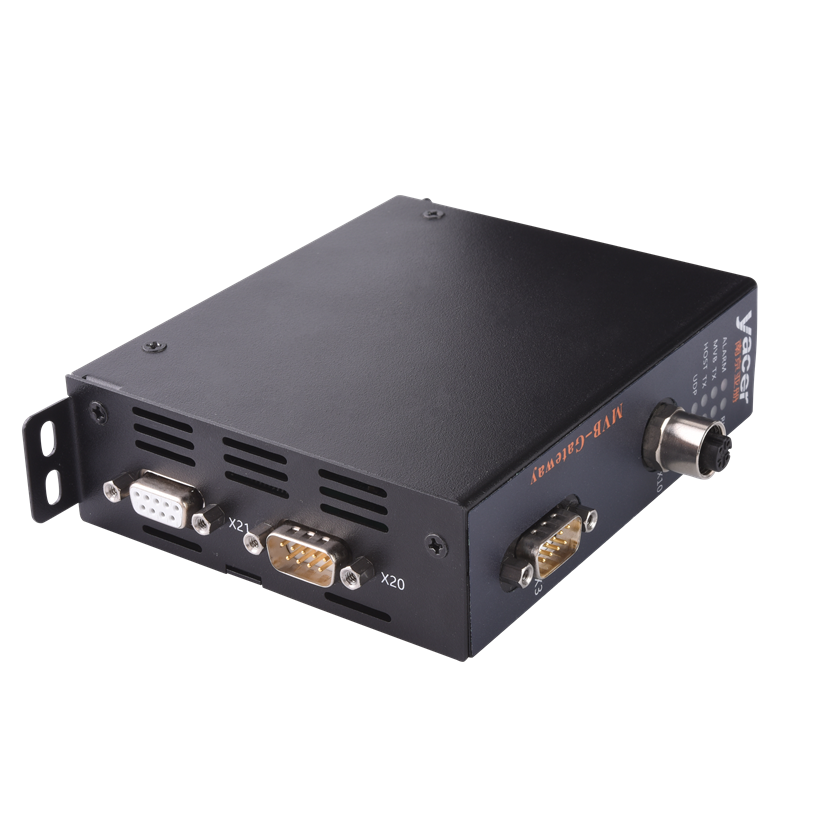

MVB-Gateway Protocol Conversion Gateway
  • 1x MVB bus interface, supports EMD media
  • 1x 100M Ethernet interface for MVB-to-TCP/IP protocol conversion
  • 1x serial port for MVB-to-serial interface conversion
  • 1x CAN interface for MVB-to-CAN bus conversion
  • Supports MVB read-only mode and realizes PD data acquisition
  • 24V, 36V, 48V, 72V, 96V, 110V DC power supply
DETAILS

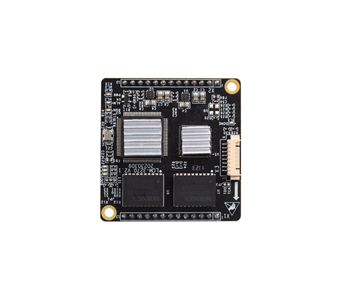

MVB-CAN-UART MVB Embedded Module
  • 1x MVB bus interface, supporting EMD and ESD+
  • 1x UART serial port for MVB-to-serial port conversion
  • 1x CAN bus interface for MVB-to-CAN bus conversion
  • + 5V power supply, low power consumption
  • Wide temperature range from -40°C to +85°C
  • Provides a comprehensive development kit
DETAILS

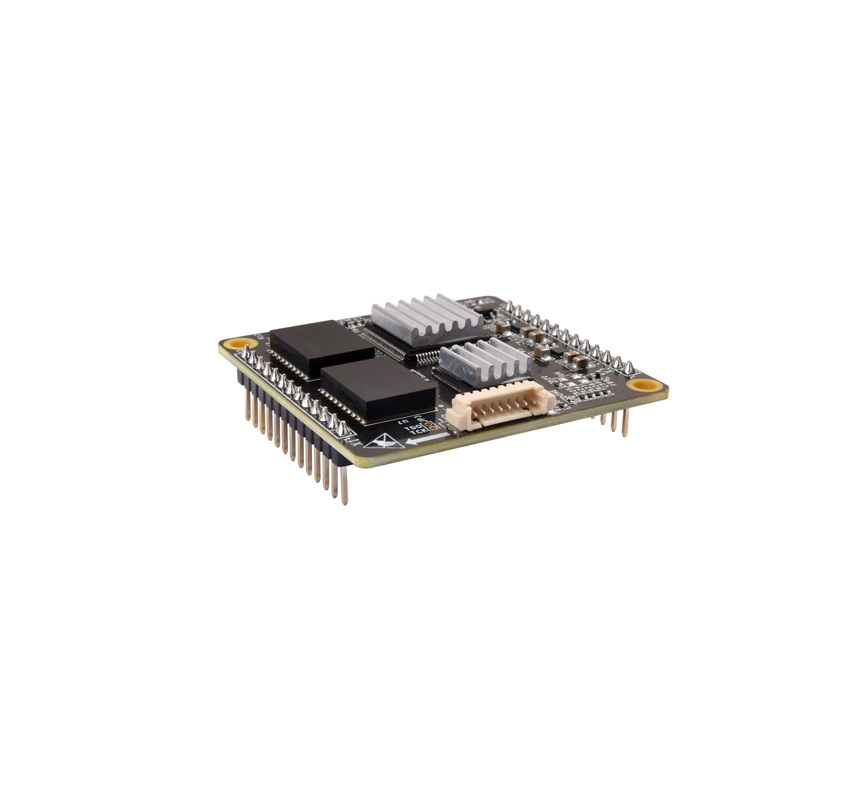

MVB-UDP Ethernet to MVB Module
  • 1x MVB interface, supporting EMD and ESD+
  • 1x Ethernet interface for MVB-to-UDP protocol conversion
  • 1x UART serial port for MVB-to-serial port conversion
  • Supports the MVB slave station function and PD data acquisition
  • Software, hardware design reference and evaluation board are provided
DETAILS
MVB-EMD Slave Network Card
  • 1x MVB bus interface, supporting EMD
  • 1x UART serial port for MVB-to-serial conversion
  • Supports MVB slave station function and conforms to IEC 61375 standard
  • Support multiple PD source ports and sink ports
  • Support MVB bus PD data acquisition function
  • +5V power supply, Low power consumption
DETAILS

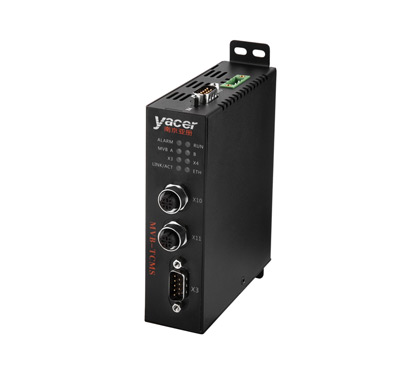

MVB-TCMS TCN Protocol Converter
  • 1x MVB interface, optional EMD, ESD media
  • 2x 100M Ethernet interface, support UDP to MVB
  • 2x Extended interface R2-232, RS-422, RS-485, CAN optional
  • Optionally support TRDP protocol
  • Power supply options: 24V, 36V, 48V, 72V, 96V, 110V standard
  • Easy-to-use management software, MVB debugging software
DETAILS
