Overview

Introduction

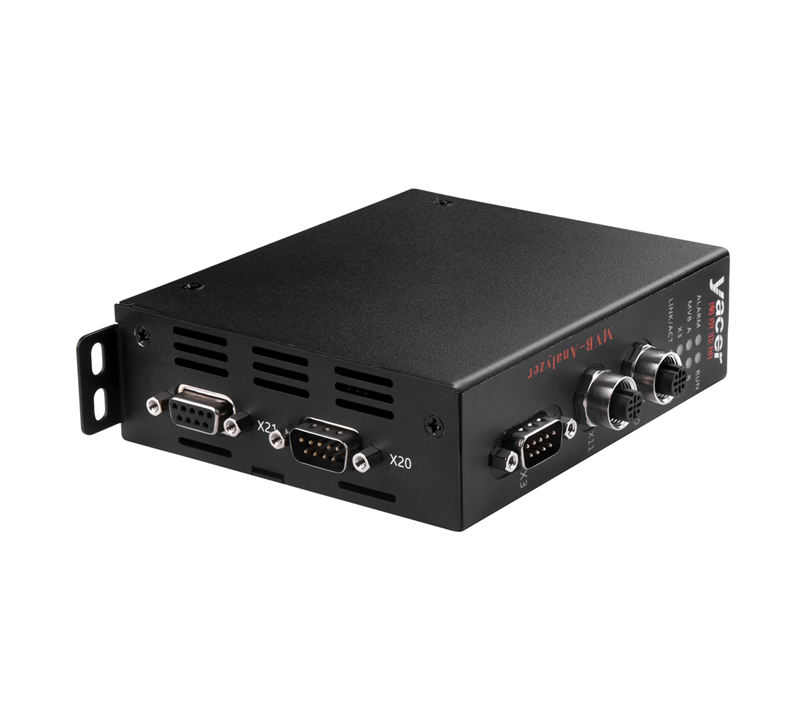

Yacer MVB-Analyzer protocol analyzer provides MVB interface, two Ethernet interfaces and two extended interfaces to collect and receive MVB frames, WTB frames, synchronous HDLC frames, CAN frames, and UART serial data from the vehicle bus and send them to the computer via the Ethernet interface.

By using the accompanying MVB-Monitor monitoring and analyzing software, it is possible to analyze the MVB bus data and perform MVB master simulation to find out troubleshooting and evaluate the operation status of the MVB bus.

Industrial wide temperature, complete isolation and protection, compact size, suitable for train communication network.

Applications

• MVB (Multifunction Vehicle Bus) Monitoring and Analysis

• WTB (Wire Train Bus) Monitoring and Analysis

• HDLC (High-level Data Link Control) Protocol Monitoring and Analysis

• CAN Bus monitoring and analysis

• RS-232/422/485 serial port data monitoring analysis

• MVB, WTB, HDLC, UART, CAN to Ethernet interface conversion

• Train TCMS (Train Control and Management System) system

• Train Communication Network (TCN)

Features

• Two 10/100M Ethernet interfaces, supporting Ethernet switching and dual-IP function;

• MVB redundant interface, optional ESD+, EMD media interface

• Extended interface optional RS-232, RS-422, RS-485 serial or CAN bus interface

• Serial port supports asynchronous UART, synchronous HDLC protocol

• Perfect isolation and protection

• Industrial wide temperature

Specifications

Item	Parameters	Details

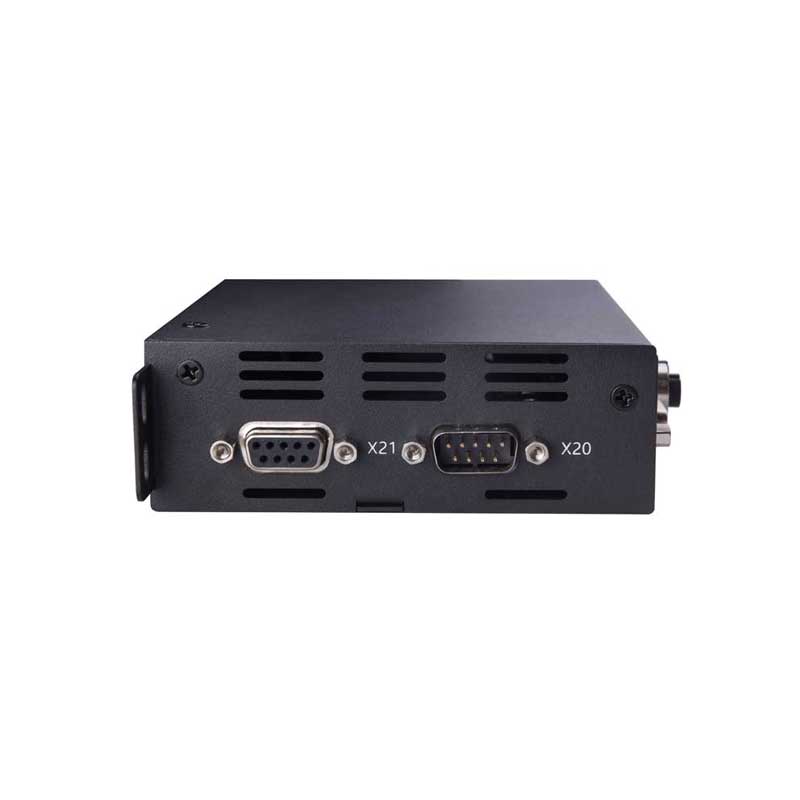

MVB Interface	Connector	1 x male D-Sub 9 (X20) + 1 x female D-Sub 9 (X21)
	Physical media	Optional EMD, ESD+
	Logical media	Support EMD, ESD
	Isolation	2.5 kVrms
Extended Interface X3	Connector	1 x male D-Sub 9 (X3)
	Interface type (Three-in-one)	• RS-232 full-duplex serial port • RS-422 full-duplex isolated serial port • RS-485 half-duplex isolated serial port
	Working mode	Asynchronous UART Optionally supporting synchronous HDLC protocol
	Baud rate	Synchronous ≤ 6 Mbps Asynchronous ≤ 1.5 Mbps
	Isolation	2.5 kVrms
Extended Interface X4	Connector	1 x male D-Sub 9 (X4)
	Interface type (Three-in-one)	• CAN bus isolation interface (CAN 2.0A, CAN 2.0B, ISO 11898) • RS-422 full-duplex isolated serial port • RS-485 half-duplex isolated serial port
	Working mode	Asynchronous UART Optionally supporting synchronous HDLC protocol
	Baud rate	Serial port: Synchronous ≤ 6 Mbps Asynchronous ≤ 1.5 Mbps CAN: 50 Kbps ~ 1 Mbps
	Isolation	2.5 kVrms

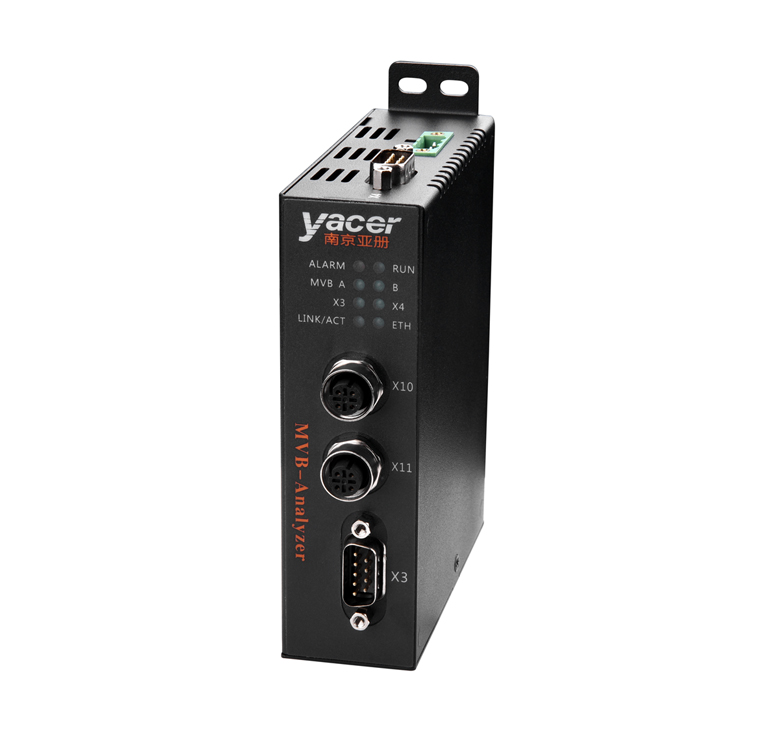

Ethernet Interface	Connector	2 x M12 with D-coding
	Function	Ethernet switching, dual-IP
	Rate	10/100 Mbps adaptive, 100 Mbps full-duplex
	Network protocol	TCP/IP
	Programming interface	UDP Server, UDP Client Support Unicast/Multicast/Broadcast
	Isolation	1.5 kVrms
Configuration Software	Configuration tool	yacer-DMS configuration management software
	Monitor software	MVB-Monitor monitoring and analyzing software
	Acquisition software	MVB-Acquisition acquisition and display software
Power	Power supply	LV: Nominal 24V, tolerance 9 ~ 36VDC MV: Nominal 36V, 48V, tolerance 18 ~ 75VDC HV: Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC
	Isolation protection	>1.5 kVrms, suporting Anti-reverse protection
	Power consumption	< 3W

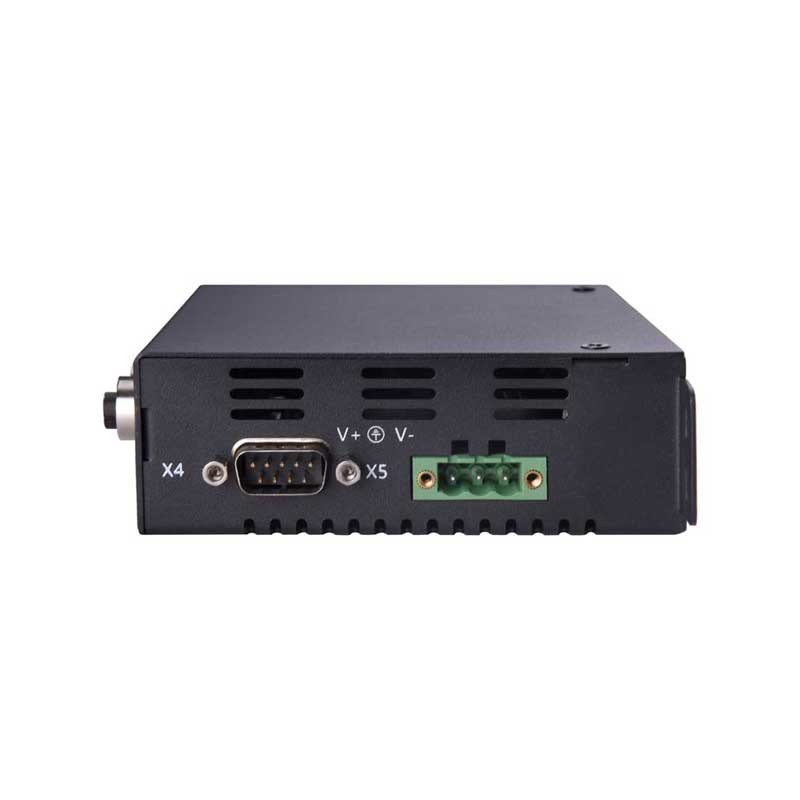

	Power connector	3 pin connector with 5mm pitch (Phoenix Contact MSTB 2,5 / 3-GF or equivalent)
Mechanical Characteristics	Dimensions	H x W x D: 124 x 36 x 104 mm
Mechanical Characteristics	Weight	500g
Operating Environment	Operating temperature	-40 ~ +70℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)

Order Information

MVB-Analyzer	-	M	0	5	5	-LV
MVB physical layer media type:
• EMD		M
• ESD+		S
Protocol Support:
• UDP			0
• UDP, HDLC			1
Extended Interface X3 Definition:
• None				0
• Full-duplex RS-232 serial port				3
• Full-duplex RS-422 serial port				4
• Half-duplex RS-485 serial port				5
Extended Interface X4 Definition:
• None					0
• Full-duplex RS-422 serial port					4
• Half-duplex RS-485 serial port					5
• CAN Bus interface					6
Supply voltage range:
• Nominal 24V, tolerance 9 ~ 36VDC						-LV
• Nominal 36V, 48V, tolerance 18 ~ 75VDC						-MV
• Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC						-HV
MVB D-Sub Bolts:
• M3 Bolts							<empty>
• UNC4-40 Bolts							-UNC

Documentation

MVB-Analyzer Datasheet

MVB-Analyzer Protocol Analyzer Datasheet

Tools and software

yacer-DMS Configuration Management Software

Carry out operation monitoring, configuration management, diagnosis test and version update for devices.

MVB-Monitor Analysis Software

Provides strong support for users to master the operation of MVB bus and diagnose network failures.

MVB-Serial Debugger

Debugging and testing MVB protocol conversion board or device based on computer serial port.

MVB-UDP Debugger

Debugging and testing MVB communication equipment.

MVB-Acquisition Software

MVB data acquisition and display software
