SDLC High-Speed Synchronous Communication

High-speed synchronous HDLC/SDLC protocol (Synchronous Data Link Control)serial communication solution, supporting NRZ, NRZI, DBPL, Manchester, Differential Manchester and other coding, industrial-grade standards to cope with aviation, aerospace, measurement and control, transportation and other application environments.

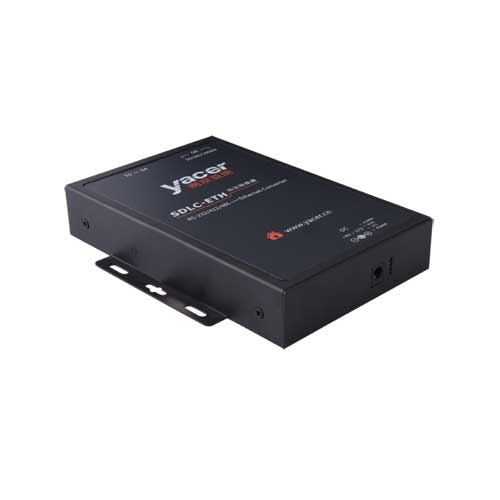

SDLC-ETH Hi-Speed Serial Ethernet Converter
  • 1x Gigabit Ethernet Interface
  • 4x RS-232/422/485 synchronous/asynchronous serial ports, baud rate up to 20 Mbps
  • Support synchronous HDLC, SDLC, asynchronous UART, Bitstream and other operating modes
  • NRZ, NRZI, DBPL, Manchester and differential Manchester encoding formats
  • On-board application CPU for users to program on-board for secondary development
  • 4 ~17 VDC wide voltage power supply
  • Industrial wide temperature
DETAILS

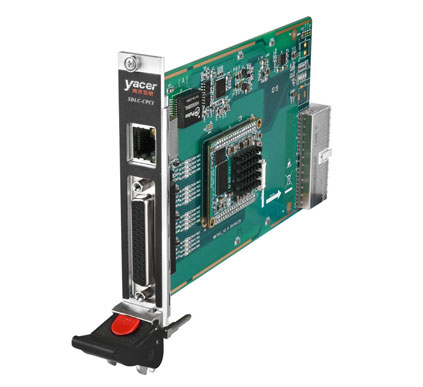

SDLC-CPCI/PXIe Hi-Speed Synchronous Serial Card
  • CPCI/PXI, CPCIe/PXIe 3U driver-free card
  • 1x Gigabit Ethernet interface
  • 4x synchronous/asynchronous serial ports, Maximum Baud rate up to 20 Mbps
  • Support synchronous HDLC, SDLC, asynchronous UART, Bitstream and other operating modes.
  • NRZ, NRZI, DBPL, Manchester and Differential Manchester encoding formats
  • On-board application CPU for users to program secondary development on the board
  • Industrial wide temperature
DETAILS

TECHNICAL DOCUMENTS

The Selection and Configuration of Synchronization Clock for HDLC Protocol
Synchronous HDLC serial communication, different from ordinary asynchronous communication, the clock signal plays an important role, only the sender and receiver use the same clock, can achieve highly reliable data transmission.
Introduction to Road Traffic Signal System
The road traffic signal controller is a device that can change the order of road traffic signals, adjust the timing and control the operation of road traffic lights.
Introduction to HDLC Protocol
HDLC protocol, sometimes known as SDLC protocol, is a link layer protocol widely used in industry communications. The HDLC protocol specification is referred to the ISO / IEC 13239 standard document.
HDLC communication based on RS-485 bus
HDLC communication based on RS-485 bus
Design and Implementation of High-speed Serial Synchronous Communication
Design and Implementation of High-speed Serial Synchronous Communication
Synchronous Communication and Asynchronous Communication
Synchronous Communication and Asynchronous Communication
