Overview

Introduction

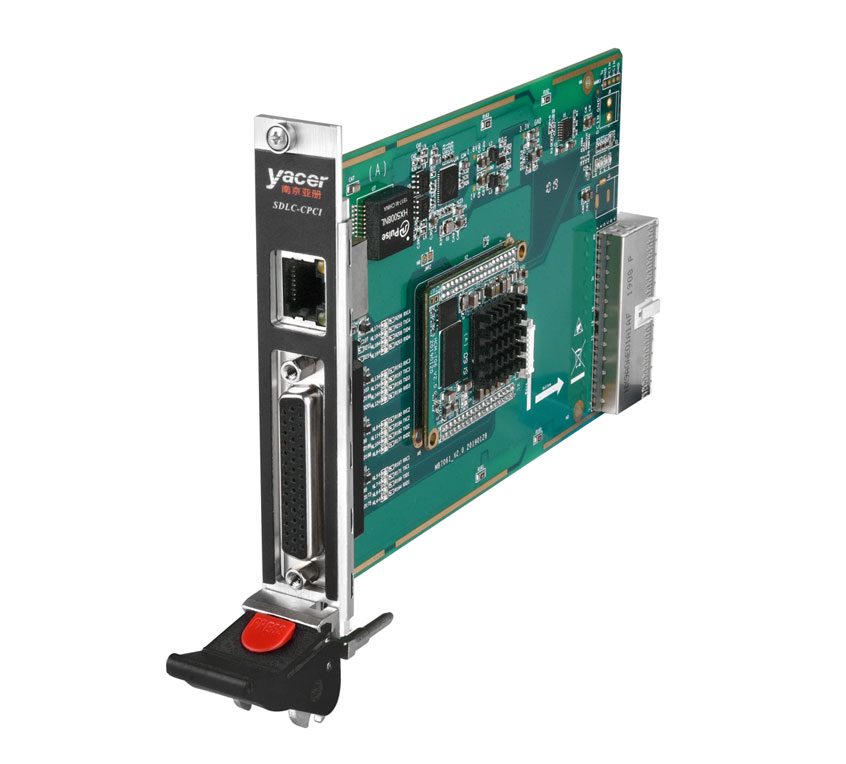

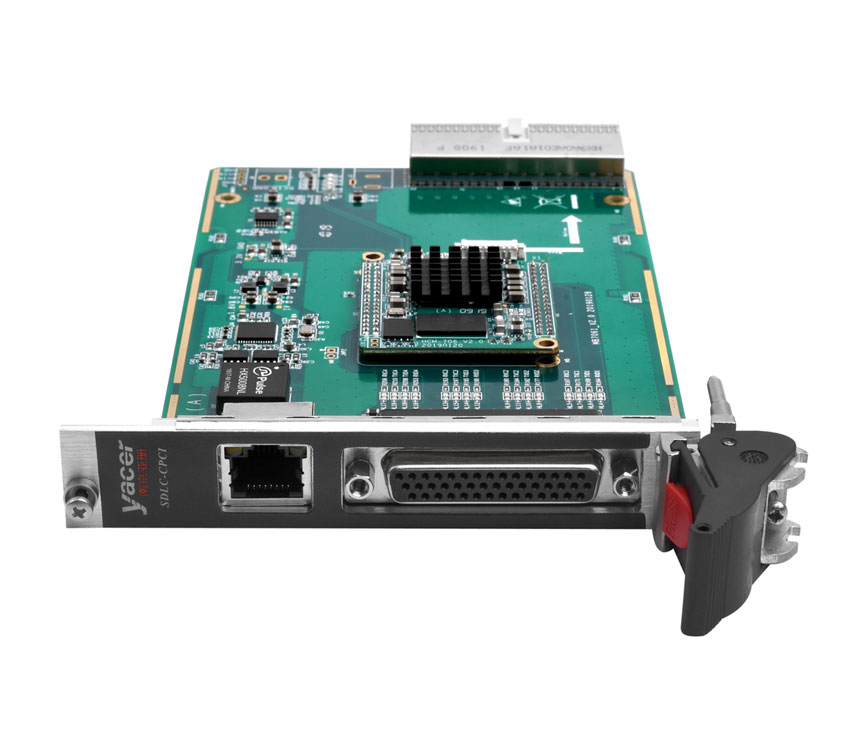

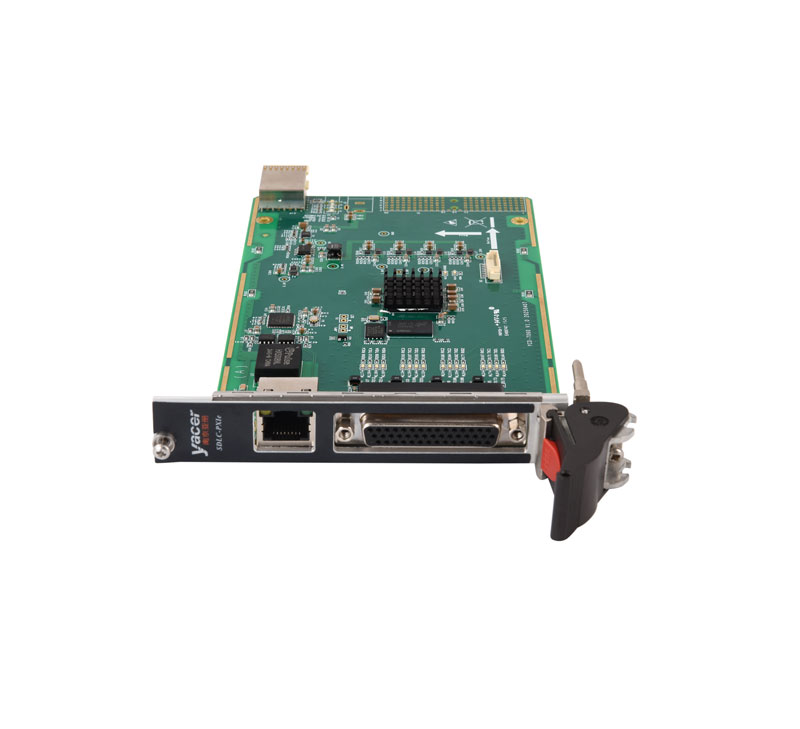

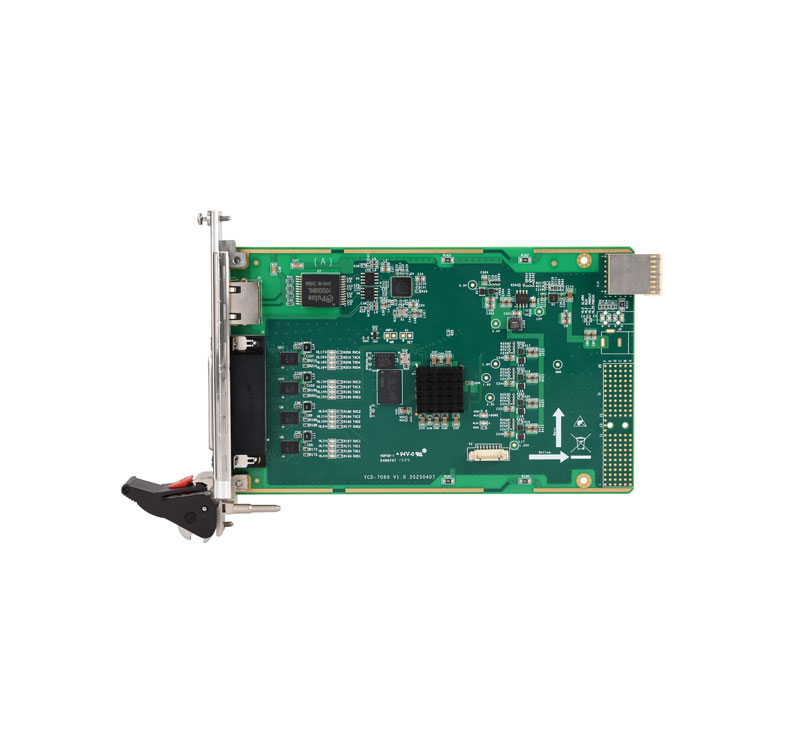

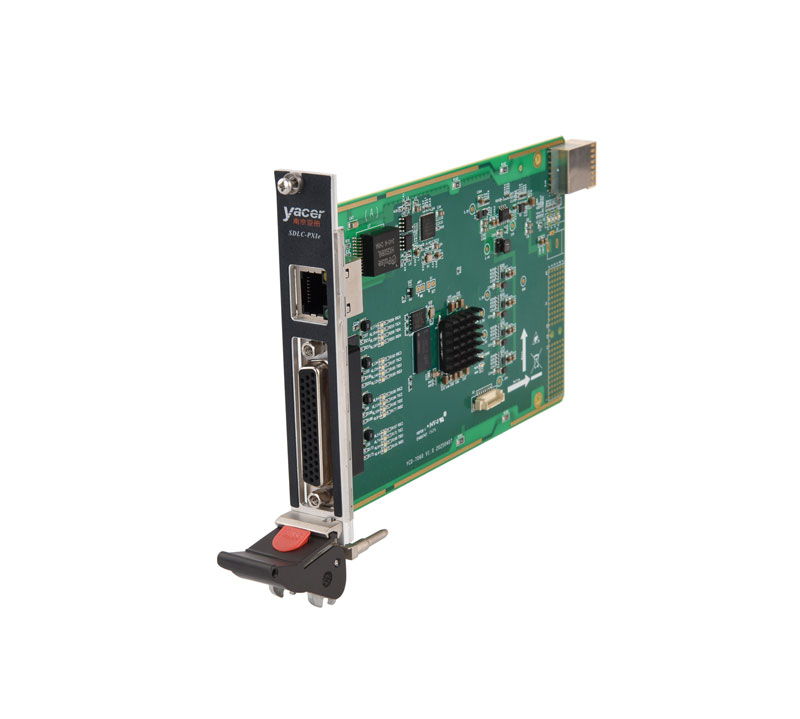

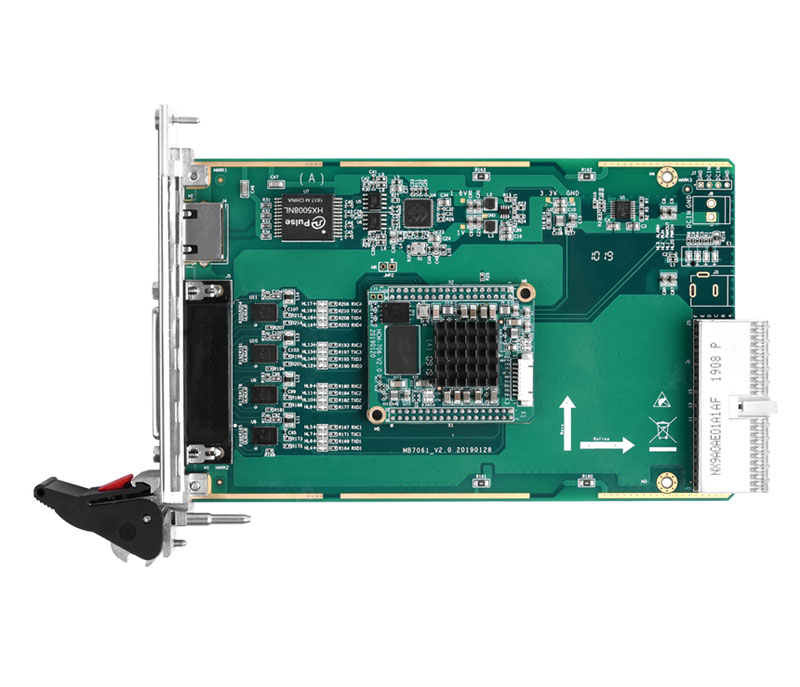

The Yacer SDLC-CPCI/PXI Hi-Speed Synchronous Serial Card, provides 4 high-speed RS-232/422/485 multiprotocol serial ports to support synchronous HDLC/SDLC protocol. One Gigabit Ethernet port, realizes protocol conversion between serial port and Ethernet, supports Ethernet bridge function via serial port.

Support Compact PCI 3U standard, support PXI bus specification, drive-free.

Applications

• Protocol conversion between the serial port and Ethernet

• Ethernet Bridging Through Serial Port

• Conversion between synchronous and asynchronous serial ports

• Serial Port One Way Multiplexing

• High-speed synchronous serial data communication and conversion

• Telemetry, measurement and control data acquisition and transmission

• Satellite, radio data transmission

• Air Traffic Control (ATC), Air Traffic Management (ATM)

• CPCI Bus Application and PXI Bus Application

Features

• One 10/100/1000M Ethernet interface

• 4 synchronous/asynchronous serial ports, Maximum Baud rate up to 20 Mbps

• Synchronous HDLC/SDLC, Asynchronous UART, Bit stream, etc.

• NRZ, NRZI, DBPL, Manchester and Differential Manchester encoding formats

• Super-long frame support, maximum frame length 8192 bytes

• Compatible with CPCI 3U and PXI 3U specifications

• Driver-free, without the host resources occupancy

• Industrial wide temperature

Specifications

Item	Parameters	Details
Serial Ports	Quantity	4
	Connector	1 x D Sub 44(Female)
	Working mode	Synchronous HDLC/SDLC
		Asynchronous UART
		Synchronous Bit stream
	Interface type (Configurable by software)	RS-232
		RS-422
		RS-485
	Duplex mode (Configurable by software)	Full-duplex
	Duplex mode (Configurable by software)	Half-duplex
	Encoding format	NRZ
		NRZI
		Manchester
		Differential Manchester
		DBPL(Differential Bi-Phase Level)
	Baud rate	Synchronous NRZ: ≤ 20 Mbps
		Other Synchronous: ≤ 10 Mbps
		Asynchronous:≤ 3 Mbps
	Synchronous clock	Normal, slave and master clock mode
	ESD protection	±15 KV
Ethernet Interface	Connector	1 x RJ-45
	Speed	10/100 Mbps, Auto MDI/MDI-X
	Network protocol	TCP/IP
	Programming interface	UDP Server, UDP Client; Unicast/Multicast/Broadcast
	Ethernet bridge	Serial Ethernet bridge
Secondary Development Support	CPU	Arm cortex-a9 processor, main frequency 500 MHz
	Memory	DDR3, 128MB
	FLASH	Version space 6MB, Configuration space 1MB
	Interfacer	Data interaction based on shared memory with CPU
Computer Bus	CPCI	Compact PCI 3U
	PXI	PXI 3U
	Driver	Driver free
Configuration Management	Configuration tool	yacer-DMS configuration management software
Configuration Management	Configuration interface	Ethernet Interface
Power Requirements	Power Supply	4 ~ 17 VDC
	Power consumption	< 3 W
	Power interface	CPCI or PXI bus power supply
Mechanical Characteristics	Dimensions	160 mm x 100 mm
Mechanical Characteristics	Weight	180g
Operating Environment	Operating temperature	-40 ~ +70℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)

Order Information

Model	Serial Ports	Ethernet	Bus Specification
SDLC-CPCI-200-3U	2 x Asynchronous + 2 x Synchronous/Asynchronous	1 x 10/100/1000M	CPCI/PXI 3U
SDLC-CPCI-400-3U	4 x Synchronous/Asynchronous	1 x 10/100/1000M	CPCI/PXI 3U
SDLC-CPCIE-200-3U	2 x Asynchronous + 2 x Synchronous/Asynchronous	1 x 10/100/1000M	CPCIe/PXIe 3U
SDLC-CPCIE-400-3U	4 x Synchronous/Asynchronous	1 x 10/100/1000M	CPCIe/PXIe 3U

Documentation

SDLC-CPCI-PXI Datasheet

SDLC-CPCI/PXI Hi-Speed Synchronous Serial Card Datasheet

Tools and software

yacer-DMS Configuration Management Software

Carry out operation monitoring, configuration management, diagnosis test and version update for devices.

easy-UART Debugger

Yacer easy-UART is a free software tools that is very easy to use. Based on UDP, it’s debugging and testing universal asynchronous serial port.

easy-HDLC Debugger

Testing HDLC communication equipment
