Overview

Introduction

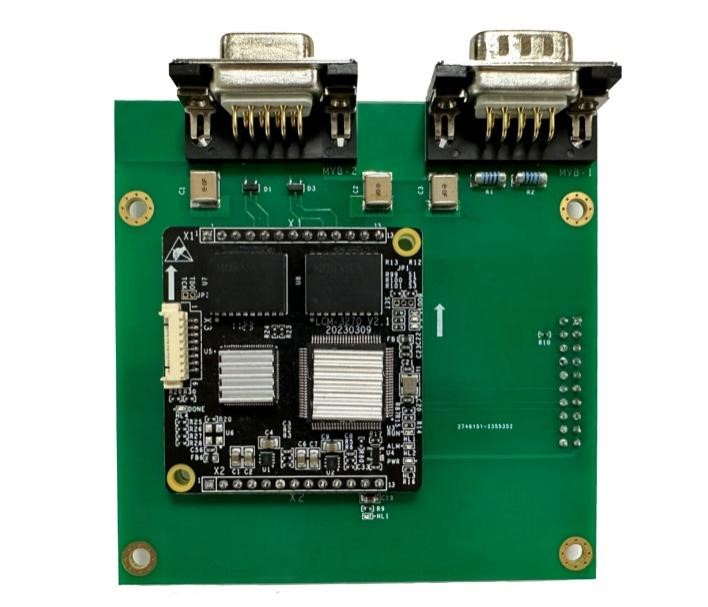

The Yacer MVB-EMD embedded slave network card, provided one full-featured MVB redundant interface and one UART extended serial port to realize protocol conversion between MVB and serial port.

Small size, 2.54 mm pin connector. + 5V power supply, low power consumption. Industrial wide temperature, suitable for embedded applications.

Features

• One UART extended serial port

• One MVB redundant EMD interface, support MVB slave protocol

• Support multiple PD source ports and sink ports

• Support MVB bus PD data acquisition function

• + 5V power supply, Low power consumption

• Small size, Industrial wide temperature

Applications

• Protocol conversion between MVB and serial port

• Train Control and Management System (TCMS)

• Train Communication Network (TCN)

• Embedded application and development

Specifications

Item	Parameters	Details
MVB Interface	Connector	1 x DB9 male + 1 x DB9 female
	Media support	EMD
	Device class	Class 1
	Device capabilities	Device_Status, Process_Data(PD)
	Number of PD ports	16
	Isolation	2.5 kVrms
UART Serial port	Level standard	3.3V LVCMOS
	Working mode	Asynchronous UART
	Duplex mode	Full-duplex
	Baud rate	≤ 921.6 Kbps
Configuration Management	Configuration interface	Dedicated DMS-UART interface ( with Yacer ' s DMS-UART-8P configuration cable )
Configuration Management	Configuration tool	yacer-DMS configuration management software
Power Requirements	Input voltage	+5V DC
Power Requirements	Power consumption	< 2 W
Mechanical Characteristics	Connector	1 x 20 PIN double-row pin connector (2*10) with 2.54mm pitch
	Dimensions	90 mm x 90 mm
	Weight	100 g
Operating Environment	Operating temperature	-40 ~ +85℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)

Order Information

Model	Description	MVB D-Sub Bolts
MVB-EMD-200	1 x dual redundancy MVB + 1 x UART interface	M3 Bolts
MVB-EMD-200-UNC	1 x dual redundancy MVB + 1 x UART interface	UNC4-40 Bolts

Documentation

MVB-EMD Datasheet

MVB-EMD Embedded Slave Network Card Datasheet

Tools and software

yacer-DMS Configuration Management Software

Carry out operation monitoring, configuration management, diagnosis test and version update for devices.

MVB-Serial Debugger

Debugging and testing MVB protocol conversion board or device based on computer serial port.

MVB-Acquisition Software

MVB data acquisition and display software
