Overview

Introduction

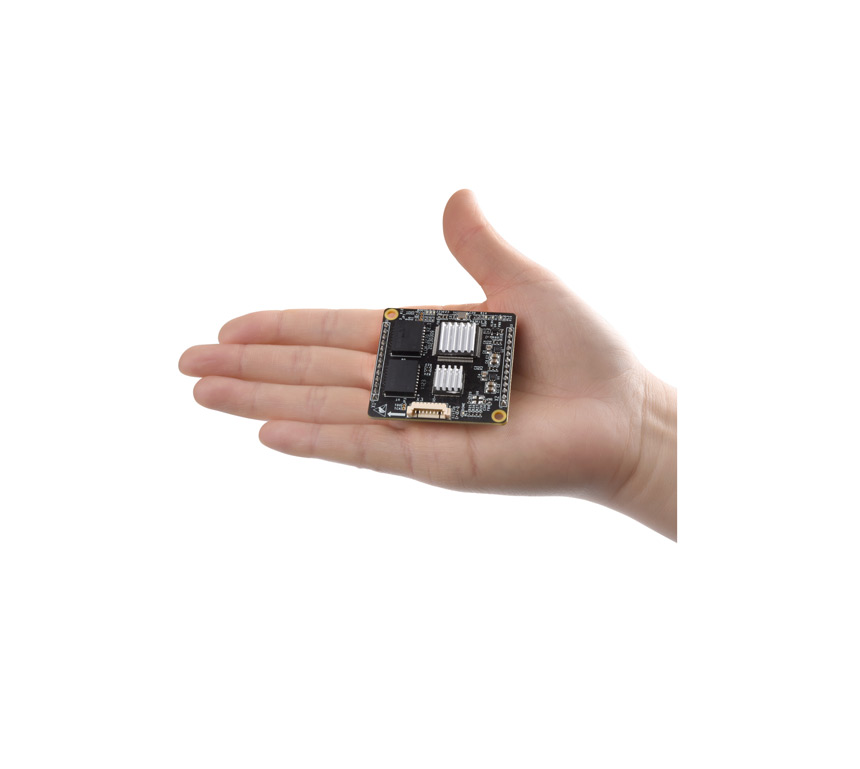

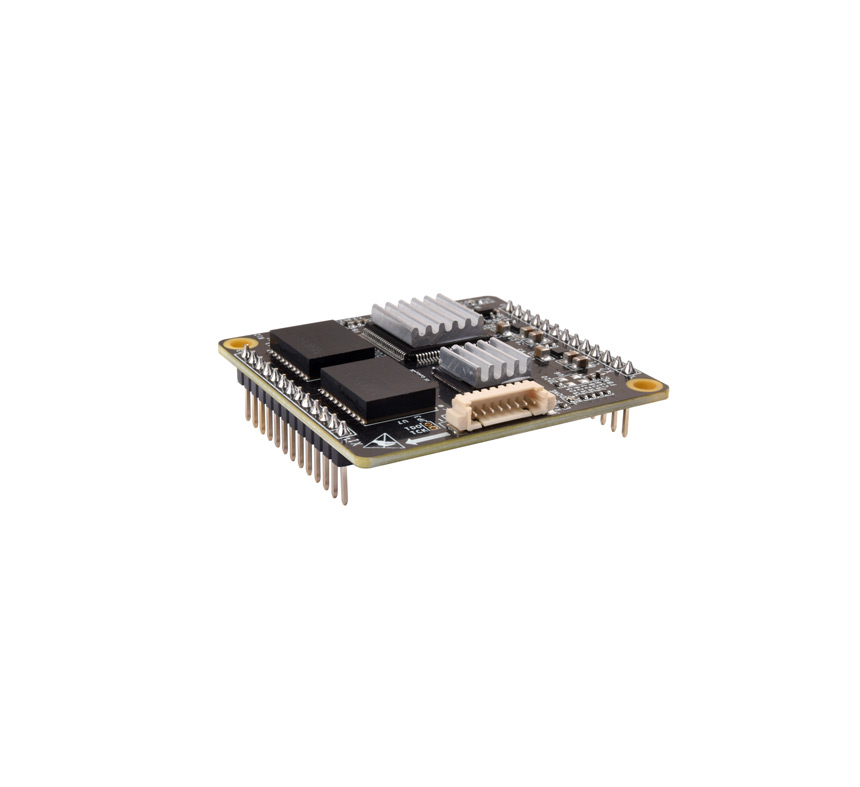

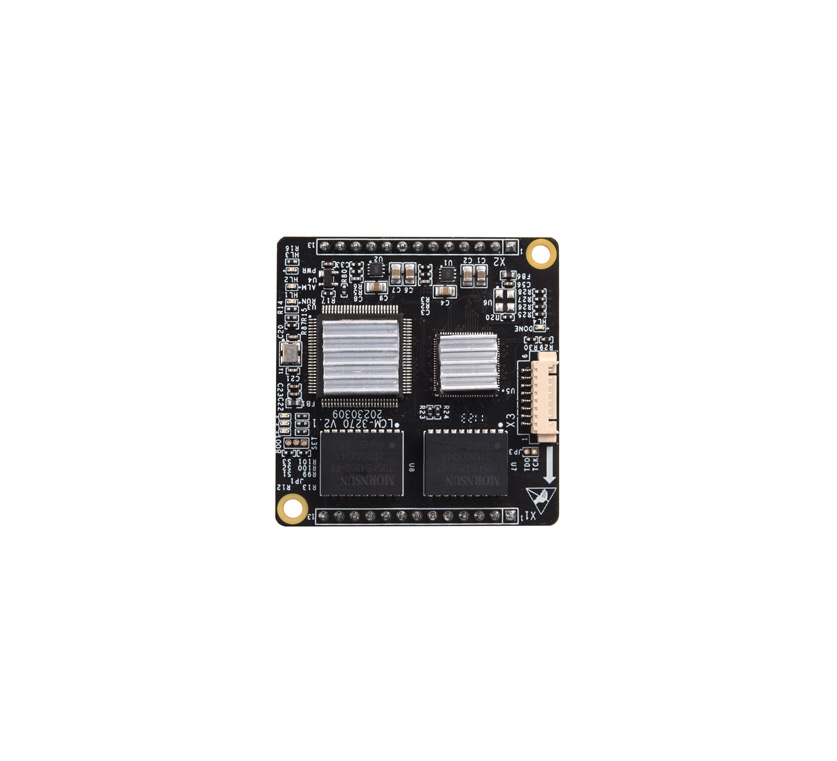

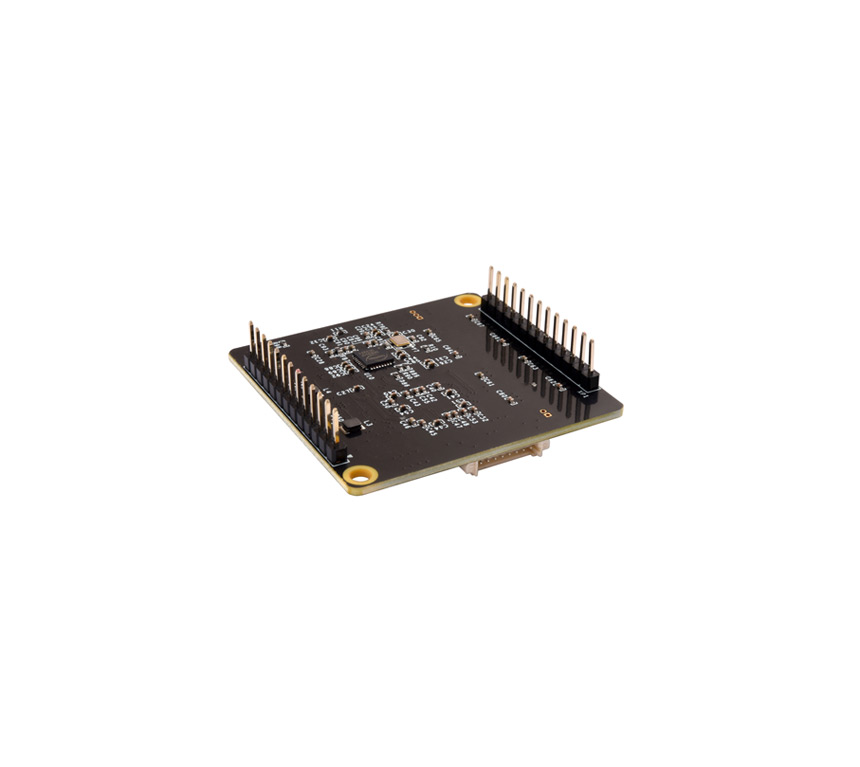

The Yacer MVB-UDP embedded slave network card module, providing a set of full-featured MVB redundant interfaces, one 100M Ethernet PHY interface, and one UART extended serial port to realize the protocol conversion between MVB, UDP and serial port, and optionally support TRDP protocol.

46.5 × 48mm tiny size, 2.54mm pin connector. + 5V power supply, low power consumption. Industrial wide temperature, suitable for embedded applications.

Applications

• Protocol conversion between MVB and Ethernet

• Protocol conversion between MVB and serial port

• MVB bus PD data monitoring

• Protocol conversion between TRDP and serial port

• Train Control and Management System (TCMS)

• Train Communication Network (TCN)

• Embedded development and application

Specifications

Item	Parameters	Details
MVB Interface	Media support	EMD, ESD+
	Device class	Class 1
	Device capabilities	Device_Status, Process_Data(PD)
	Number of PD ports	32
	Isolation	2.5 kVrms
Ethernet Interface	Number	1 x 10/100M PHY
	Rate	10/100 Mbps, supports MDI/MDIX adaptive
	Protocol	UDP
	Programming interface	UDP Server, UDP Client, supports unicast / multicast / broadcast
Extended Serial Port	Level standard	3.3V LVCMOS
	Working mode	Asynchronous UART
	Baud rate	≤ 921.6 Kbps
Configuration Management	Configuration interface	Special DMS-UART interface (by DMS-UART-8P cable) Ethernet interface
Configuration Management	Configuration tool	yacer-DMS configuration management software
Power Requirements	Power supply	+5 VDC
Power Requirements	Power consumption	< 2W
Mechanical Characteristics	Connector	Two 2.54mm pitch 13-pin single-row male connectors
	Dimensions	46.5 x 48 mm
	Weight	15 g
Operating Environment	Operating temperature	-40 ~ +85℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)

Order Information

Module	Description
MVB-UDP-300	1 x dual redundancy MVB + 1 x Ethernet PHY + 1 x UART

Documentation

MVB-UDP Datasheet

MVB-UDP Ethernet to MVB Embedded Module Datasheet

Tools and software

yacer-DMS Configuration Management Software

Carry out operation monitoring, configuration management, diagnosis test and version update for devices.

MVB-UDP Debugger

Debugging and testing MVB communication equipment.

MVB-Acquisition Software

MVB data acquisition and display software
