Overview

Introduction

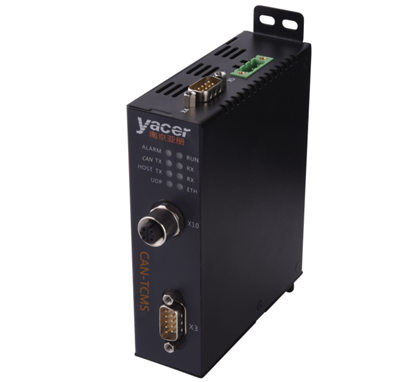

The Yacer CAN-TCMS train protocol conversion gateway provides one CAN bus interface, one 100M Ethernet interface and one serial port to realize protocol conversion between CAN bus interface, Ethernet port and serial port.

Industrial wide temperature, perfect isolation protection, compact size, suitable for train and locomotive network communication.

Applications

• Protocol conversion between CAN and Ethernet interface

• Protocol conversion between CAN and serial port

• Train Control and Management System (TCMS)

• Train Communication Network (TCN)

• Embedded application and development

Specifications

Item	Parameters	Details
Serial Port	Connector	1 x male D-Sub 9 (X3)
	Interface type (choose one of three)	• RS-232 full-duplex serial port • RS-422 full-duplex isolated serial port • RS-485 half-duplex isolated serial port
	Baud rate	≤ 921.6 Kbps
	Isolation	2.5 kVrms
CAN Interface	Connector	1 x male D-Sub 9 (X4)
	Interface type	CAN bus isolation interface (CAN2.0A, CAN2.0B, ISO 11898)
	Baud rate	50 Kbps ~ 1 Mbps
	Isolation	2.5 kVrms
Ethernet Interface	Connector	1 x M12 with D-coding
	Rate	10/100 Mbps adaptive
	Network protocol	TCP/IP
	Programming interface	UDP Server, UDP Client Supporting Unicast/Multicast/Broadcast
	Isolation	1.5 kVrms
Configuration Management	Configuration tool	yacer-DMS configuration management software
Configuration Management	Configuration interface	Ethernet Interface
Power Requirements	Power supply	LV: Nominal 24V, tolerance 9 ~ 36VDC MV: Nominal 36V, 48V, tolerance 18 ~ 75VDC HV: Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC
	Isolation protection	>1.5 kV, Anti-reverse protection
	Power consumption	< 3 W
	Power connector	3 pin connector with 5mm pitch (Phoenix Contact MSTB 2,5 / 3-GF or equivalent)
Mechanical Characteristics	Dimensions	H x W x D: 124 mm x 36 mm x 104 mm
Mechanical Characteristics	Weight	500g
Operating Environment	Operating temperature	-40 ~ +70℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)
