Overview

Introduction

The Yacer HDLC-RSD Synchronous Serial Splitter is an active data distributor with a maximum baud rate of 250 Kbps, capable of 1 in 4 and 1 in 8 data sharing for HDLC synchronous serial ports.

It can be used as a radar distributor to realize digital sharing of the output of ATC primary surveillance radar, secondary surveillance radar, ADS-B and other equipment.

Optional 1U, 19-inch standard rack chassis or compact chassis, low power consumption, no fan high reliability design, support dual power redundancy.

Features

• Baud rate up to 250 Kbps, support 64K, 128K, 9600, 19200, 38400, 115200 and other rates

• Support synchronous HDLC, asynchronous UART

• No configuration, easy to use

• Main channel support RS2322, RS422

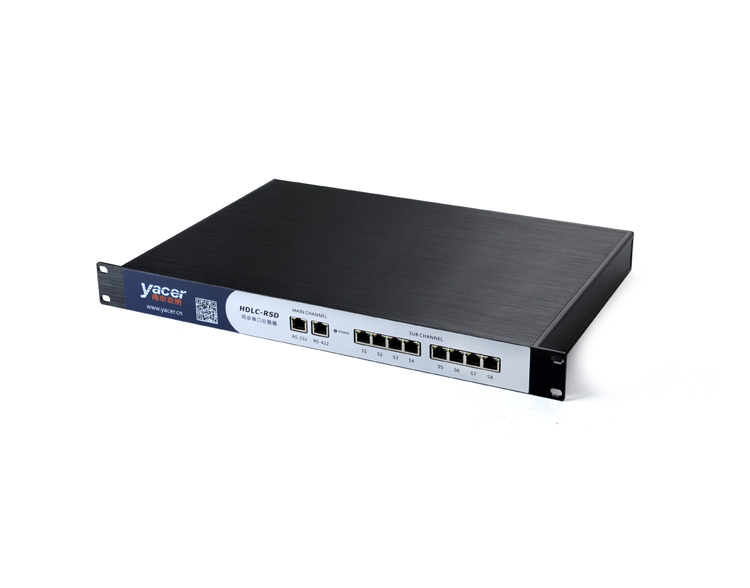

• 1U, 19-inch standard rackmount chassis or compact chassis

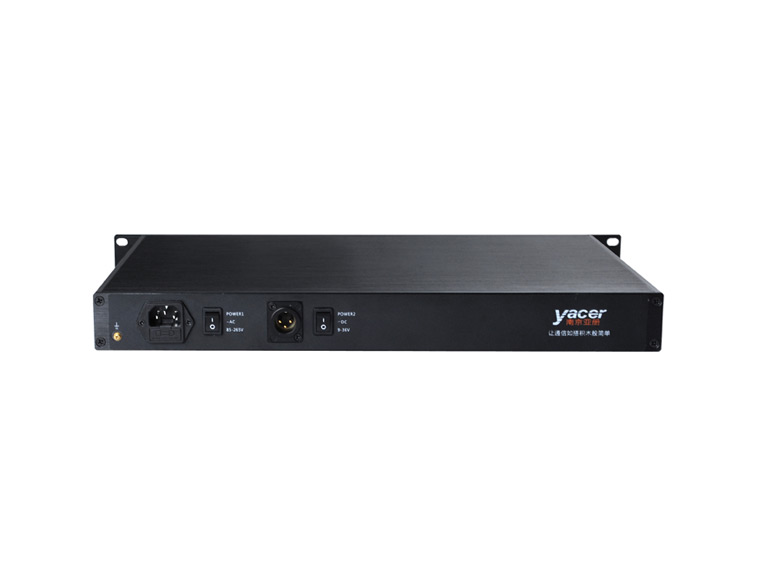

• Dual power redundancy

• Low power consumption, no fan design

Application

• ATC monitoring system, ADS-B, secondary surveillance radar (SSR) signal lead and output

• Air Traffic Control automation system (ATC), Air Traffic Management (ATM)

• Synchronous serial port, asynchronous serial port splitter

• ATC radar data splitter

• Serial data sharer

• RS-422 to RS-232

Specifications

Item	Parameters	Details
Main Channel (input)	Quantity	2 x RJ-45
	Working mode	Synchronous HDLC, Asynchronous UART
	Interface type	RS-232 + RS-422
	Baud rate	≤ 250 Kbps
	ESD protection	± 15 KV
Sub Channel (output)	Quantity	4 / 8 x RJ-45
	Working mode	Synchronous HDLC, Asynchronous UART
	Interface type	RS-232
	Baud rate	≤ 250 Kbps
	ESD protection	± 15 KV
Power Requirements	Power redundancy	Dual AC redundancy (AC1 priority) AC + DC redundancy (AC priority)
	AC power supply	85 ~ 265VAC
	DC power supply	9 ~ 36VDC
	Power consumption	< 5 W
Mechanical Characteristics	Dimensions	HDLC-RSD-800: 1U, standard 19-inch rack mounted HDLC-RSD-400: H x W x D: 32 x 193.55 x 124 mm
Mechanical Characteristics	Weight	HDLC-RSD-800: 3.0 Kg HDLC-RSD-400: 450g
Operating Environment	Operating temperature	-10 ~ +60℃
	Storage temperature	-30 ~ +75℃
	Operating humidity	30 ~ 90% RH (no condensation)
	Storage humidity	10 ~ 90% RH (no condensation)

Order Information

Product Model	Main Channel	Sub Channel	Chassis	Power

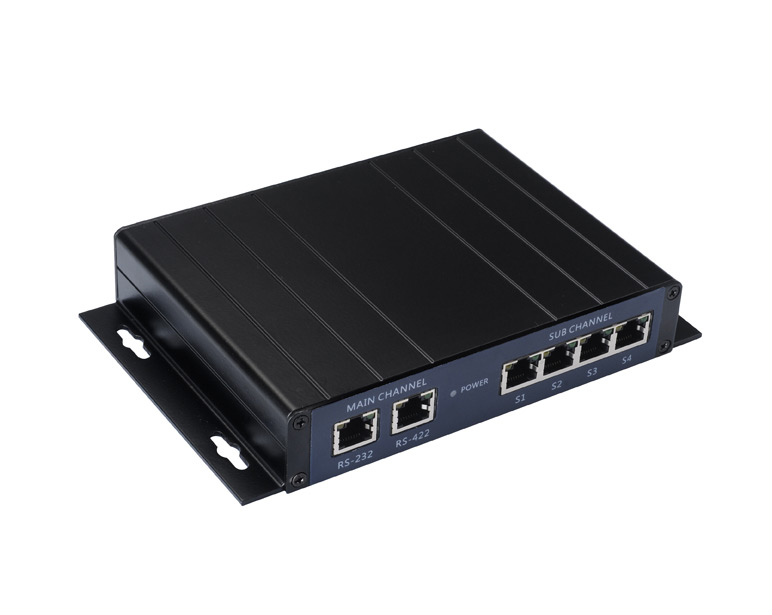

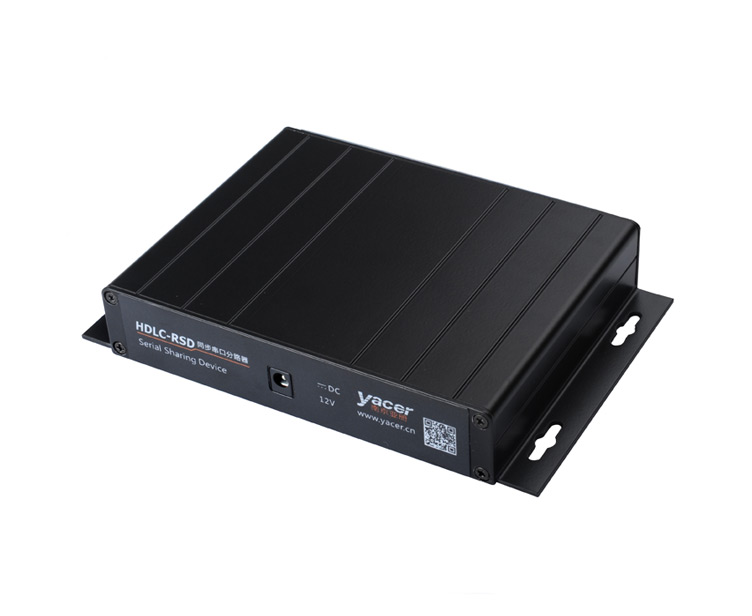

HDLC-RSD-400	RS-232 + RS-422	4 x RS-232	Compact	DC 12V

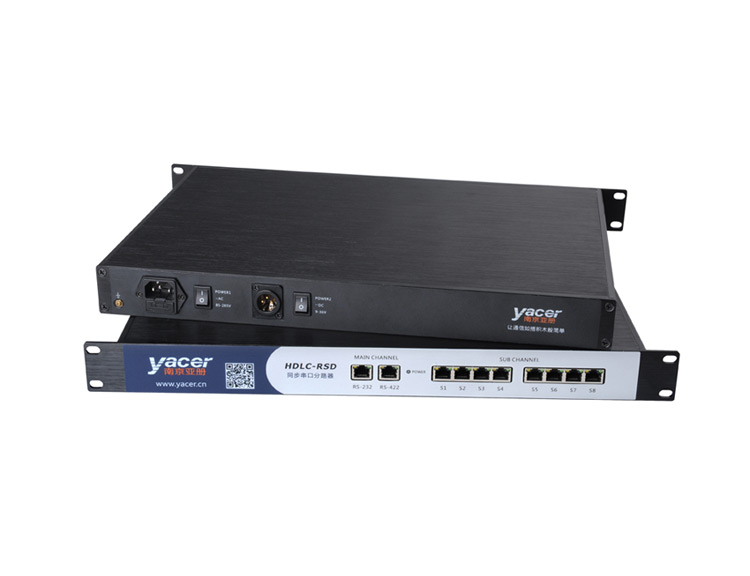

HDLC-RSD-800	RS-232 + RS-422	8 x RS-232	1U, 19-inch	Dual AC Redundancy

Documentation

HDLC-RSD Datesheet

HDLC-RSD Synchronous Serial Port Splitter Datasheet

Tools and software

yacer-DMS Configuration Management Software

Carry out operation monitoring, configuration management, diagnosis test and version update for devices.

easy-UART Debugger

Yacer easy-UART is a free software tools that is very easy to use. Based on UDP, it’s debugging and testing universal asynchronous serial port.

easy-HDLC Debugger

Testing HDLC communication equipment
