HDLC-ATC Air Traffic Data Communication Server

Air Traffic Control (ATC) SSR ADS-B Long-term Supply
  • 2, 3x Ethernet interfaces
  • 4, 8, 16x HDLC synchronous RS-232 serial port, 2 of which support asynchronous UART
  • 1U, 19-inch standard rack chassis
  • Dual power supply redundancy
  • Low power consumption, no fan design
Overview

Introduction

The Yacer HDLC-ATC Air Traffic Data Communication Server provides two or three 10 / 100M Ethernet interfaces and four, eight or sixteen synchronous HDLC serial ports (two of which support asynchronous UART) to realize protocol conversion between serial ports and Ethernet ports.

It is used to receive and send synchronous serial data of the ATC primary surveillance radar, secondary surveillance radar and ADS-B and other devices, supporting HDLC and TCP / IP protocol conversion.

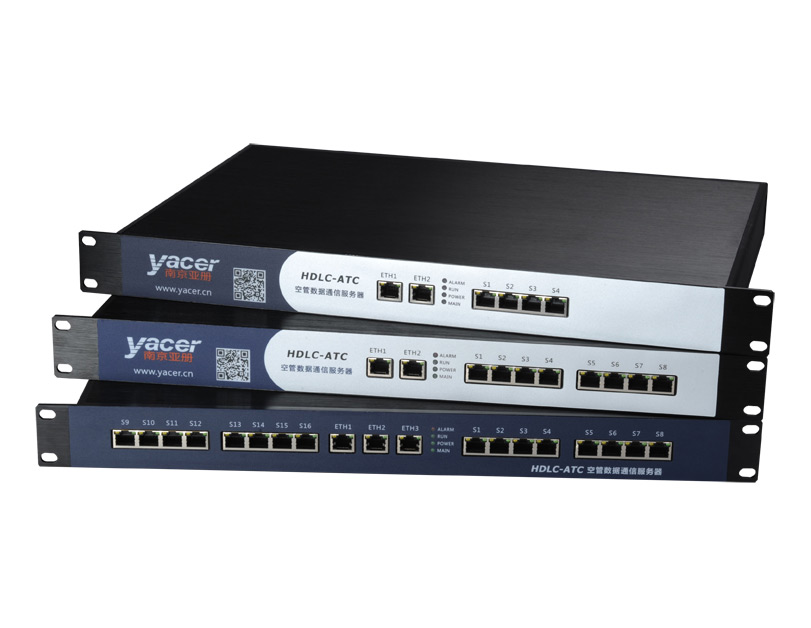

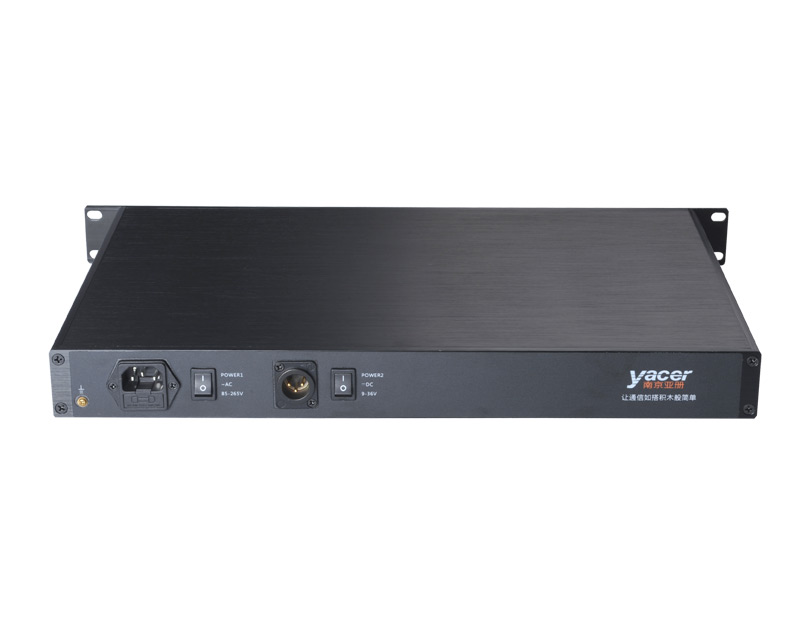

1U, 19-inch standard rack chassis, low power consumption, no fan high reliability design, support dual power redundancy.



Application

  • Serial port to Ethernet

  • Ethernet to serial port

  • Single serial port forwarding to multiple, ATC radar signal splitter

  • Air traffic control primary surveillance radar (PSR), secondary surveillance radar (SSR), ADS-B target reporting lead and output

  • Air Traffic Control (ATC), Air Traffic Management (ATM)

  • ATC radar data record and playback

  • Rack-Mounted application



Specifications

Item

Parameters

Details

Serial Port

Quantity

4, 8, 16 x RJ-45

Working mode

Synchronous HDLC, Asynchronous UART

Interface type

RS-232 full-duplex

Encoding format

NRZ

Baud rate

≤ 250 Kbps

Synchronous clock

General, Master, Slave( external clock )

ESD protection

± 15 KV

Ethernet Interface

Quantity

2, 3 x RJ-45

Rate

10/100 Mbps, supporting MDI / MDIX adaptation

Protocol

TCP/IP

Programming interface

UDP Server, UDP Client

Configuration Management

Configuration tool

yacer-DMS configuration management software

Console interface

Ethernet Interface

Power Requirements

Power redundancy

Dual AC redundancy (AC1 priority)

AC power supply

85 ~ 265VAC

DC power supply

9 ~ 36VDC

Power consumption

< 10 W

Mechanical Characteristics

Dimensions

1U, standard 19-inch rack mounted, fanless design

Weight

3.0 Kg

Operating Environment

Operating temperature

-10 ~ +60℃

Storage temperature

-30 ~ +75℃

Operating humidity

30 ~ 90% RH (no condensation)

Storage humidity

10 ~ 90% RH (no condensation)

Order Information

Product Model

Serial Port

Ethernet Interface

Power Redundancy

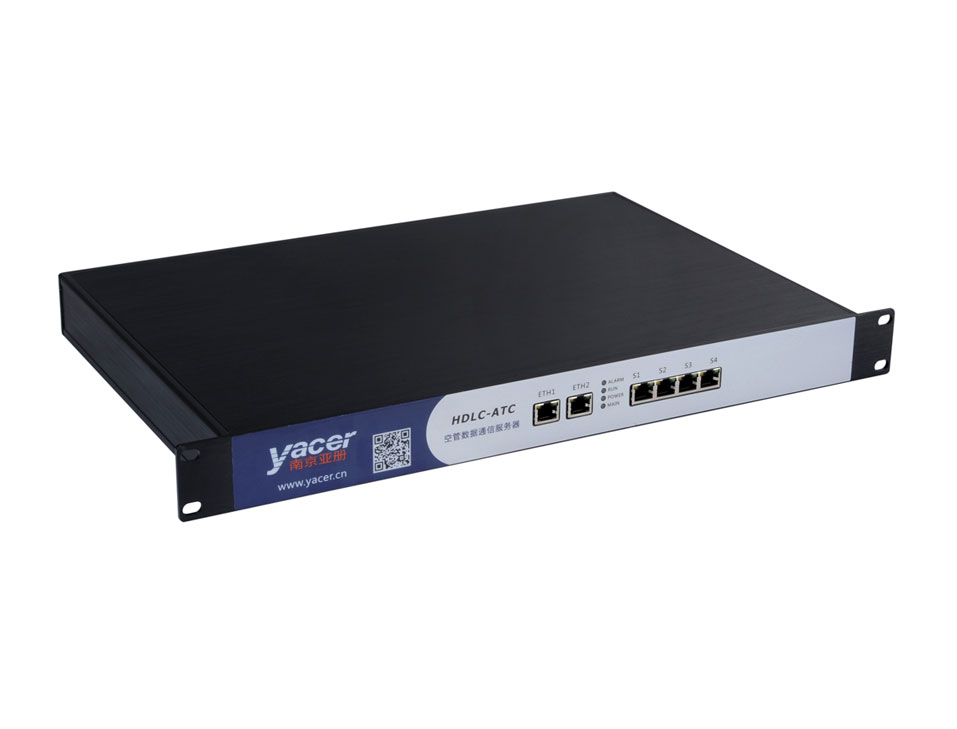

HDLC-ATC-400

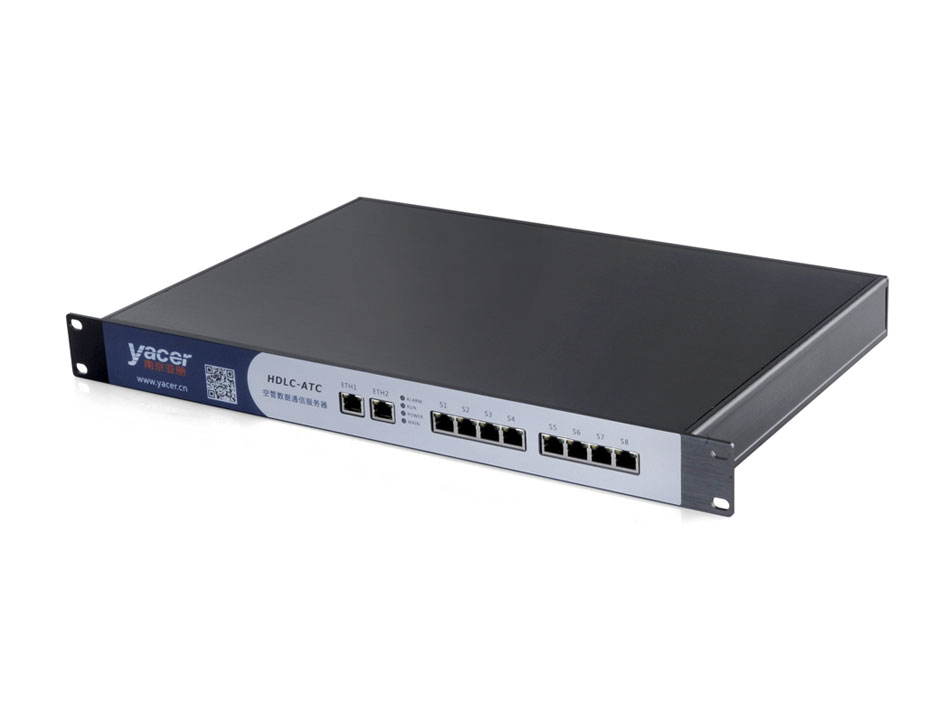

4 x RS-232 synchronous serial port, two of which support asynchronous

2 x 10/100M

Dual AC

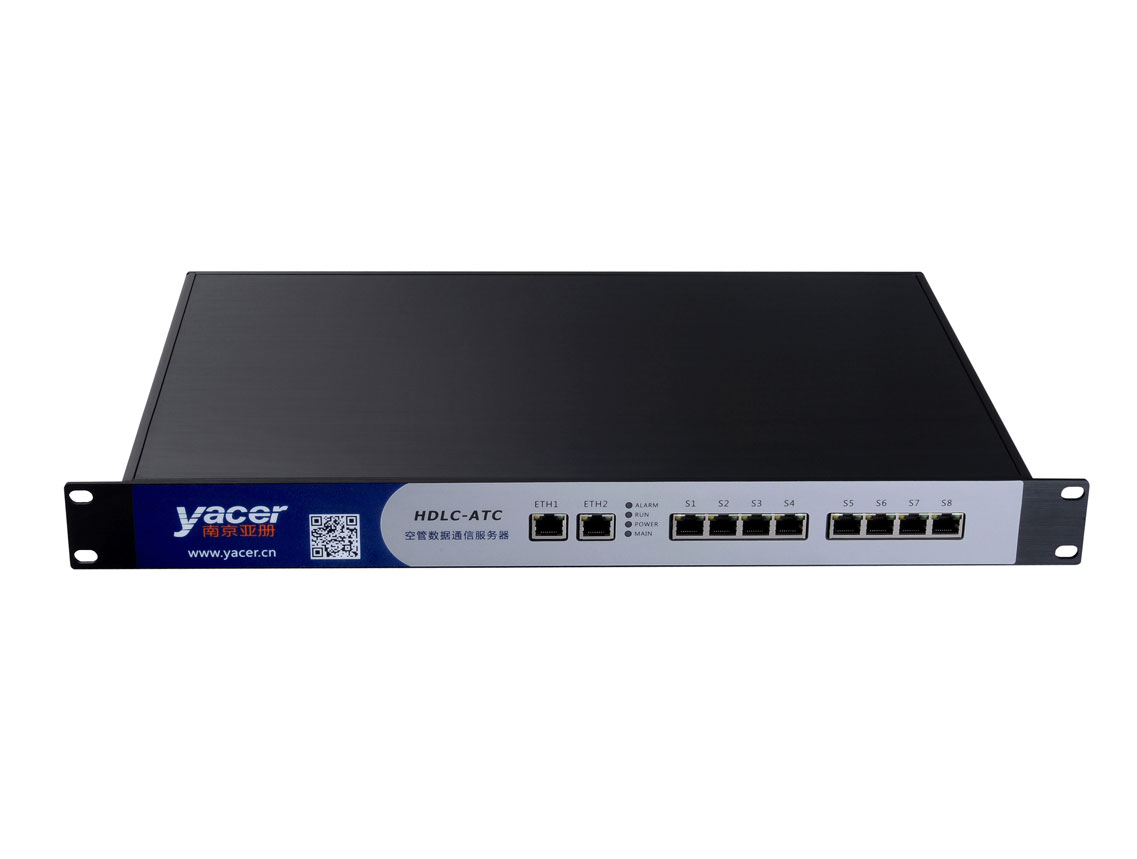

HDLC-ATC-800

8 x RS-232 synchronous serial port, two of which support asynchronous

2 x 10/100M

Dual AC

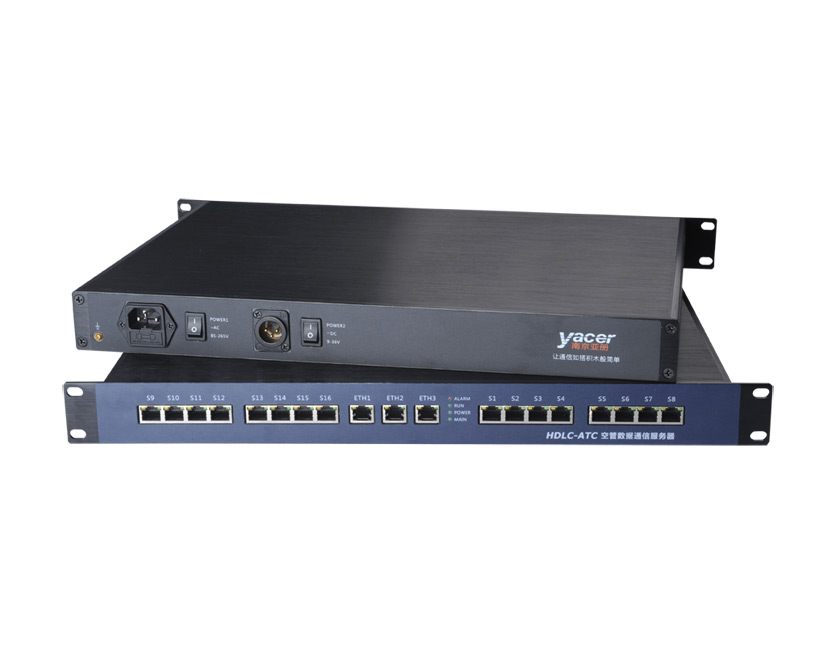

HDLC-ATC-1600

16 x RS-232 synchronous serial port, two of which support asynchronous

3 x 10/100M

Dual AC

Documentation
Tools and software
Reference material
The Selection and Configuration of Synchronization Clock for HDLC Protocol
Synchronous HDLC serial communication, different from ordinary asynchronous communication, the clock signal plays an important role, only the sender and receiver use the same clock, can achieve highly reliable data transmission.
Design and Implementation of HDLC Synchronous Serial Port for ATC Radar
The ATC radar data network uses the HDLC protocol to transmit target data, and the ATC radar and ADS-B equipment must be able to support the HDLC protocol and provide multiple synchronized serial ports for outputting radar data.
Synchronous HDLC Application Based on RS-232 Interface
Synchronous HDLC Application Based on RS-232 Interface
Impact of ADS-B on the ATC radar data network
Due to the advantages of low station construction cost and high data refresh rate, ADS-B receivers have been applied in large scale in ATC system.
Introduction to HDLC Protocol
HDLC protocol, sometimes known as SDLC protocol, is a link layer protocol widely used in industry communications. The HDLC protocol specification is referred to the ISO / IEC 13239 standard document.
