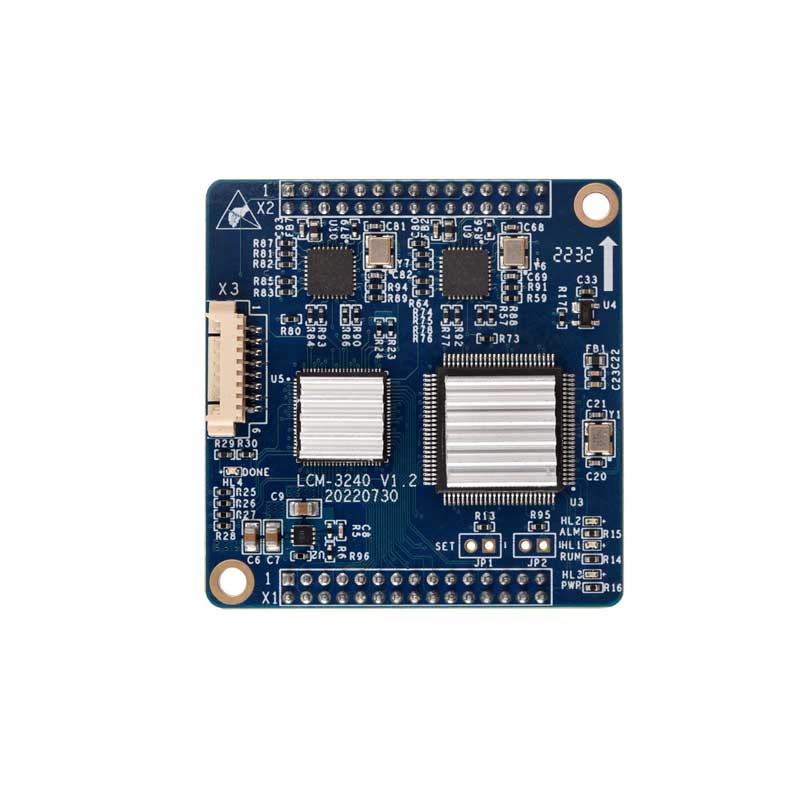

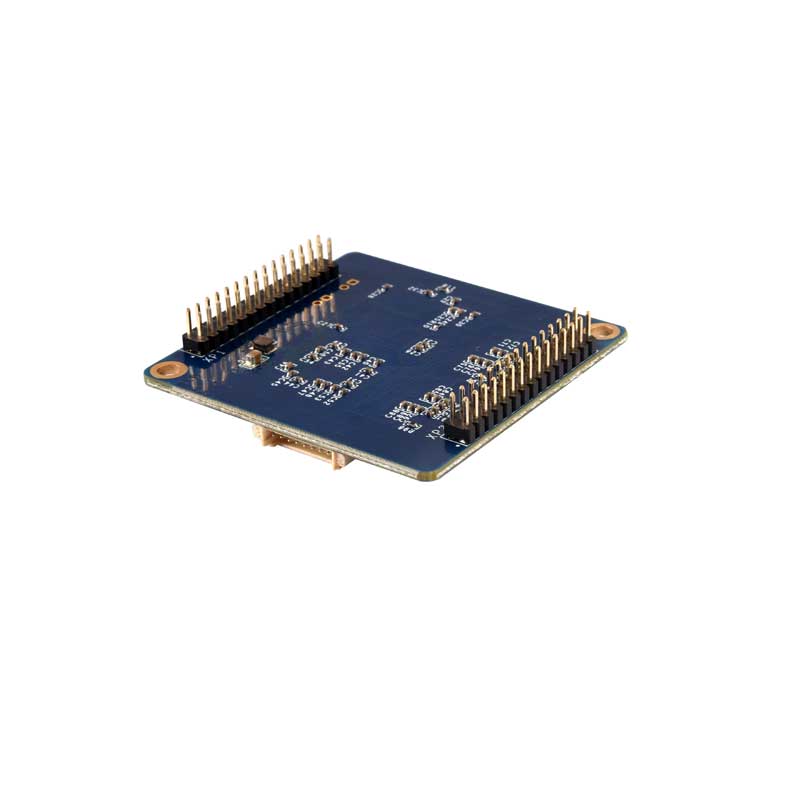

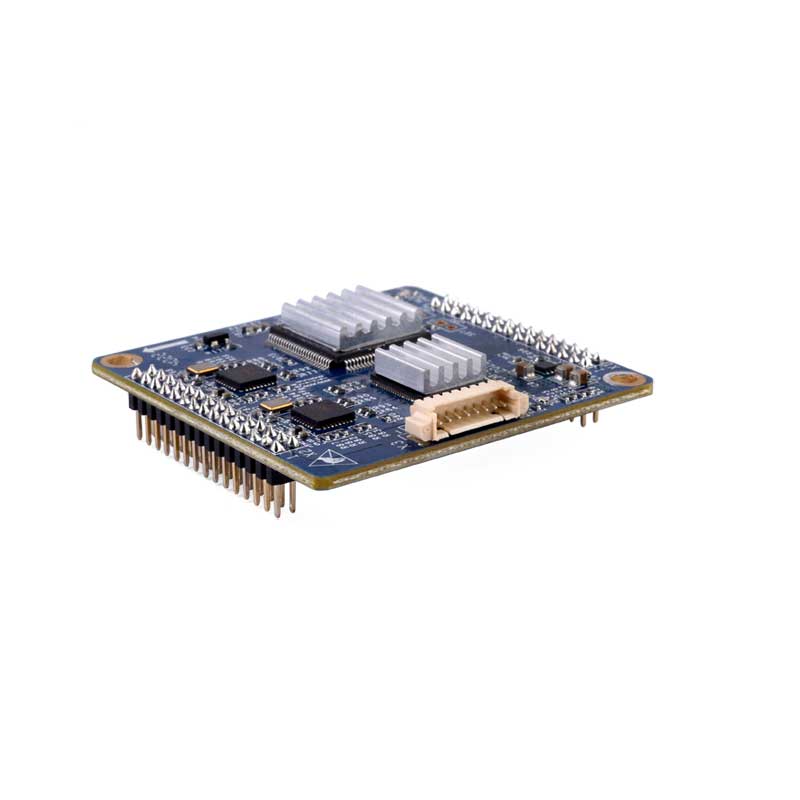

HDLC-LCM Low Power Communication Module

Air Traffic Control (ATC) Train Communication Network Embedded
  • 2x Ethernet 10/100M PHY interface
  • 4x serial port, support synchronous HDLC protocol, asynchronous UART working mode
  • Encoding format support NRZ, NRZI, DBPL, Manchester, differential Manchester
  • Optional 1x CAN bus interface
  • Open and flexible configuration management
  • +3.3V power supply, low power consumption, industrial grade wide temperature
  • 5 x 48 mm tiny size, 2.0 mm pin connector
  • Documentation
    •  Contact
    Overview

    Introduction

    The Yacer HDLC-LCM embedded communication module provides four synchronous / asynchronous serial ports and two 10/100M Ethernet interfaces to realize protocol conversion between HDLC, UART and Ethernet.

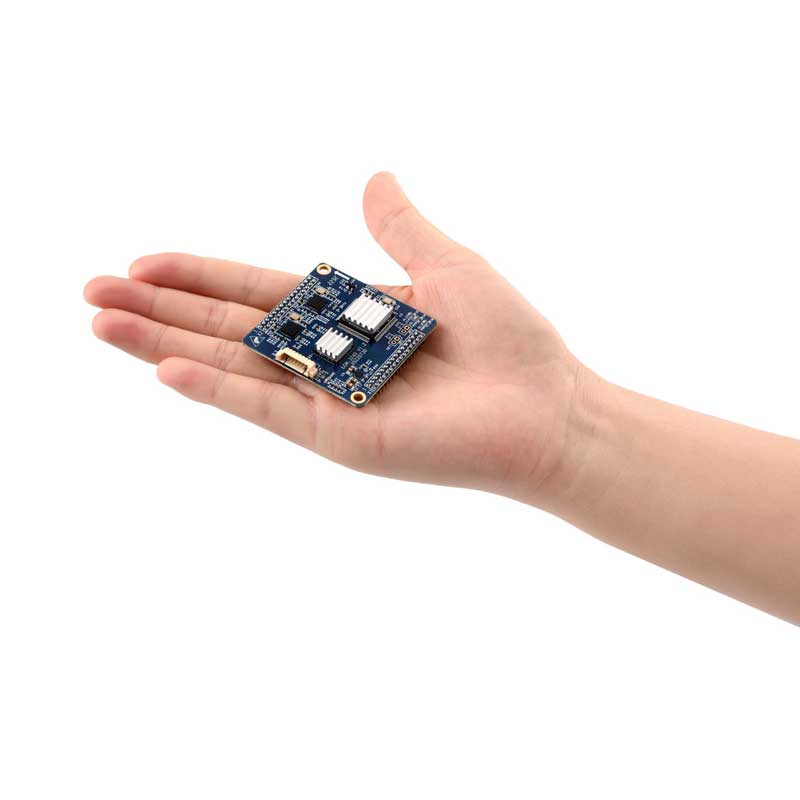

    46.5 x 48 mm tiny size, 2.0mm pin interface. +3.3V power supply, industrial grade wide temperature, suitable for embedded applications.



    Applications

      • Serial to Ethernet

      • Ethernet to Serial

      • Synchronous serial port, asynchronous serial port conversion

      • HDLC, UDP protocol conversion

      • HDLC, UART conversion

      • Aviation, aerospace data communication

      • Train Control and Management System (TCMS)

      • Train Communication Network (TCN)

      • Air Traffic Control Automation System (ATC), Air Traffic Management (ATM)

      • Embedded Application and Development



    Specifications

    Item

    Parameters

    Details

    Synchronous / Asynchronous Serial Port

    Quantity

    4

    Level standard

    3.3V LVCMOS

    Working mode

    Synchronous HDLC, Asynchronous UART

    Encoding format

    NRZ, NRZI, DBPL (Differential Bi-Phase Level),

    Manchester, Differential Manchester

    Baud rate

    Synchronous NRZ ≤ 12 Mbps, Synchronous Other ≤ 6 Mbps, Asynchronous ≤ 1 Mbps

    Synchronous clock

    General, Master, Slave( external clock )

    Ethernet Interface

    Quantity

    2 x 10/100M PHY

    Rate

    10/100 Mbps, supporting MDI / MDIX adaptation

    Protocol

    TCP/IP

    Programming interface

    UDP Server, UDP Client

    Support unicast/multicast/broadcast

    Configuration Management

    Configuration interface

    Dedicated DMS-UART interface (with the help of yacer DMS-UART-8P configuration cable)

    Ethernet port, serial port

    Configuration tool

    yacer-DMS configuration management software

    Power Requirements

    Input voltage

    +3.3 VDC

    Power consumption

    < 2 W

    Mechanical Characteristics

    Connector

    2x 30 PIN double row pin connectors (2*15) with 2.0mm pitch

    Dimensions

    46.5 x 48 mm

    Weight

    25 g

    Operating Environment

    Operating temperature

    -40 ~ +85℃

    Storage temperature

    -40 ~ +85℃

    Operating humidity

    5 ~ 95% RH (no condensation)
    Order Information

    Product Model

    Serial Port

    CAN

    Ethernet

    S1

    S2

    S3

    S4

    HDLC-LCM-200

    Synchronous

    Synchronous

    Asynchronous

    Asynchronous

    0

    2 x 10/100 PHY

    HDLC-LCM-400

    Synchronous

    Synchronous

    Synchronous / Asynchronous

    Synchronous / Asynchronous

    0

    2 x 10/100 PHY

    HDLC-LCM-200C

    Synchronous

    Synchronous

    Asynchronous

    Asynchronous

    1

    2 x 10/100 PHY

    HDLC-LCM-400C

    Synchronous

    Synchronous

    Synchronous / Asynchronous

    Synchronous / Asynchronous

    1

    2 x 10/100 PHY



    Documentation
    HDLC-LCM Datesheet
    HDLC-LCM Low Power Communication Module Datasheet
    3D-Models-LCM3240
    Tools and software
    yacer-DMS Configuration Management Software
    Yacer HDLC, MVB, TRDP, SDLC communication products configuration management software.
    easy-UART Debugger
    Serial to UDP protocol debugging tool software.
    easy-HDLC Debugger
    Free tool software for debugging synchronous HDLC protocol to UDP.
    Reference material
    The Selection and Configuration of Synchronization Clock for HDLC Protocol
    Synchronous HDLC serial communication, different from ordinary asynchronous communication, the clock signal plays an important role, only the sender and receiver use the same clock, can achieve highly reliable data transmission.
    Design and Implementation of HDLC Synchronous Serial Port for ATC Radar
    The ATC radar data network uses the HDLC protocol to transmit target data, and the ATC radar and ADS-B equipment must be able to support the HDLC protocol and provide multiple synchronized serial ports for outputting radar data.
    Synchronous HDLC Communication Based on RS-422 Interface
    Synchronous HDLC Communication Based on RS-422 Interface
    HDLC communication based on RS-485 bus
    HDLC communication based on RS-485 bus
    Introduction to Road Traffic Signal System
    The road traffic signal controller is a device that can change the order of road traffic signals, adjust the timing and control the operation of road traffic lights.
    Introduction to HDLC Protocol
    HDLC protocol, sometimes known as SDLC protocol, is a link layer protocol widely used in industry communications. The HDLC protocol specification is referred to the ISO / IEC 13239 standard document.
    Train HDLC synchronous communication working mode
    Train HDLC synchronous communication working mode
    Air Traffic Control (ATC) Secondary Surveillance Radar (SSR) DTE and DCE synchronous serial port definition
    Synchronous Communication and Asynchronous Communication
    Synchronous Communication and Asynchronous Communication
    Introduction to Serial Interface and Parallel Interface
    Introduction to Serial Interface and Parallel Interface
    Introduction to the RS-232 Serial Port
    Introduction to the RS-232 Serial Port
    RS-485 Serial Port
    RS-485 Serial Port
    Definitions and Differences among Simplex, Half-duplex, and Full-duplex
    Definitions and Differences among Simplex, Half-duplex, and Full-duplex
