Overview

Introduction

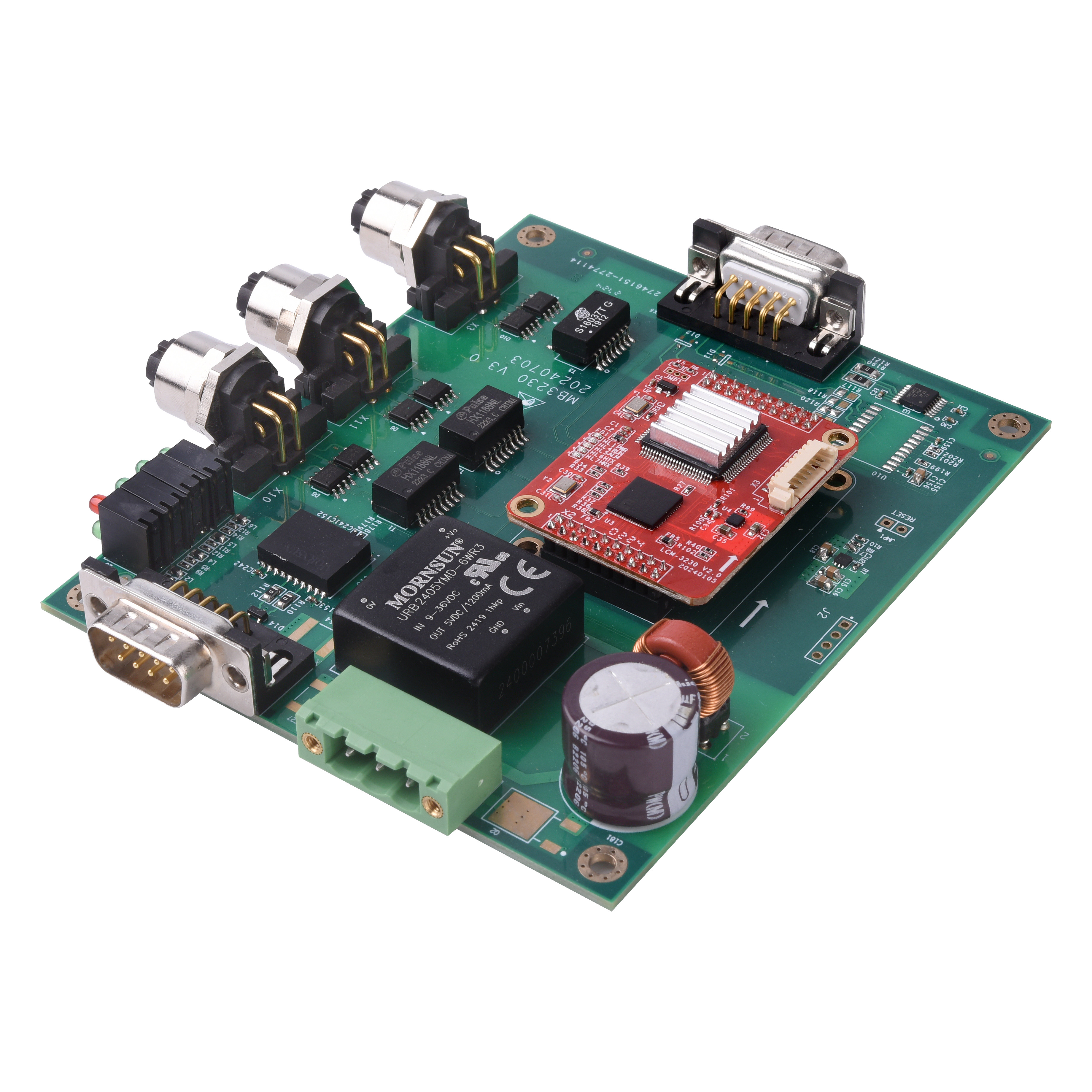

The Yacer TRDP-ETH dual redundant TRDP Ethernet card, provides two TRDP redundant 100M Ethernet interfaces, one TCP/IP Ethernet interface, one serial port and one CAN bus interface to implement protocol conversion between TRDP and UDP, serial port or CAN bus.

Applications

• Protocol conversion between TRDP and UDP

• Protocol conversion between TRDP and serial port

• Protocol conversion between TRDP and CAN bus

• Train Control and Management System (TCMS)

• Train Communication Network (TCN)

• Embedded development and application

Features

• Two 100M full-duplex Ethernet interfaces, support TRDP protocol;

• One 100M adaptive Ethernet interface, support TCP/IP protocol;

• X6 extended interface: optional RS-232, RS-422 or RS-485 serial port;

• X4 extended interface: CAN bus interface;

• Supporting TRDP PD acquisition function

• Perfect isolation protection, Industrial wide temperature.

Specifications

Item	Parameters	Details
TRDP Ethernet Interface	Connector	2 x M12 with D-coding
	Rate	100 Mbps Full-duplex
	Network Protocol	TRDP
	Isolation	1.5 kVrms
TCP/IP Ethernet Interface	Connector	1 x M12 with D-coding
	Rate	100 Mbps Adaptive
	Network Protocol	TCP/IP
	Isolation	1.5 kVrms
Serial Port	Connector	1 x male D-Sub 9 (X6)
	Interface type (Three-in-one)	• RS-232 full-duplex serial port • RS-422 full-duplex isolated serial port • RS-485 half-duplex isolated serial port
	Baud rate	≤ 921.6 kbps
	Isolation	2.5 kVrms
CAN Interface	Connector	1 x male D-Sub 9 (X4)
	Interface type	CAN bus isolation interface (CAN 2.0A, CAN 2.0B, ISO 11898)
	Baud rate	50 Kbps ~ 1 Mbps
	Isolation	2.5 kVrms
Configuration Management	Configuration tool	yacer-DMS configuration management software
Configuration Management	Console interface	Ethernet Interface Dedicated DMS-UART interface ( with Yacer ' s DMS-UART-8P configuration cable )
Power Requirements	Power Supply	LV: Nominal 24V, tolerance 9 ~ 36VDC MV: Nominal 36V, 48V, tolerance 18 ~ 75VDC HV: Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC
	Isolation	>1.5 kVrms, Anti-reverse protection
	Power consumption	< 3 W
	Connector	3 pin connector with 5mm pitch
Mechanical Characteristics	Dimensions	120 x 100 mm
Mechanical Characteristics	Weight	< 200g
Operating Environment	Operating temperature	-40 ~ +85℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)

Order Information

TRDP-ETH-32	3	-LV
Extended Interface X6 Definition：
• None	0
• Full-duplex RS-232 serial port	3
• Full-duplex RS-422 serial port	4
• Half-duplex RS-485 serial port	5
Supply voltage range:
• Nominal 24V, tolerance 9 ~ 36VDC		-LV
• Nominal 36V, 48V, tolerance 18 ~ 75VDC		-MV
• Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC		-HV

Documentation

TRDP-ETH Datasheet

TRDP-ETH Dual Redundant TRDP Ethernet Card Datasheet

Tools and software

yacer-DMS Configuration Management Software

Carry out operation monitoring, configuration management, diagnosis test and version update for devices.

TRDP-Analyzer Debugger

TRDP-Analyzer is a very useful free tool software to achieve TRDP PD data sending and receiving test.

TRDP-Serial Debugger

TRDP-Serial Debugging Assistant is a very useful free tool software for debugging TRDP-UART conversion devices.

TRDP-UDP Debugger

TRDP-UDP Debugging Assistant is a very useful free tool software for debugging TRDP-UDP protocol conversion devices.

TRDP-Acquisition Software

TRDP data acquisition and display software
