Overview

Introduction

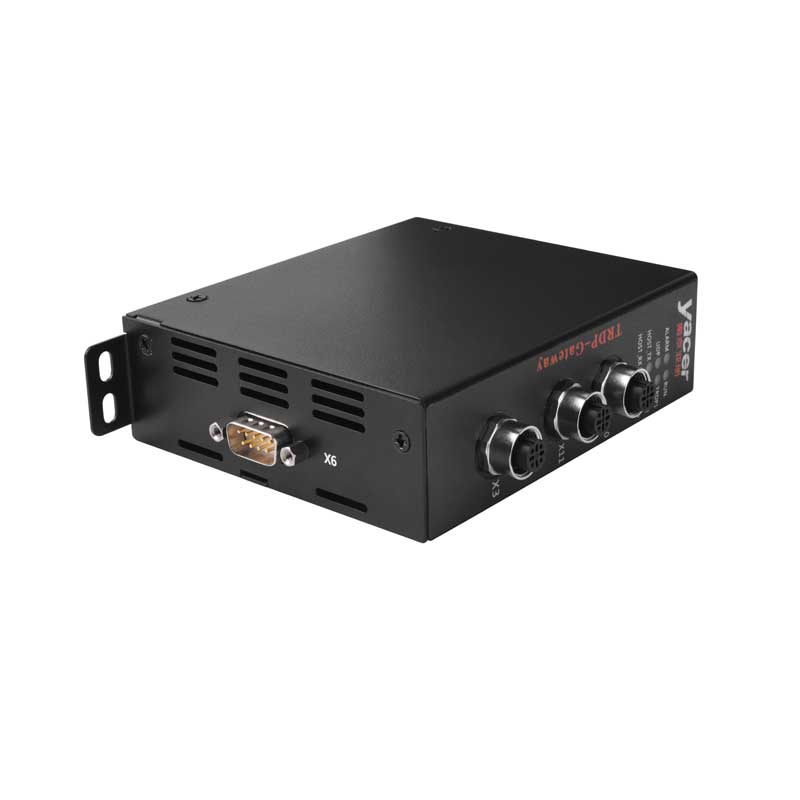

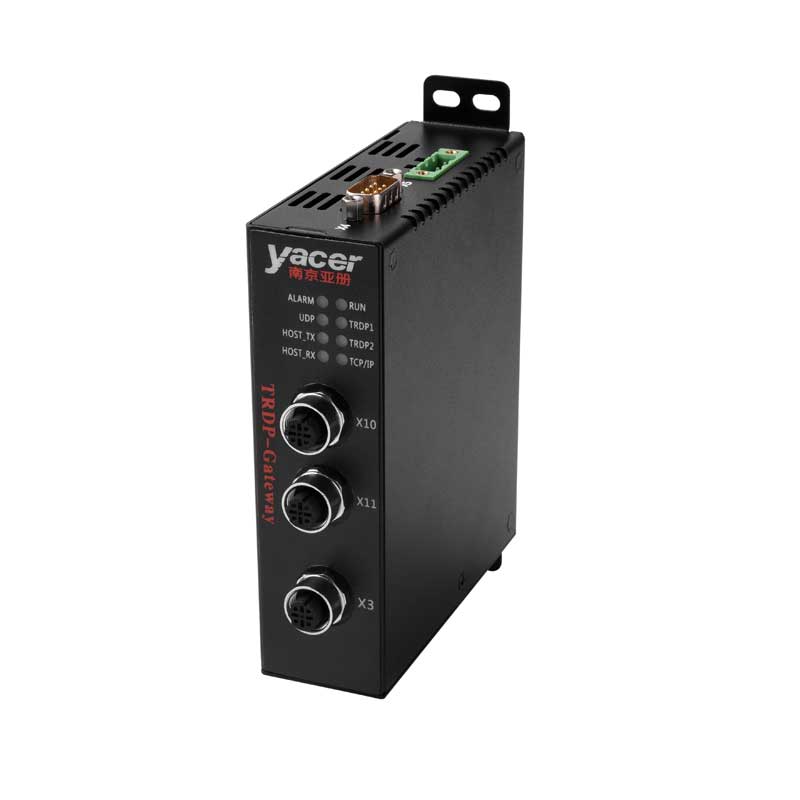

The Yacer TRDP-Gateway train protocol conversion gateway, provides two TRDP redundant 100M Ethernet interfaces, one TCP/IP Ethernet interface, one serial port and one CAN bus interface to implement protocol conversion between TRDP and UDP, serial port or CAN bus.

Industrial wide temperature, complete isolation and protection, compact size, suitable for train communication network.

Applications

• Protocol conversion between TRDP and UDP

• Protocol conversion between TRDP and serial port

• Protocol conversion between TRDP and CAN bus

• Train Control and Management System (TCMS)

• Train Communication Network (TCN)

• Embedded development and application

Specifications

Item	Parameters	Details
TRDP Ethernet Interface	Connector	2 x M12 with D-coding
	Rate	100 Mbps Full-duplex
	Network Protocol	TRDP
	Isolation	1.5 kVrms
TCP/IP Ethernet Interface	Connector	1 x M12 with D-coding
	Rate	100 Mbps Adaptive
	Network Protocol	TCP/IP
	Isolation	1.5 kVrms

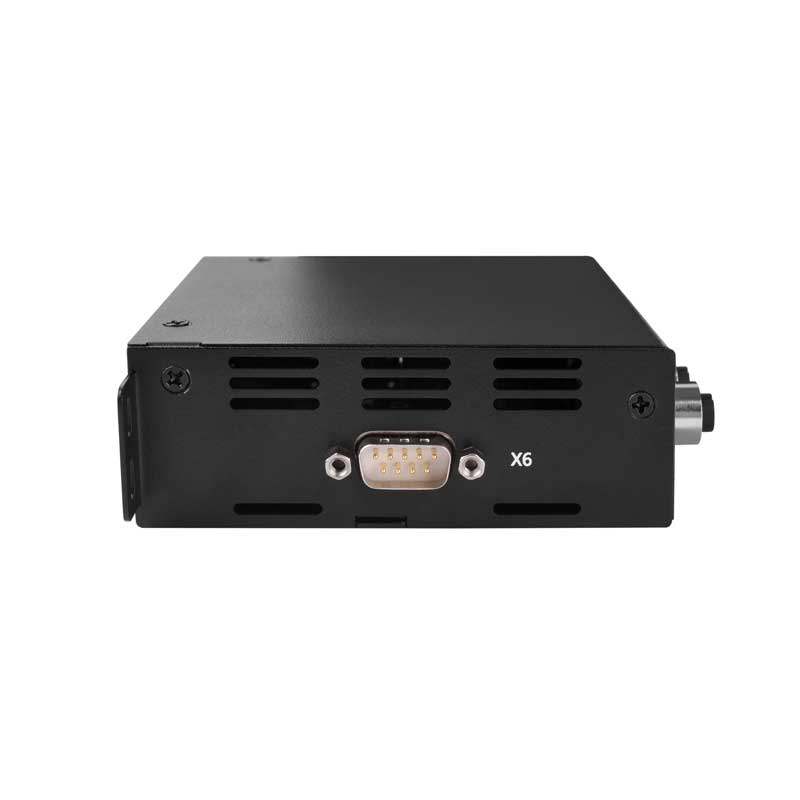

Serial Port	Connector	1 x male D-Sub 9 (X6)
	Interface type (Three-in-one)	• RS-232 full-duplex serial port • RS-422 full-duplex isolated serial port • RS-485 half-duplex isolated serial port
	Baud rate	≤ 921.6 kbps
	Isolation	2.5 kVrms

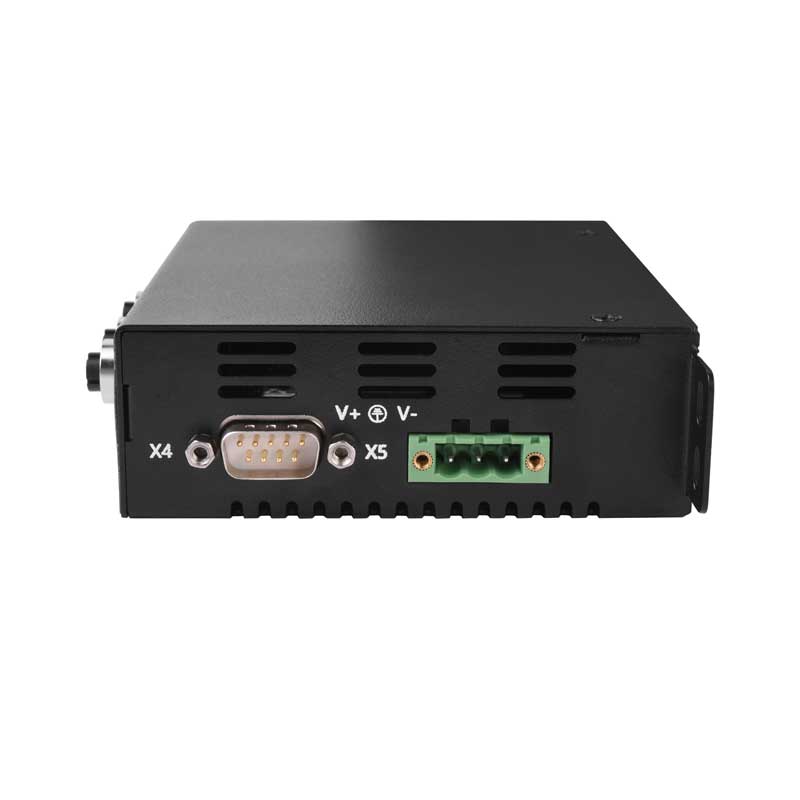

CAN Interface	Connector	1 x male D-Sub 9 (X4)
	Interface type	CAN bus isolation interface (CAN 2.0A, CAN 2.0B, ISO 11898)
	Baud rate	50 Kbps ~ 1 Mbps
	Isolation	2.5 kVrms
Configuration Management	Configuration tool	yacer-DMS configuration management software
Configuration Management	Console interface	Ethernet Interface
Power Requirements	Power Supply	LV: Nominal 24V, tolerance 9 ~ 36VDC MV: Nominal 36V, 48V, tolerance 18 ~ 75VDC HV: Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC
	Isolation	>1.5 kVrms, Anti-reverse protection
	Power consumption	< 3 W
	Connector	3 pin connector with 5.08mm pitch
Mechanical Characteristics	Dimensions	H x W x D: 124 mm x 36 mm x 104 mm
Mechanical Characteristics	Weight	500g
Operating Environment	Operating temperature	-40 ~ +70℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)

Order Information

TRDP-Gateway-32	3	-LV
Extended Interface X6 Definition：
• None	0
• Full-duplex RS-232 serial port	3
• Full-duplex RS-422 serial port	4
• Half-duplex RS-485 serial port	5
Supply voltage range:
• Nominal 24V, tolerance 9 ~ 36VDC		-LV
• Nominal 36V, 48V, tolerance 18 ~ 75VDC		-MV
• Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC		-HV

Documentation

TRDP-Gateway Datasheet

TRDP-Gateway Protocol Conversion Gateway Datasheet

Tools and software

yacer-DMS Configuration Management Software

Carry out operation monitoring, configuration management, diagnosis test and version update for devices.

TRDP-Analyzer Debugger

TRDP-Analyzer is a very useful free tool software to achieve TRDP PD data sending and receiving test.

TRDP-Serial Debugger

TRDP-Serial Debugging Assistant is a very useful free tool software for debugging TRDP-UART conversion devices.

TRDP-UDP Debugger

TRDP-UDP Debugging Assistant is a very useful free tool software for debugging TRDP-UDP protocol conversion devices.

TRDP-Acquisition Software

TRDP data acquisition and display software
