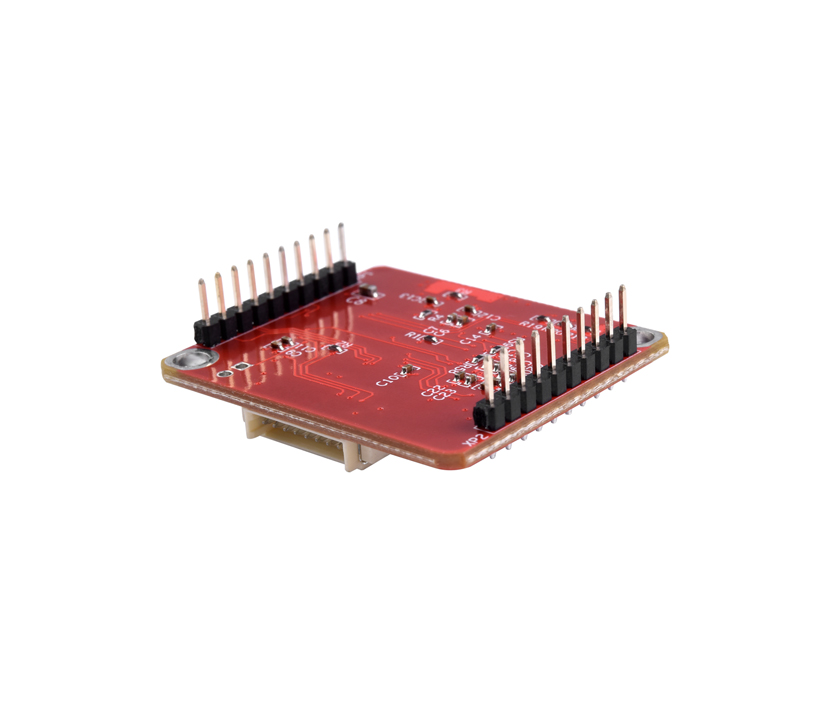

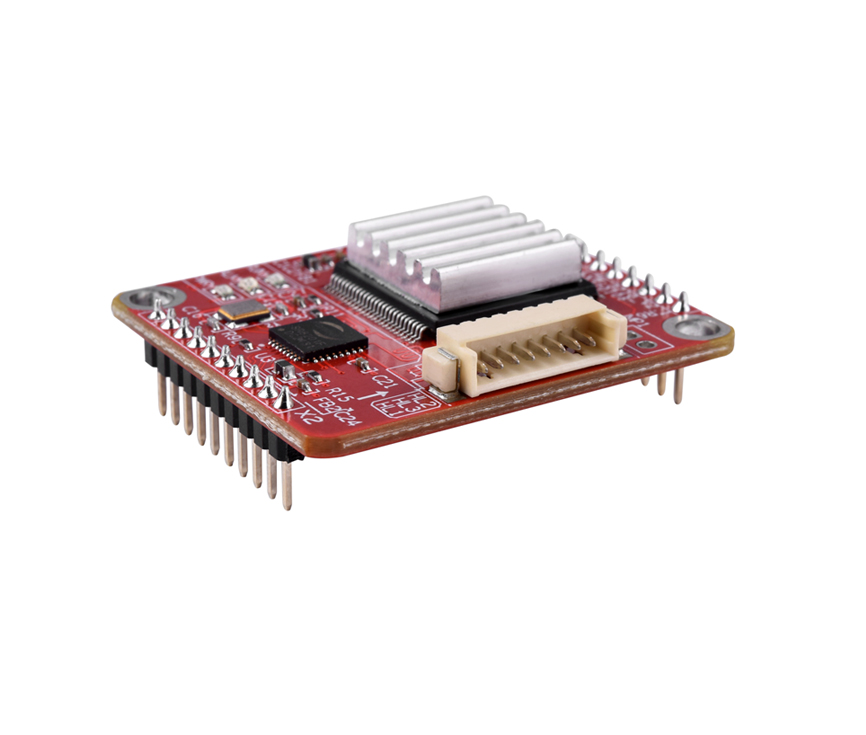

TRDP-CAN-UART Micro TRDP Embedded Module

IEC61375 Long-term Supply Embedded

1x 100M Ethernet PHY, supporting TRDP protocol
1x UART for TRDP-to-serial port
1x CAN interface for TRDP-to-CAN bus
Compliant with IEC 61375 specification standards

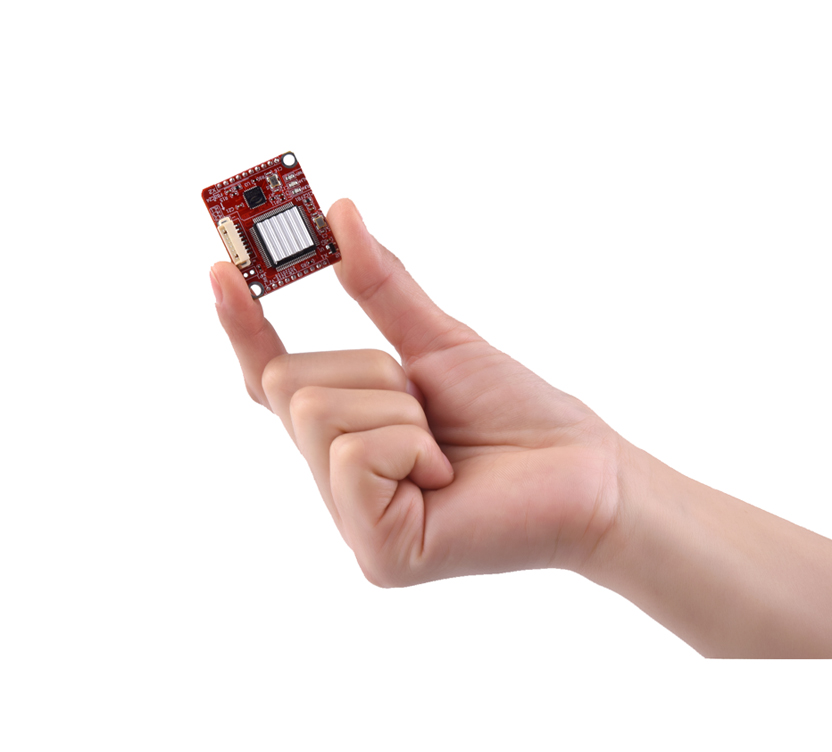

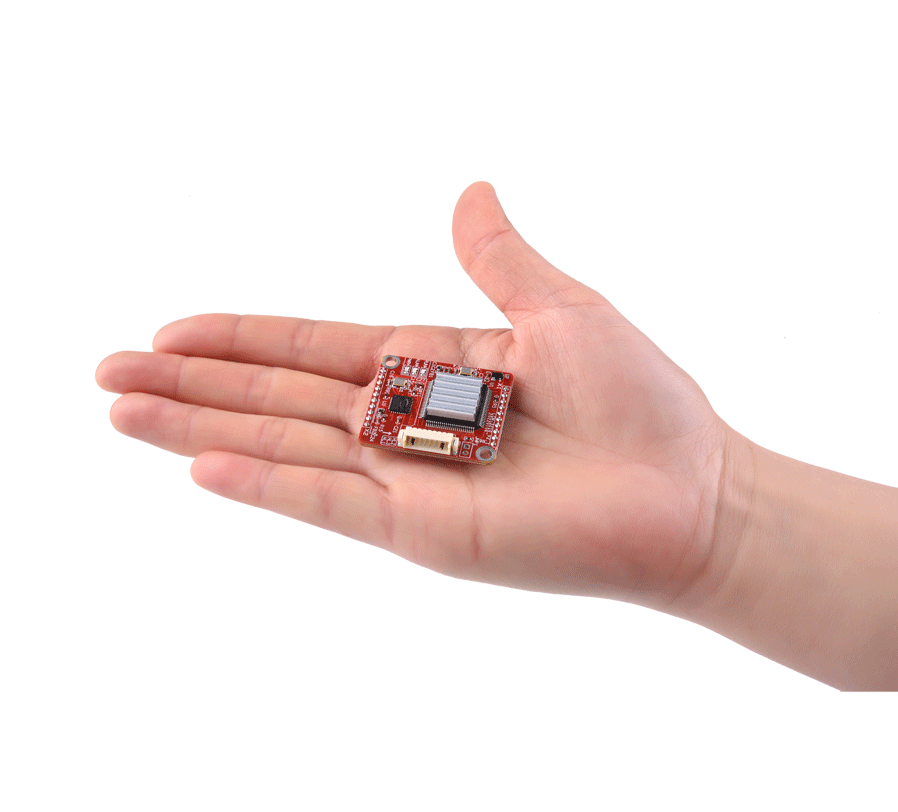

30x35 mm micro size, 2.0mm pin interface
Software,hardware design reference and evaluation board are provided

Overview
Specifications
Order Information
Documentation
Tools and software
Reference material

Overview

Introduction

The Yacer TRDP-CAN-UART micro embedded module provides 1x TRDP Ethernet PHY interface, 1x UART serial port and 1x CAN interface. It realizes protocol conversion between TRDP protocol and serial port, CAN bus.

30x35 mm micro size, 2.0mm pin interface. +3.3V power supply, low power consumption. Industrial wide temperature, suitable for embedded applications.

Applications

• Protocol conversion between TRDP and UART

• Bus conversion between TRDP and CAN bus interface

• Train Control and Management System (TCMS)

• Train Communication Network (TCN)

• Embedded application and development

Specifications

Item	Parameters	Details
Ethernet Interface	Number	1x 100M PHY
	Rate	100 Mbps
	Protocol	TRDP Protocol
UART Interface	Level standard	1x 3.3V LVCMOS/TTL
	Duplex type	Full-duplex, Half-duplex
	Baud rate	≤ 921.6 Kbps
CAN Interface	Level standard	1x 3.3V LVCMOS/TTL
	Working mode	CAN 2.0A, CAN 2.0B, ISO 11898
	Baud rate	≤ 1 Mbps
Power Requirements	Power Supply	+3.3 VDC
Power Requirements	Power consumption	< 1W
Mechanical Characteristics	Connector	2.0 mm pin connector
	Dimensions	30 mm x 35 mm
	Weight	< 15 g
Operating Environment	Operating temperature	-40 ~ +85℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)

Order Information

Model	Ethernet Interface	Host Interface
TRDP-CU-220	1x 100M PHY	1x UART + 1x CAN

Documentation

TRDP-CAN-UART Datasheet

TRDP-CAN-UART Micro TRDP Embedded Module Datasheet

3D-Models-TRDP-CU

Tools and software

yacer-DMS Configuration Management Software

Yacer communication product configuration management software

TRDP-Analyzer Debugger

TRDP PD data sending and receiving test tool

TRDP-Serial Debugger

TRDP-UART conversion equipment debugging tool
