Overview

Introduction

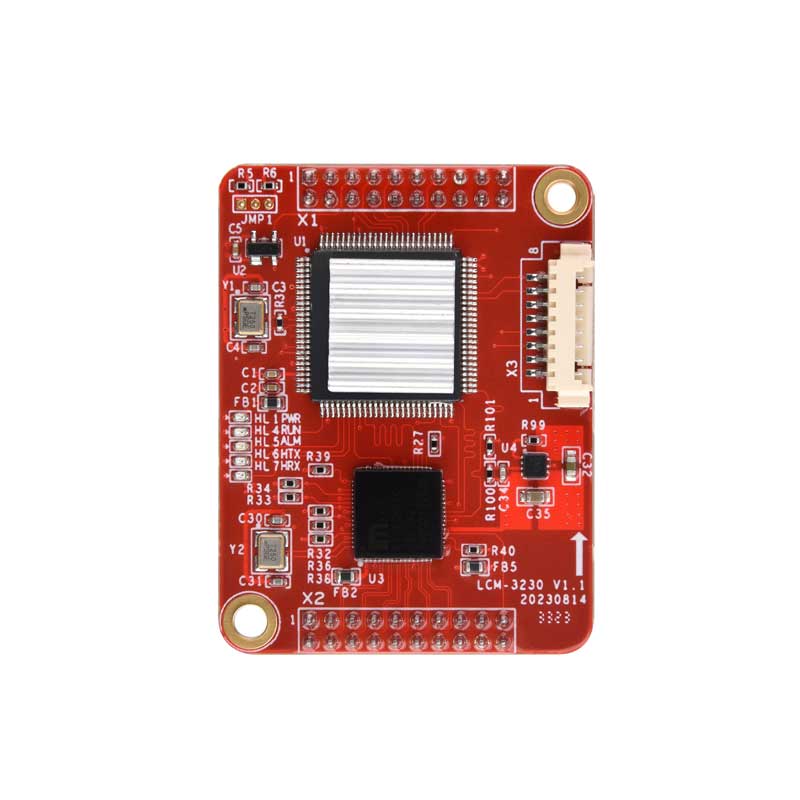

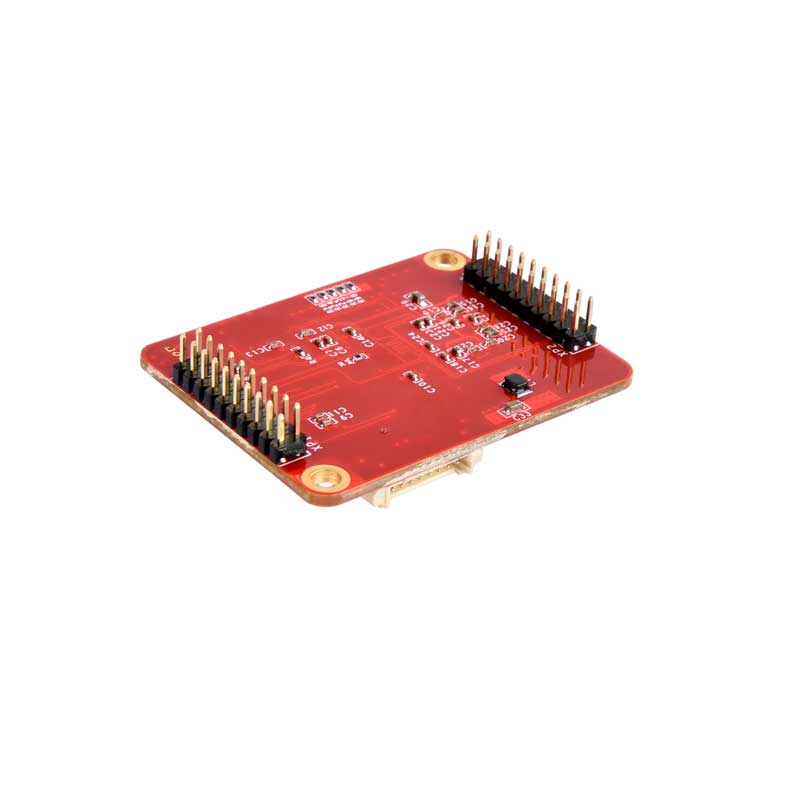

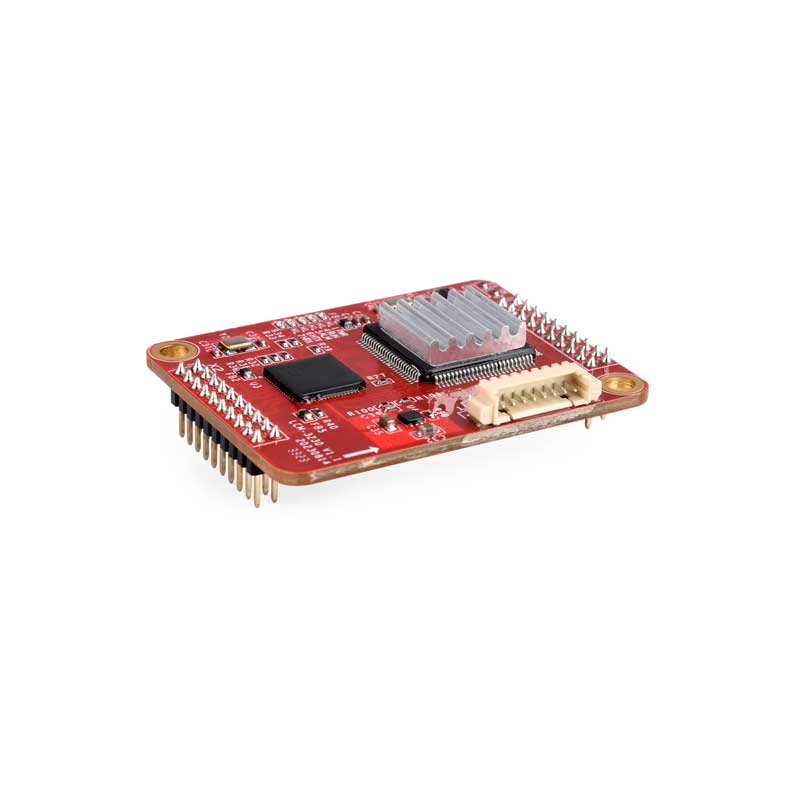

The Yacer dual redundant TRDP embedded module, provides two TRDP redundant 100M Ethernet interfaces, one TCP/IP Ethernet interface, one UART interface and one CAN interface to implement protocol conversion between TRDP and UDP, serial port or CAN bus.

35x45mm small size, 2.0mm pin connector. +3.3V power supply, low power consumption. Industrial grade wide temperature, suitable for embedded applications.

Applications

• Protocol conversion between TRDP and UDP

• Protocol conversion between TRDP and serial port

• Protocol conversion between TRDP and CAN interface

• Train Control and Management System (TCMS)

• Train Communication Network (TCN)

• Embedded development and application

Specifications

Item	Parameters	Details
TRDP Ethernet Interface	Number	2 x 100M PHY
	Rate	100 Mbps full-duplex
	Protocol	TRDP
TCP/IP Ethernet Interface	Number	1 x 100M PHY
	Rate	100 Mbps adaptive
	Protocol	TCP/IP
UART Interface	Level Standard	3.3V LVCMOS
	Duplex Mode	Full-duplex
	Baud Rate	≤ 921.6 Kbps
CAN Interface	Level Standard	3.3V LVCMOS
	Working Mode	CAN 2.0A、CAN2.0B，ISO 11898
	Baud Rate	≤ 1 Mbps
Configuration Management	Configuration Tool	yacer-DMS configuration management software
Configuration Management	Console Interface	Ethernet Interface Dedicated DMS-UART interface ( with Yacer ' s DMS-UART-8P configuration cable )
Power Requirements	Input Voltage	+3.3 VDC
Power Requirements	Power Consumption	< 2 W
Mechanical Characteristics	Dimensions	35 x 45 mm
Mechanical Characteristics	Weight	25g
Operating Environment	Operating temperature	-40 ~ +85℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)

Order Information

Product Model	Ethernet Interface	Serial Port	CAN
TRDP-UDP-320	3 x 10/100M PHY	1 x UART	1 x CAN

Documentation

TRDP-UDP Datasheet

TRDP-UDP Dual Redundant TRDP Embedded Module Datasheet

Tools and software

yacer-DMS Configuration Management Software

Carry out operation monitoring, configuration management, diagnosis test and version update for devices.

TRDP-Analyzer Debugger

TRDP-Analyzer is a very useful free tool software to achieve TRDP PD data sending and receiving test.

TRDP-Serial Debugger

TRDP-Serial Debugging Assistant is a very useful free tool software for debugging TRDP-UART conversion devices.

TRDP-UDP Debugger

TRDP-UDP Debugging Assistant is a very useful free tool software for debugging TRDP-UDP protocol conversion devices.

TRDP-Acquisition Software

TRDP data acquisition and display software
